Model: AWT 3016F

Wet Concrete Spraying

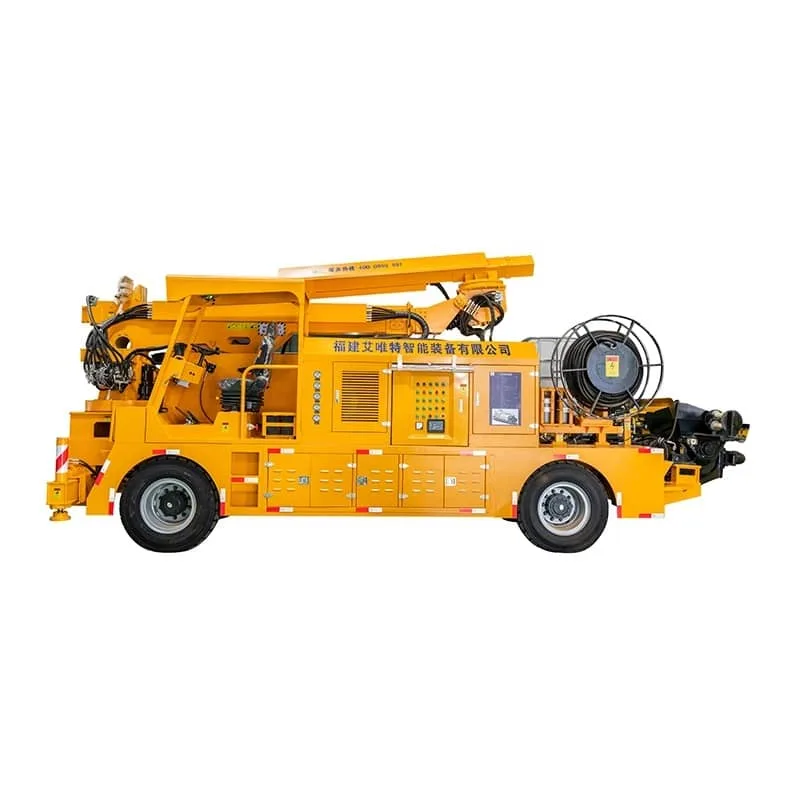

The AWT3016 is a high-performance shotcrete spraying machine engineered for efficient and precise concrete application in challenging underground environments. Built with robust components and advanced control systems, this machine delivers reliable performance and flexible operation for a wide range of construction applications.

92kW YUNNE diesel

16m H /30m W /15m Spray Range

8.0 MPa

1500L coagulant

awt3016

Download the full catalog to explore models and options.

Technology Highlights

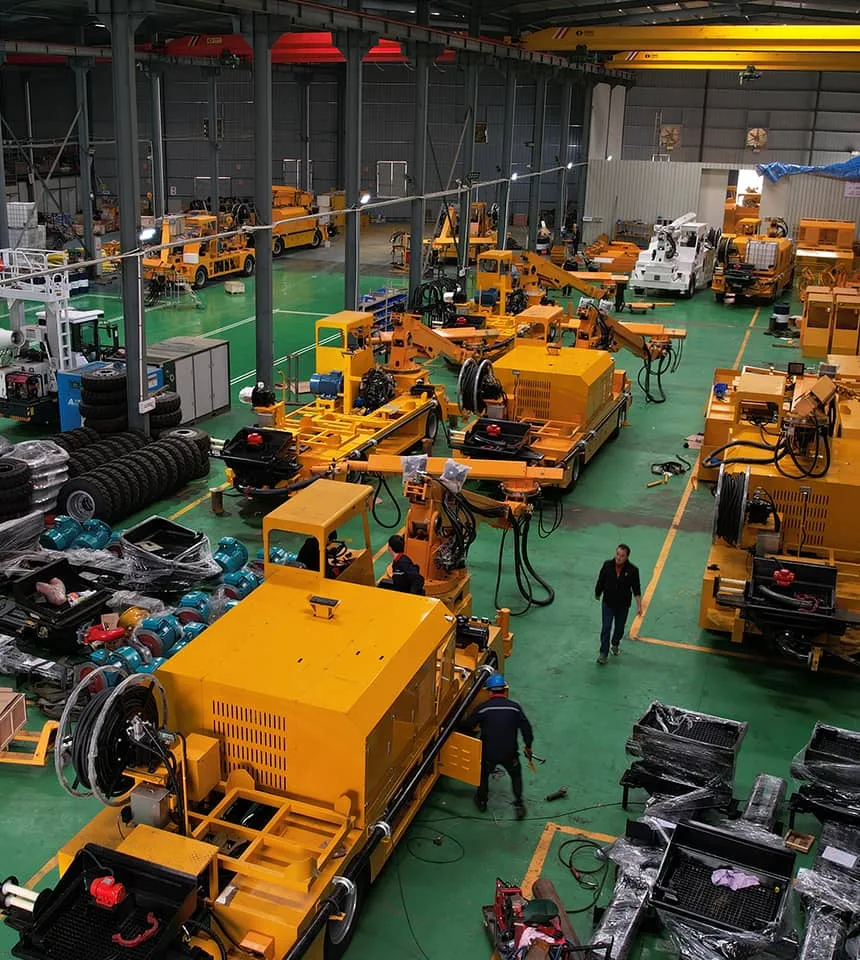

underground drill rig factories





Specification
Value
Climbing ability40% (22°)
Weight17t
Maximum conveying pressure8MPa
Aggregate size16mm
EngineYUNNE brand output power: 92KW/2400rpm

Your Content Goes Here

Cost-Effective & Reliable: Stable performance with excellent value for long-term use.
Flexible Boom Design: Two-stage telescopic and slewing boom provides full coverage with no blind spots.
Precise Hydraulic Control: Smooth, responsive load-sensing control ensures high spraying quality.
Strong Mobility: 4WD and 4-wheel steering chassis for excellent passability underground.
Efficient Pumping System: Low pumping pressure with wide material adaptability.
Large Accelerator Capacity: 1000 L + 500 L dual tanks support continuous large-scale spraying.

Main Technical Parameters
Chassis system
Internal combustion-hydraulic torque converter transmissionFour-wheel drive, four-wheel steering
EngineYUNNE brand output power: 92KW/2400rpm
Transmission systemHydraulic transmission system
Travel speedLow speed gear 0-5km/h, high speed gear 0-15km/h
Climbing ability40% (22°)
Minimum Ground Clearance400mm
Suspension Swing Angle±10° enables the chassis better adapt to uneven road surfaces
SteeringHydraulic four-wheel steering, with diagonal and figure eight travel functions
Minimum Turning RadiusInside 3500mm, outside 7300mm
Weight17t
Overall Dimension8970x2500x3500mm (LxWxH)
Concrete transfer pump
AWT-SPJ30 hydraulically driven piston concrete pump, automatic fast switching S-type pendulum valve, hopper equipped with vibrating screen and bottom-opening discharge gate
Pumping transfer capacity30m³/h, 4-35m³ adjustable
Maximum conveying pressure8MPa
Aggregate size16mm
Electro-hydraulic power packs
Electric motors55KW/1480rpm; protection grade: IP54
Hydraulic pumpsLatest optimized pumping system, stable and reliable performance. Main pumps and valves adopt international and domestic famous brand.
Shotcrete robotic arm
DescriptionThe two-stage telescopic and two-stage rotating spraying arm is fully hydraulically controlled and the small arm is folded, so there is no blind spot in operation. It can be operated by both wired and wireless remote control, and the speed of each movement of the arm can be adjusted, with stepless speed regulation.
Maximum shotcrete height16m
Maximum shotcrete width30m
The farthest shotcrete distance15m (front)
Minimum shotcrete tunnel height4m
Maximum shotcrete depth8m (below parking surface)
Pitch angle of small boom-90° ~ +90°
Pitch angle of large boom-30° ~ +65°
Two-stage telescopingTwo-stage telescopic boom
Large arm rotation270° Slewing
Small arm rotation360° swing, large and small arms can be folded by 0°
Double speed coagulant barrel1000L + 500L
Cable reel
Hydraulic motor driven rewindingCable specification 3×35 + 1*16
Accelerating coagulant transfer pump
DriveHydraulic motor drive, electro-hydraulic proportional control
Output capacity30-1000L/h
ControlRealization of remote control and human-machine interface (display), both can control the specific flow
Shotcrete piping and accessories
Concrete pump outlet hinged pipe, DN125-100 reducer and DN90 delivery pipe, additive and compressed air injection device, and flow changer, etc.
Optional
(1) High-pressure cleaning system: plunger-type high-pressure water pump, hydraulic motor drive, with cleaning hose and water gun (2) Reversing camera. (3) Self suction pump for accelerator
Why Choose Us?

Why Choose Us?

Since 2009 we have been leading the production and testing of air compressors and compressors in accordance with ISO UNI EN 9001 standards.



Proven Industry Expertise

Years of experience in mining and tunneling equipment.
Reliable solutions trusted by customers
across underground construction projects.

Reliable Quality & Support

Strict quality control from production to delivery.
Global service support and spare parts supply
ensure long-term, worry-free operation.

Manufacturing & Test

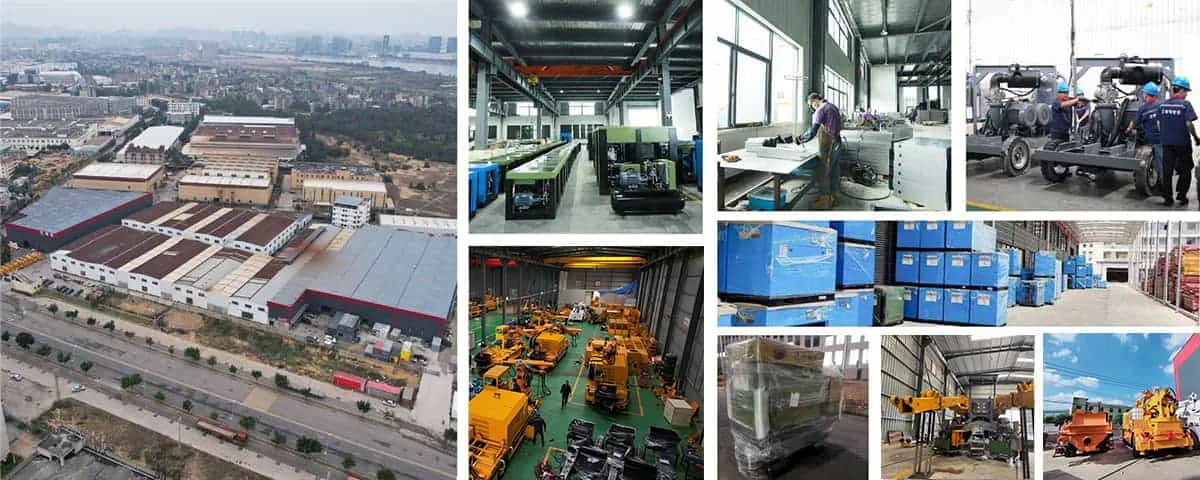

We design and manufacture high-quality, low-price air compressors, and gas compressors, all products are designed and manufactured in strict accordance with standards, with an advanced digital inspection line, each tool test data verification, and advanced testing and verification procedures to ensure the quality of each equipment delivery.
