Model: AZT1-6500
hydraulic rock drilling rig

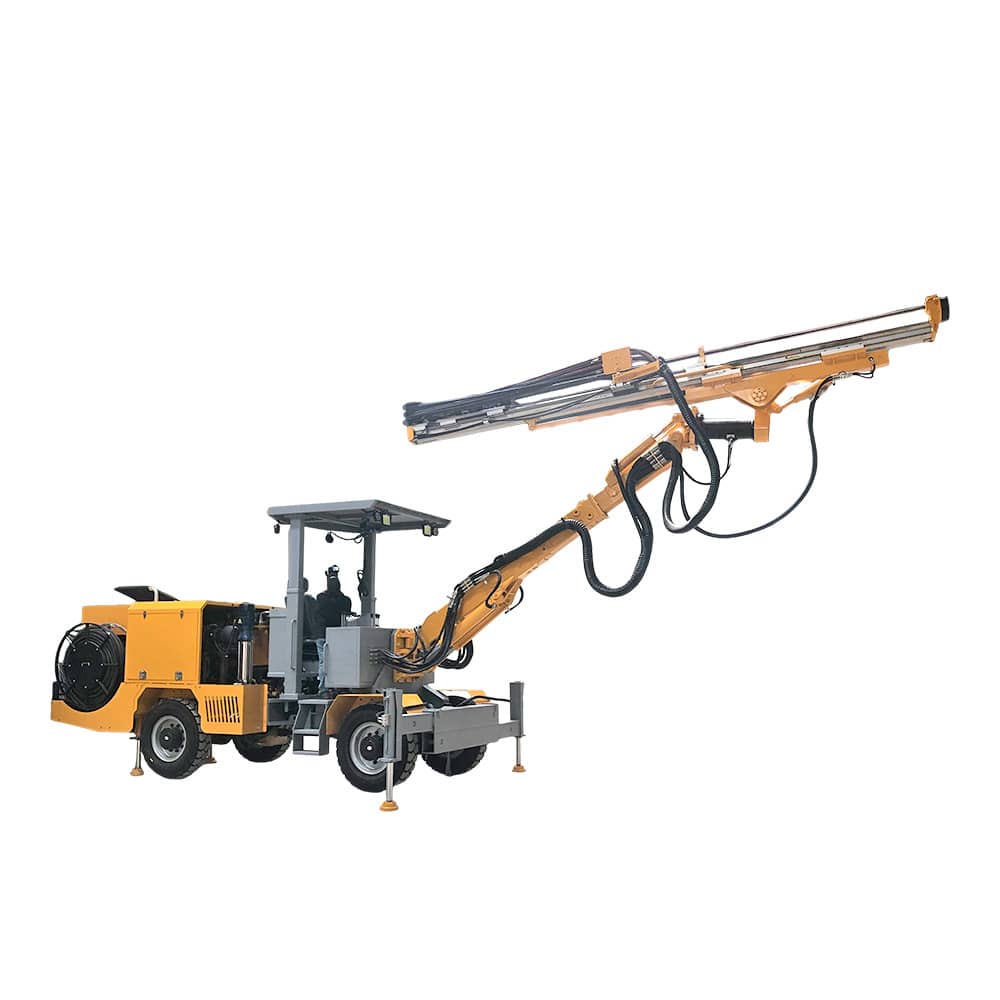

AZT1-6500 mining hydraulic drilling jumbo is widely used in small and medium-sized underground metal mines, water conservancy and hydropower, highway and railway tunnels, chemical industry, etc. It is suitable for a wide range of rocks with a Pugh hardness of f=6-16 or higher. It can work and turn in tunnels with a width of only 3 meters; the thruster can rotate 360° horizontally and vertically in both directions, and has the functions of opening stone doors and drilling anchor holes.
Drilling diameter: 43-102 mm

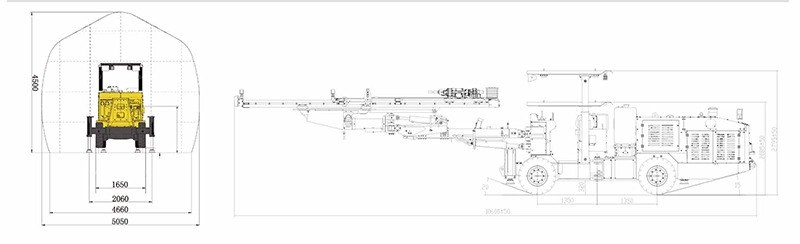

Coverage: 5 x 6.5 m
Coverage: 5 x 6.5 m
p1
p2
p3
p4
p5
filter: 0; fileterIntensity: 0.0; filterMask: 0; captureOrientation: 0; highlight: false; algolist: 0; multi-frame: 1; brp_mask:0; brp_del_th:0.0000,0.0000; brp_del_sen:0.0000,0.0000; motionLevel: null; delta:null; module: photo;hw-remosaic: false;touch: (-1.0, -1.0);sceneMode: 8;cct_value: 0;AI_Scene: (-1, -1);aec_lux: 0.0;aec_lux_index: 0;HdrStatus: auto;albedo: ;confidence: ;weatherinfo: null;temperature: 38;
p6
filter: 0; fileterIntensity: 0.0; filterMask: 0; captureOrientation: 0; hdrForward: 0; highlight: true; algolist: 0; multi-frame: 1; brp_mask:136; brp_del_th:0.0120,0.0000; brp_del_sen:0.0600,0.0090; motionLevel: null; delta:null; module: photo;hw-remosaic: false;touch: (-1.0, -1.0);sceneMode: 3145728;cct_value: 0;AI_Scene: (-1, -1);aec_lux: 0.0;aec_lux_index: 0;HdrStatus: auto;albedo: ;confidence: ;weatherinfo: null;temperature: 33;

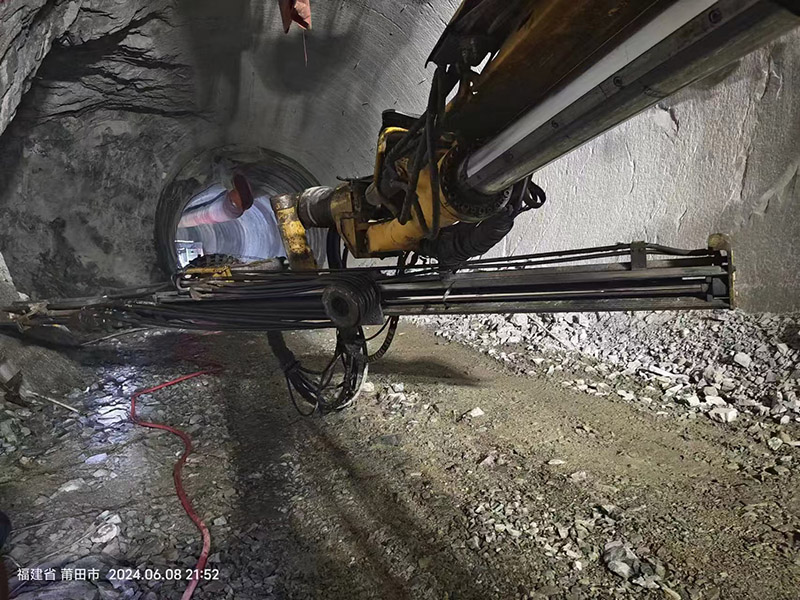

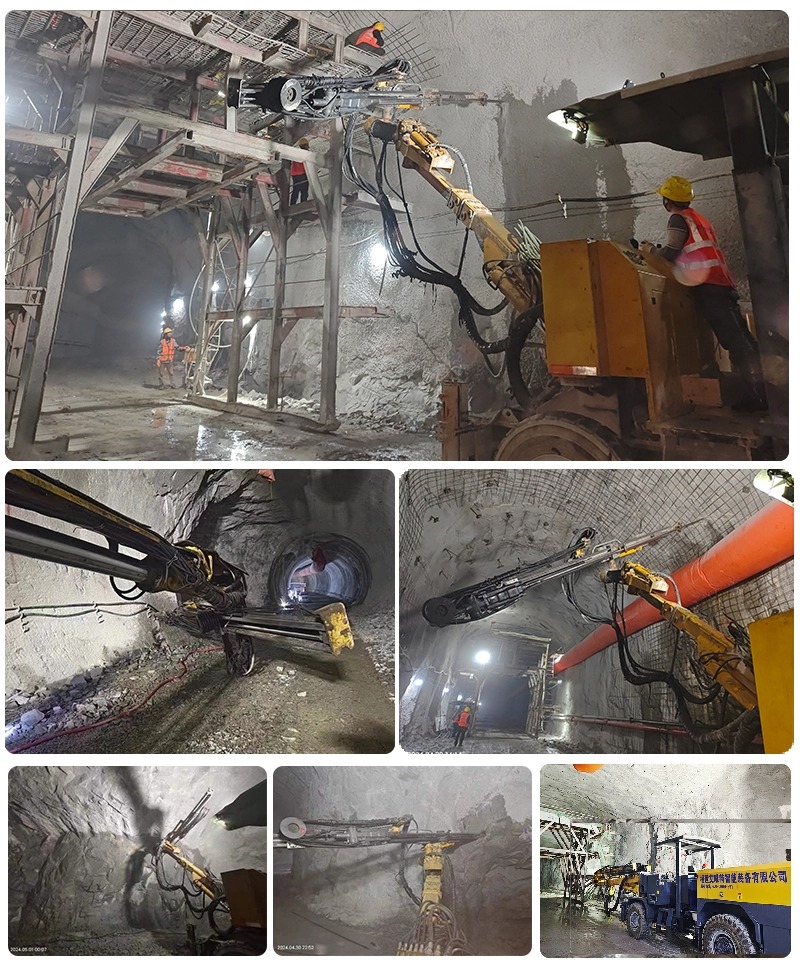

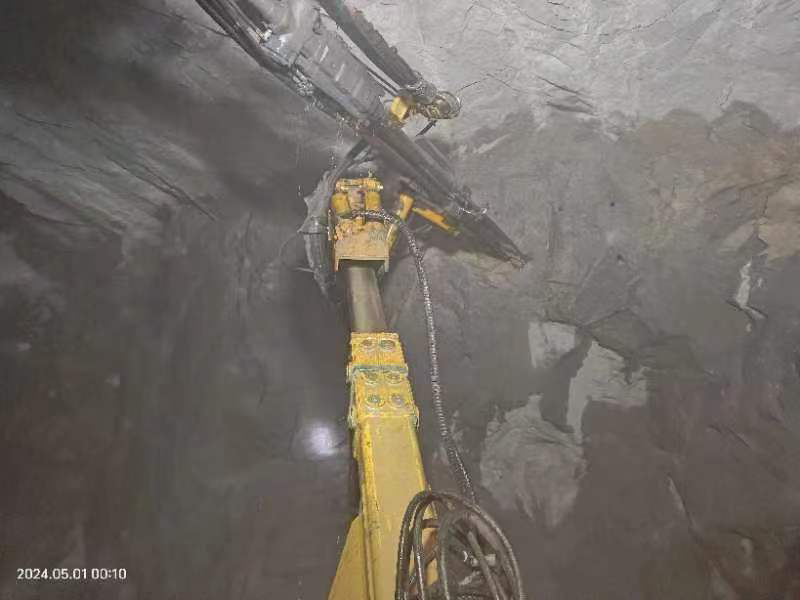

Watch AZT1-6500 Drill Rig In Action
Key Features
AZT1-6500 mining hydraulic rock drilling rig is a multifunctional equipment designed for various mining and construction applications.
- 1. Wide application:
This hydraulic rock drilling rig is not limited to mining metal ores, radioactive ores, as well as mines and tailings ponds used as petrochemical raw materials, building materials, auxiliary raw materials, refractory materials, and other non-metallic minerals (excluding coal). It can also be widely used in water conservancy and hydropower projects, highway and railway tunnels, and chemical industry environments. - 2. Adaptability to rock types:
Its design can handle various rock layers, and the Pugh hardness coefficient (f) ranges from 6 to 16, indicating its suitability for harder rock types. - 3. Compact design for confined spaces:
Despite its powerful functionality, the design of this vehicle allows for efficient operation within narrow tunnel widths, with a minimum requirement of only 3 * 3 meters, making it an ideal choice for confined spaces. - 4. Multi directional rotation:
The thruster’s ability to rotate 360 ° in both horizontal and vertical planes provides unparalleled flexibility in drilling direction, which is crucial for precise drilling in narrow spaces. - 5. Functional Capability:
In addition to standard drilling, this drilling rig is also equipped with the function of drilling anchor holes, enhancing its practicality in various mining and construction tasks. - 6. Hydraulic power:
Fully hydraulic double triangle telescope boom, single stage telescope, telescope stroke single arm 1250mm, big arm lifting 60 ° and lowering 30 °, big and small arms can be automatically leveled. Large working surface range: single arm excavation height 4500mm. - 7. Safety and efficiency:
8-14%
01. Drill Arm Assembly
Different drill rods such as 3700/4300 can be selected according to customer needs. The propulsion beam adopts an aluminum alloy frame with strong bending and torsion resistance.
02. Power Cabin
66KW water-cooled turbocharged engine, strong power, climbing grade>15′; good passability, minimum ground clearance 330mm.

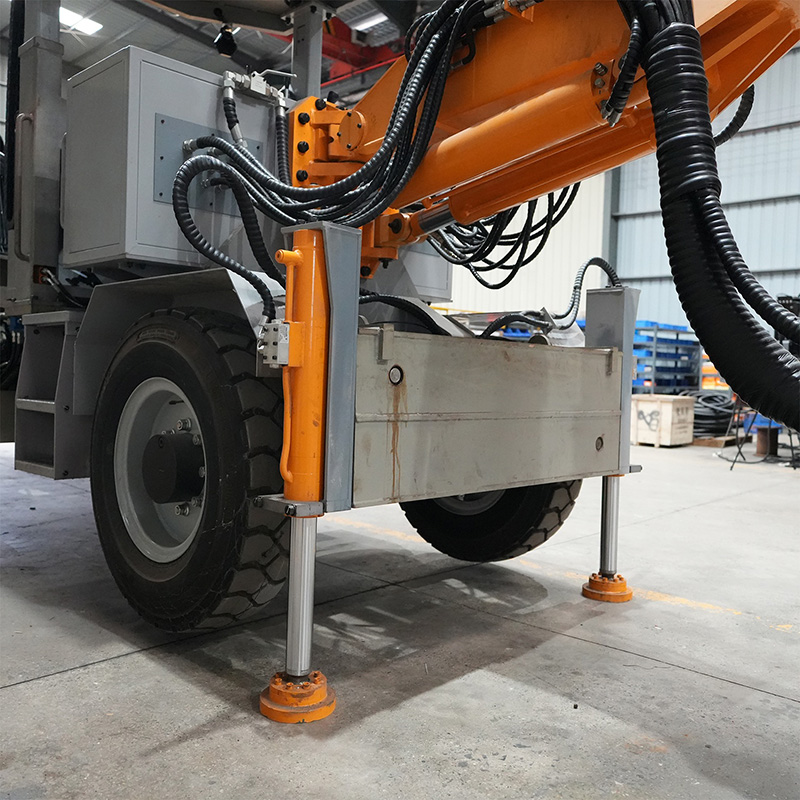

03. Outriggers & Travel Chassis
Engineering chassis, good rigidity and strength, engineering axle, hydraulic gearbox, stable performance, low failure rate, easy maintenance.

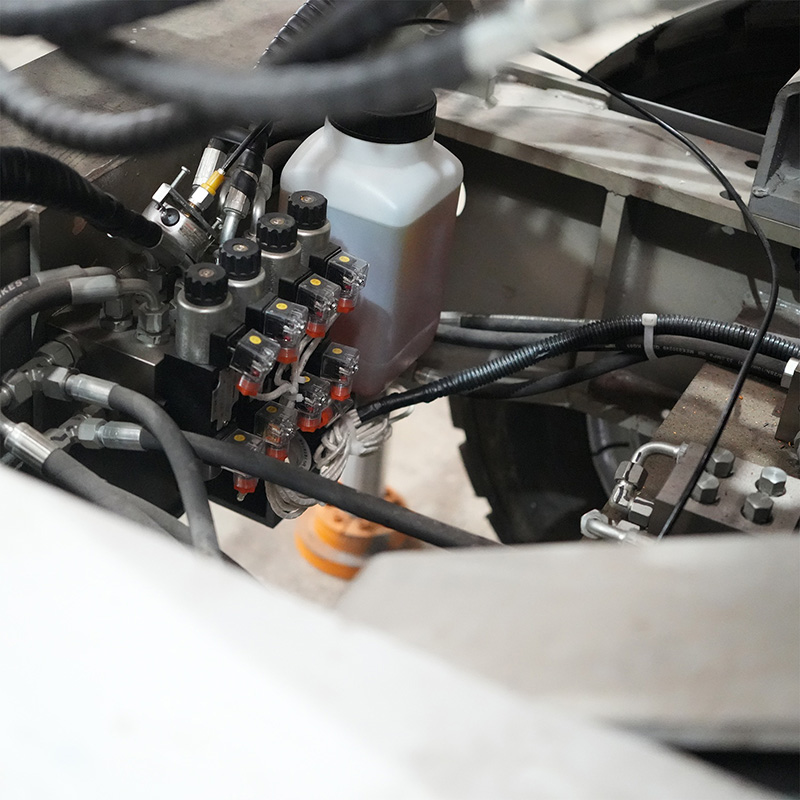

04. Multi-Way Hydraulic Valve Bank

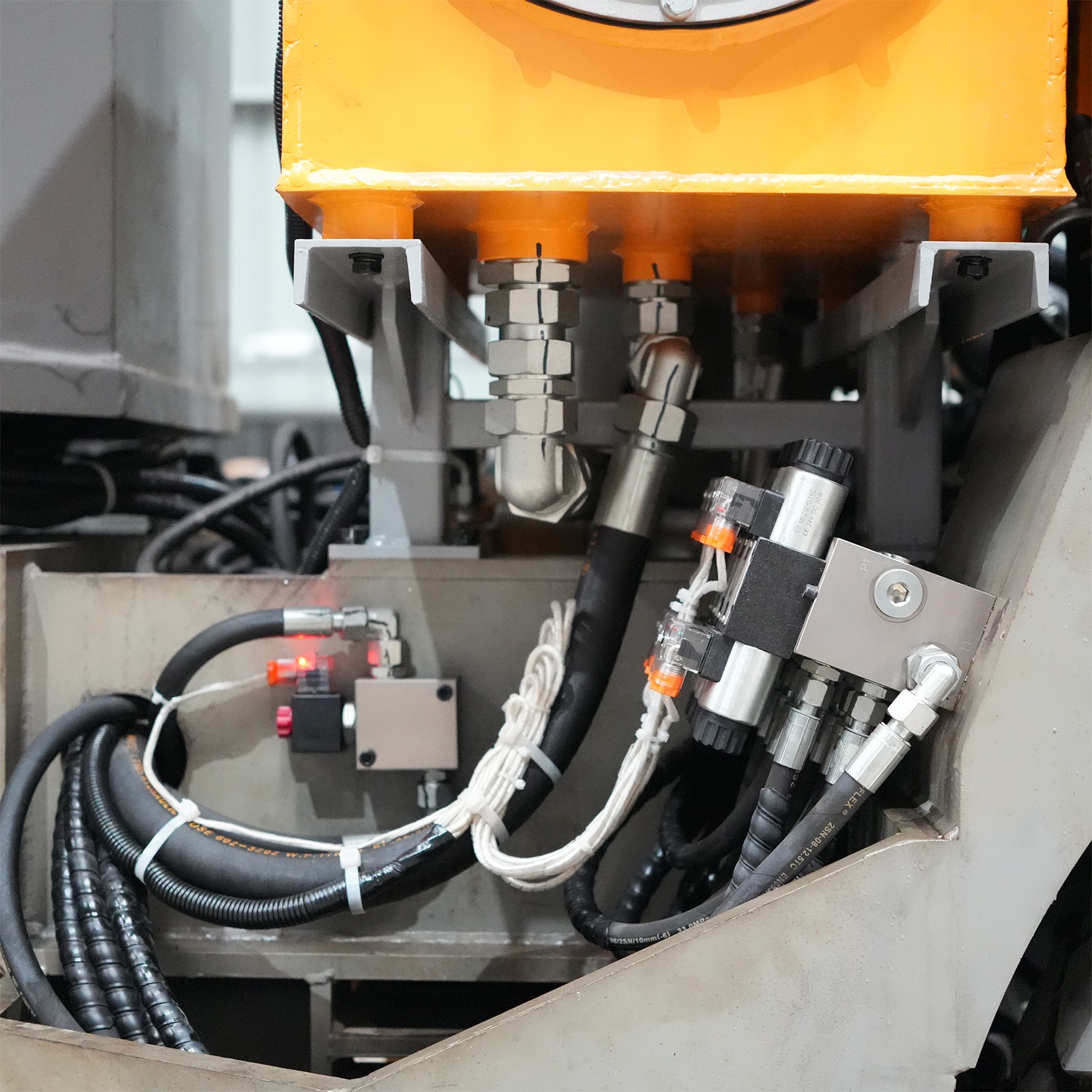

The propulsion, impact and rotation of the entire rock drill are all controlled by hydraulics. Compared with electric hydraulic control, it has faster response speed, lower failure rate, and lower wear and tear on drill rods and drill bits
Boom system: Fully hydraulic double triangle telescopic boom, single-stage telescopic, telescopic stroke single arm 1400mm, big arm lifting 60° and lowering 30°, big and small arms can be automatically leveled. Large working surface range: single arm excavation height 4500mm.
The propulsion, impact and rotation of the entire rock drill are all controlled by hydraulics. Compared with electric hydraulic control, it has faster response speed, lower failure rate, and lower wear and tear on drill rods and drill bits.
Engineering chassis, good rigidity and strength, engineering axle, hydraulic gearbox, stable performance, low failure rate, easy maintenance.
60KW water-cooled turbocharged engine, strong power, climbing grade>18°; good passability, minimum ground clearance 350mm.
Different drill rods such as 3700/4300 can be selected according to customer needs.
The propulsion beam adopts an aluminum alloy frame with strong bending and torsion resistance.
Using well-known domestic brands of high-power rock drills.
Why Choose Us
AZT1-6500 mining hydraulic drilling jumbo is widely used in small and medium-sized underground metal mines, water conservancy and hydropower, highway and railway tunnels, chemical industry, etc. It is suitable for a wide range of rocks with a Pugh hardness of f=6-16 or higher. It can work and turn in tunnels with a width of only 3 meters; the thruster can rotate 360° horizontally and vertically in both directions, and has the functions of opening stone doors and drilling anchor holes.
| Impact performance | Rotation performance | ||||
| Maximum impact power | 18KW | Rotary system | Independent rotation | ||
| Maximum pressure | 200bar | Rotation speed | 0-220 r/min | ||
| Impact frequency | 57HZ | Rotation torque (max) | 1050 Nm | ||
