In a wide range of fields, air compressors are common tools that offer compressed air for different purposes. Therefore, it is important to comprehend air compressor spare parts.
In this detailed article, we are going to look at key elements of industrial air compressors. Provide a spare parts identification guide and discuss the need to use good quality parts in relation to the air compressor performance.

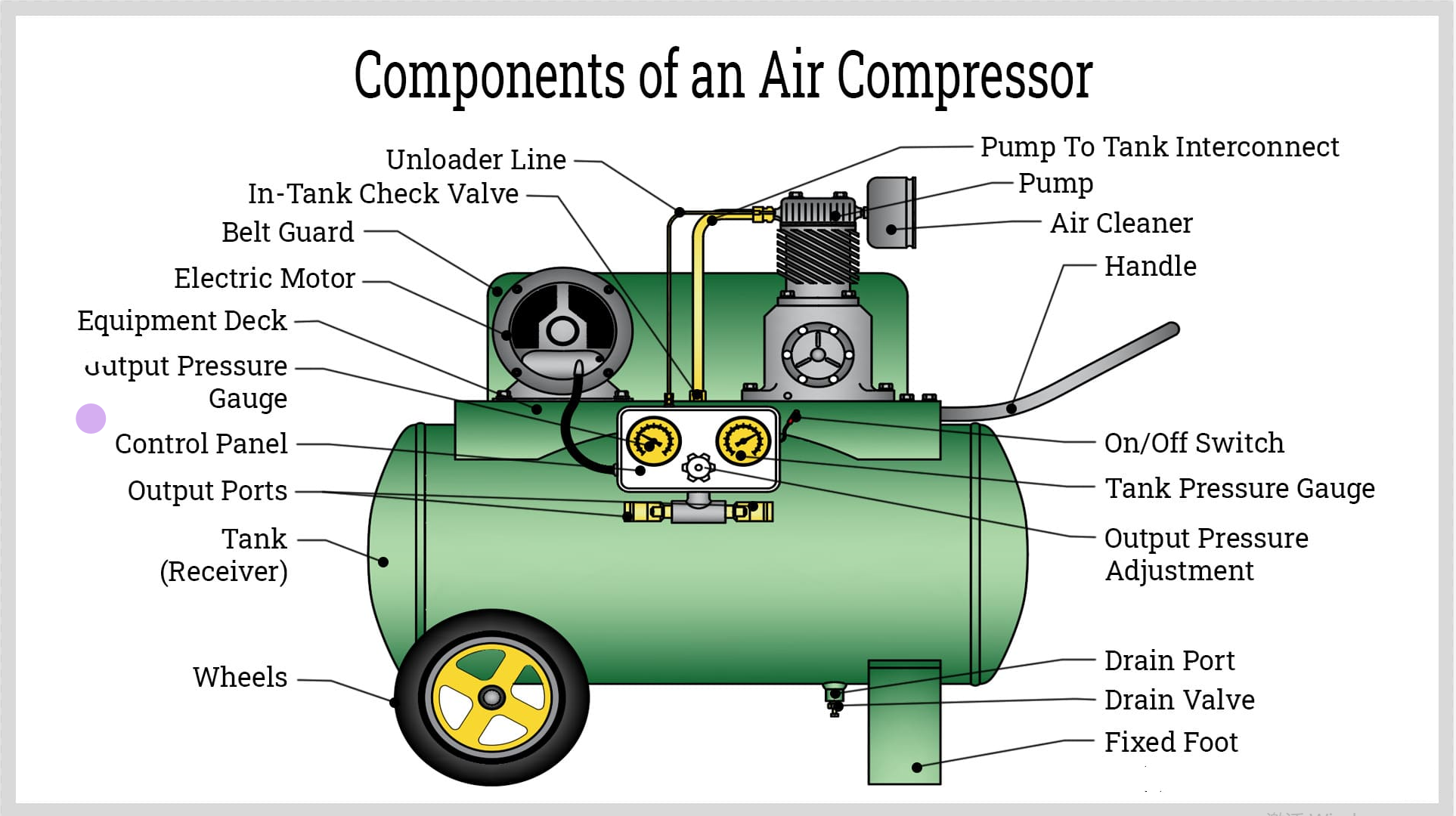

While servicing or fixing the air compressor, it is important to familiarize oneself with the spare parts that make the system functional. This part will cover the types of air compressor spare parts, namely filters, valves, seals, gaskets, pumps and motors.
Air filtration systems are the first line of defense for air compressor systems. They play an important role in the maintenance of the air quality and protection of the internal parts of the equipment. Such systems include different types of filters that perform certain functions in the course of compression.
Most air compression systems come equipped with an inlet filtration system that serves as the primary air entrance management strategy. These filters use custom-designed media so that air contaminants do not reach the section of the system where the actual compression takes place. Modern inlet filtration systems make use of synthetic filter media including very fine grade polymeric fibers and treated paper elements that are designed to trap particulates without compromising on the air flow capacity. The qualification of such filters is of a great importance to volumetric efficiency of the compressor as well as to the operation of the components located downstream.
The role of oil filtration systems is to prevent oil contamination in the compressor's lubricating systems by cleansing the oil used mechanically. These filters have several filter processes comprising the removal of solid dirt from the oil and soluble dirt in the oil. Existing oil filter construction is made of materials that performs the mechanical filtering and enhances the characteristics of activated carbon to offer even better clearing of oil even at varying flow rates within an operational time.
The modern air filtration system responsible for compressed air ensures that clean treated air is provided to the end users. These filters incorporate a variety of filtration processes, including, but not limited to, coalescance, interception, and adsorption of moisture, compressed respiratory oils, and solid particles from the air stream. Advanced air filtration systems commonly use a single enclosure containing multiple filtration elements arranged serially thereby conserving space and yet achieving very high air quality.
Valve systems are instrumental in regulating airflow in the compression system as they are key control points that define the operational characteristics and efficiency of the compressor.
Check valves belong to the class of devices that ensure that air flows in one direction within the system by means of a closure mechanism designed to fit accurately within the valve body. Such check valves can be distinguished between spring check valves and weight check valves and both designs close instantly under an reverse pressure to stop backflow while causing little resistance to the flow. New designs of check valves have also included new materials in their sealing components to enhance their functioning even at extremes of operational conditions.
Safety valves, or relief valves as it is known, means that no excess pressurisation happens to the air compressor. In addition, safety valves help to avoid over pressure situations to the compression system by providing appropriate and effective means of pressure relief. These valves use a spring system that is responsive to changes in pressure in order to release excess pressure build-up in the system. Careful consideration has been made in the design of safety valves such that they operate normally under extreme conditions even after long periods of no use.
A discharge valve assembly controls the flow of compressed air from the compression chamber into a storage system. Such valves work under severe conditions which include high pressure differential and high-velocity cycling. In the present days innovations on the designs of discharge valves have been witnessed utilising high technological materials and manufacturing processes ensuring its functionality while optimising energy loss for the compression process.
Sealing systems guarantee the performance of compression systems by preventing spillage and ensuring the proper functioning of its components.
Piston seals are installed in the gap between the piston and the inner surface of the cylinder so that no air escapes during compression. Piston sealing systems are employed to ensure gas containment within all intended limits. The materials used for the seals are high-performance polymers which are specifically developed for compression applications and provide superior sealing capabilities minimising wear rates. The construction of the piston seal includes engineered shape which allows its stable performance under different pressures and temperatures.
Valve plate gasket sets create a leak-proof contact between the valve plate and cylinder head. These gaskets are made of composite materials which exhibit their sealing properties under changing dynamics. Packings of valve plate gaskets are designed with particular features to control compression so as to achieve the same loading over the entire sealing surface.
O - rings are multipurpose seals that are installed in many areas of the air compressor, particularly at connections of pipes, fittings and other components. They help to stop any unwanted escapes of fluids and to keep the pressure in the system at the required levels.
The air compressor’s motor and pump assemblies are akin to its heart, comprising the elements that provide and regulate the compressed air. The primary components are:
Pressure Switches: Define the parameters for compressor operation using Pressure Switches to monitor air tank pressure. The switch actuates the compressor whenever air pressure in the tank falls below a set point so as to restore it within the limits set at the switch.
Pressure Gauges: Allow for visual feedback concerning how much pressure is inside the air tank as well as whether the use of the compressor is within the limits set.
Electric Motors: The compressor pump is driven by an electric motor, which in turn uses electric current to create mechanical energy. To ensure the motor’s efficiency is maintained and its useful lifespan prolonged, it is important that it is well serviced and greased.
Energy dissipation and equipment breakdowns can often be attributed to the presence of wear patterns on important parts of the compressor. Air compressor parts servicing is commonly taken as the baseline for system dependability, productivity, and budget control.
Systemic degradation of performance is activated by component wear in air compressors. Dirty inlet filters lead to re-pressurization requiring increased power, therefore possibly increasing energy use by twenty percent. Worn out piston ring and cylinder walls lead to losses in compression, increased operational cycles, wear and tear on bearings, seals, and valves.
The implementation of maintenance activities permits the achievement of the required compressed air quality and also system performance. Filtration systems that are clean preserve the required flow dynamics and volumetric efficiency. Proper valve assemblies and seals help to eliminate any pressure drops and losses and hence reduce the operating cost in the compression cycles.
It is obvious that with regards to the daily operations, one should expect benefits from the investments made in maintenance. On-way expenses for replacement of damaged parts due to maintenance are less than on waving for repairs of a breakdown and halting production. Compared to unrepaired units, repaired ones consume less energy by about 10-15% while maintenance scheduling of key parts lowers the total cost of ownership.
The safety of workplaces and their compliance with regulations are based on component maintenance. Safety valves and pressure vessels that are properly serviced are less likely to cause accidents. Regular filtration upkeep guarantees that compressed air is clean enough for most, if not all, critical processes in the food, pharmaceutical, and electronics industries.
Sustained maintenance enhances the environmental aspect by reducing energy use and managing waste appropriately. Regular change of filters and correct disposal of oil ensures that no effluents containing residues are released into the sea and that the law is adhered to.
Planned maintenance combines component vibration and temperature measurements in the production plans, so attaching the record to its future production. Performance data allow extending or shortening terms of maintenance and replacing some of the components.
Choosing the right spare parts affects directly the performance, dependability, and durability of the compressor. This document explains some important aspects that one should consider before buying parts for the air compressor.
Compression equipment manufacturers approach the design and manufacture of their equipment with a set of standards, limits, and specifications which make compatibility a main selection criterion. If you do not have the information, check the product documentation or ask the manufacturer for the details of the component needed. This ensurance is very important as it eliminates the risks of using components which do not fit thereby avoiding damaging the systems in case some parts do not work with the rest of the system.
Elaboration of compatibility does not stop at basic measurements alone since it also involves factors such as pressure limits, the range of temperatures, and the making materials. Parts adhering to factory specifications help preserve the function and structural aspects of your compression equipment.
When assessing the available spare parts for use on an aircraft, some of the quality considerations are best categorized under OEM parts and spare or aftermarket parts. Each of the options has its merits and demerits in regard to the service of the compressors.
Original Equipment Manufacturer parts are ideal because they fit, match and meet the same quality requirements as the original parts. These parts or components go through various tests to measure how well they meet the outlined system design. These parts are usually very expensive, however, the quality and fitting of the parts into the system is never in doubt.
These are parts manufactured for use in specific systems by other manufacturers unrelated with the original manufacture but very often these parts are cheaper. There is a lot of difference in quality from manufacturer to manufacturer so vendors must be evaluated. For instance, most credible aftermarket manufacturers have high quality assurance measures and they mostly work on particular segments of parts and in some instances they provide better features than the originals.
Selection of any given part entails comparing its current cost with its cost in use that is employed across a certain period. The lower purchase cost may be offset by lower operational life or inefficient working of the unit being fitted. Take into account the following in the course of choosing between the components:
Component service life expectations
Impact on system efficiency
Installation requirements
Potential effect on other system components
Maintenance interval implications
Warranty coverage provides essential protection for component investments. OEM parts typically include comprehensive warranty protection, while aftermarket warranties vary significantly. Evaluate warranty terms for:
Coverage duration
Failure type protection
Replacement procedures
Labor coverage
System damage protection
It is imperative to note that the replacement of spare parts has a significant impact on the operation, efficiency, and lifespan of the air compressor. When best practices and manufacturer’s instructions are adhered to, there are reduced chances that the compressor will be operated under unsafe and unreliable conditions. In this section we will examine the primary steps and aspects involved in the replacement of spare parts for air compressors.
In case with the need to change any spare details of the air compressor, turning to the operating instructions of the appliance manufactured will be the best choice. These are operating instructions on every single unit fitted to the compressor and cover where, how, and to what the component can be installed, configured and serviced. Remember that the key goal is to fit new spare parts but also having your compressor working as it should.
Manufacturer's instructions may also include many details such as a maximum torque value for bolts, specific grease to use, and various warnings. Following these details eliminates the possibility of inflicting damages on both, the fresh spare parts and the compressor. Failure to comply or stray from the guidelines set by the manufacturer will often result to poor fittings, poor output, and even pose dangerous situations.
From time to time, checks must be carried out on your air compressor and all its parts, how often will depend on the usage, in order to check for wear and tear or even damage and issues that may throw more serious problems subsequently. Keeping track of condition of spares of the air compressors helps in scheduling replacement as well maintenance of sudden collapse incase of any breakdown.
Component | Daily Check | Weekly Check | Monthly Check | Quarterly Check | Annual Service |
---|---|---|---|---|---|
Filtration System | |||||
Inlet Filters | Visual inspection | Clean/Performance check | Replace if needed | - | Complete replacement |
Oil Filters | Oil level check | Differential pressure check | Replace if needed | Oil analysis | Complete replacement |
Air Filters | Drainage check | Performance test | Clean/Replace if needed | Quality testing | Complete replacement |
Valve System | |||||
Check Valves | Operation sound check | - | Leak test | Performance test | Overhaul/Replace |
Safety Valves | Function test | - | Manual release test | Pressure calibration | Certification renewal |
Discharge Valves | Operation check | - | Leak detection | Performance analysis | Complete inspection |
Sealing System | |||||
Piston Seals | Compression check | - | Leak detection | Wear measurement | Replace if needed |
Valve Plate Gaskets | Visual inspection | - | Leak test | Compression check | Replace if needed |
O-rings | Leak check | - | Condition assessment | - | Systematic replacement |
Power System | |||||
Pressure Switches | Operation check | Calibration verify | Function test | - | Replace if needed |
Pressure Gauges | Reading verification | Calibration check | Accuracy test | - | Recalibration/Replace |
Electric Motors | Temperature check | Vibration check | Bearing lubrication | Insulation test | Full service |
In order to cut on breakage time and effort, it is also recommended to have a ready supply of the most demanded spare parts for easy and quick replacement of any worn out or damaged part. Having some of the critical spare parts in advance, helps to decrease the compressor repair time for performing the maintenance work and for re-commissioning the compressor.
In compiling the spare parts, one should include in the list the parts that are easily damaged or are short lived namely, filters, belts, and seals among others. Also, considering the probability of usage based on the age and service record of the compressor will aid in identifying which spare part should be stocked in readiness. The inventory should be revised periodically with the need to have spare parts in stock when the need arises.
Although some parts may be relatively simple to change, like filters or belts and even a trained in-house staff can do perform these simple repairs, more complex repairs will require hiring a professional technician. On the other hand, if you find yourself facing a problem that is over your team's skill limit or if you do not know the right way to fix it, it is wise to seek the help of a specialist.
Technicians on the air compressor professional level know how to fix anything. This means they can be able to diagnose problems and even repair them. They can also ensure correct installation of spare parts and calibrate the compressor correctly and observe all the safety measures needed. Avoiding all the repairs in-house and seeking the repair services from an expert, helps in preventing the compressor from turning to the worst state and aiding in maximizing use of efficiency of the compressor.
In conclusion, air compressor spare parts play a vital role in ensuring the optimal performance, efficiency, and longevity of your compressed air system. By understanding the different types of spare parts, choosing compatible and high-quality components, and following best practices for maintenance and replacement, you can minimize downtime, reduce operating costs, and extend the life of your air compressor.
As a leading provider of air compressor solutions, Aivyter offers a wide range of genuine OEM spare parts, expert guidance, and professional maintenance services to keep your compressed air system running smoothly. Contact Aivyter today to discover how our expertise can help you maximize the reliability and performance of your air compressor.
Repair components that are likely to be needed from time to time for air compressors include filters (which may include air, oil, and inlet filters), valves (for example, check, safety and discharge valves), seals, gaskets, as well as O-rings. Keeping these components in stock minimizes the chances of having a long breakdown whenever maintenance or repairs are done.
The interval for the disposal of an air filter is based on the amount of work done by the compressor and the surrounding environment. However, as a rule of thumb, looking at the air filter should be done every month with appropriate changing of dirty or clogged air filters to ensure clean air supplied to the air compressor and good performance as well.
It is possible that alternative repair components will not be overpriced; however, their quality and fit may be so so. With regard to that, for the best efficiency of the air compressor and ensuring that it lasts for long, it is advisable to fit only original equipment manufacturer parts which are designed for that type of air compressor.
Abnormal sounds are explained by the most common causes of bearings wear, loose bolts and valve plates breakage. These problems must be managed quickly to avoid irreparable damage or risks.
The common causes of pressure loss are leaky fittings, broken or deteriorated piston rings, and malfunctioning check valves. Perform a leak test using soap water, and replace the damaged parts to help in restoring normal operations.
Synthetic compressor oil should be replaced after 8000 hours of operation or once a year, whichever amount of time is shorter. Routine oil analysis will release the information about the possible need of changes in a shorter period than the specified one.
Diagnosis can include felt outages, cycles and failure to keep pressure within bounds, and scorch marks on the contact points. Such symptoms lead to compulsory replacement of the switch without delay to forestall any damage to the system.
