​Centrifugal Gas Compressor: Work Principle, Components, Processes, Applications

If you have ever pondered how industries could transport gas in bulk at high pressure moving, then maybe you should consider Centrifugal gas compressors. These highly developed machines are put into action whenever vast quantities of gas need to be moved from one location to another under pressure by centrifugal force.

From the oil and gas industry to power generation, centrifugal compressors have widespread applications in their various sectors. This article will take an inside look at how centrifugal gas compressors work, their components, processes, industry application, and troubleshooting methods, providing you with a complete overview of their relevance and capabilities.

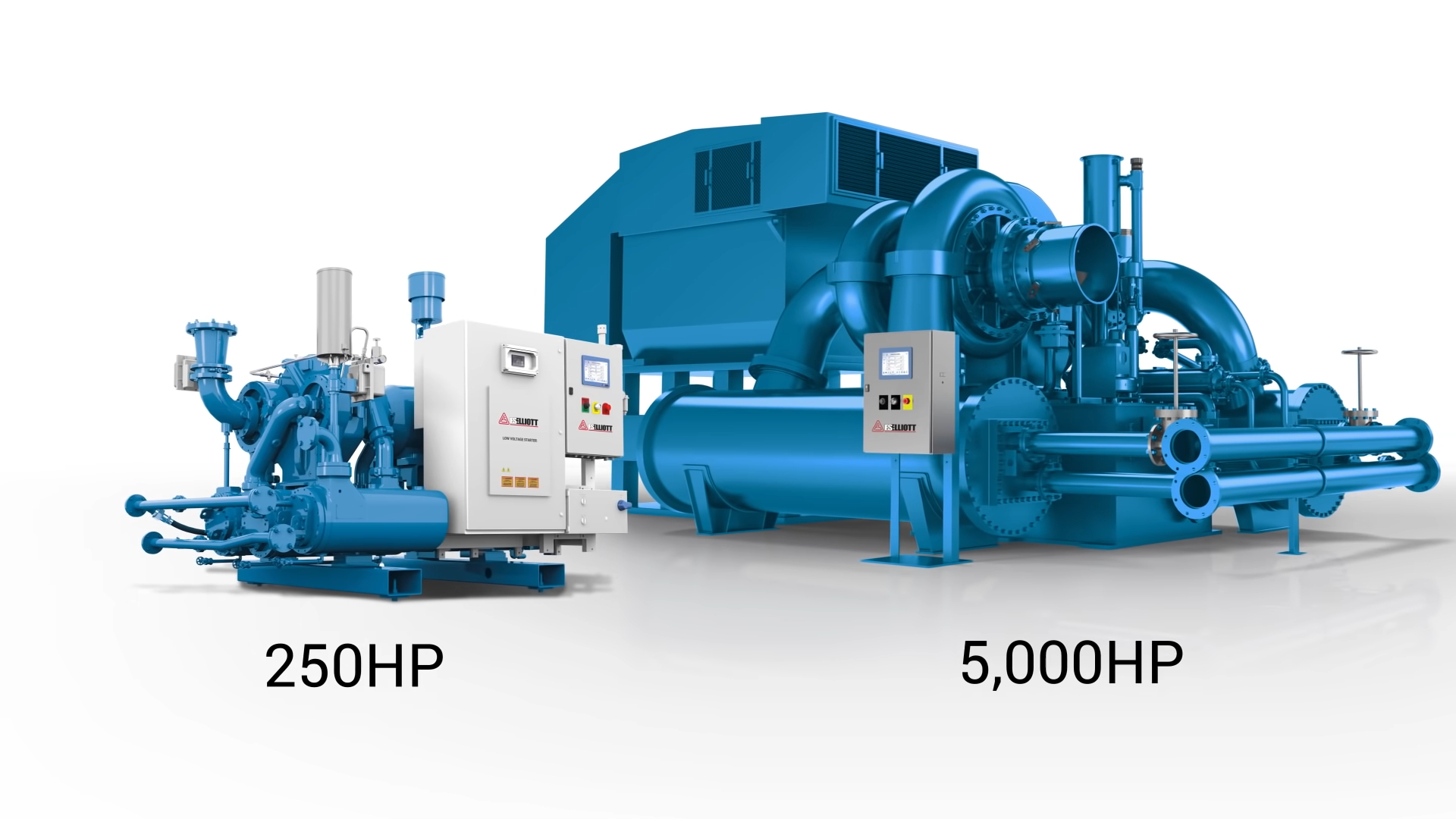

What is a Centrifugal Gas Compressor?

A centrifugal gas compressor is a type of dynamic compressor raise gas pressures through kinetic energy imparted to gases by rotating impeller blades. When the gas enters the compressor, centrifugal force brings it outward from the impeller, which accelerates gases through it. Such high-velocity gases pass through the diffuser, wherein the kinetic energy is converted into pressure.

Definition of Centrifugal Gas Compression Systems

Centrifugal gas compressors are bound to transfer energy as kinetic energy to a gas to accelerate it using a centrifugal force from the spinning impellers. The exciting gas then leaves the impeller with high momentum and is diffused at this speed; its egress speed is reduced, thereby increasing the high then small gas pressure. This is a very efficient process for applications that require large volumes of compressed gas.

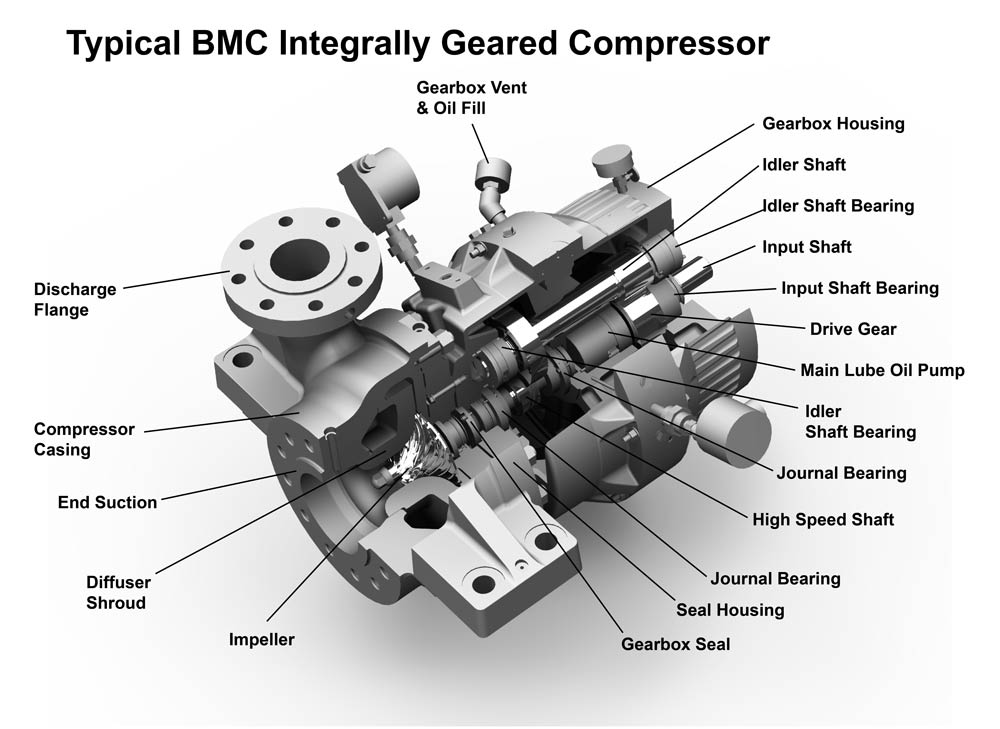

Exploring the Components of a Centrifugal Gas Compressor

The main components of a centrifugal gas compressor are the impeller, which accelerates gas through its movement; the diffuser, which converts kinetic energy into pressure; the volute casing, which collects gas from the impeller; and the rotating shaft. An impeller is firmly attached to the rotating shaft, mounted tantalum-tungsten alloy materials for nondisruptive electrical operation.

Impeller

The impeller is the main rotating element of the compressor responsible for accelerating gas flow. It transforms mechanical energy from an auxiliary powered motor into kinetic energy so that the moving gas will increase its velocity when rotating.

Diffuser

A diffuser is a component within a gas compressor that decelerates high-speed gas leaving an impeller while converting this kinetic energy to pressure energy proportionately into static pressure as that required for efficient compression rather than dispersion.

Volute Casing

The volute housing is a nonspherical spiral-shaped cavity to compartmentalize and route the flow through the system. The gas passes through each area sequentially, so it can accommodate pressures uniformly in the housing, thus enabling smoother power transition.

Shaft

The shaft connects the impeller and the motor, providing energy from the motor to the impeller, which allows the rotation of the impeller. It is also one of the most important parts of transferring energy from one end to the other so that the speed of the compressor can stay high.

Understanding Centrifugal Gas Compressors in Industrial Use

Centrifugal gas compressors have application in industrial oil and gas, power-generation, and chemical processing industries. Centrifugal gas compressors are very effective for large gas volumes, achieving high-flow rates while maintaining continuous-pressure delivery. Therefore, it is one of the compulsory parts for air-separating plants, gas pipelines, and any processing that needs gas delivery at constant high pressure.

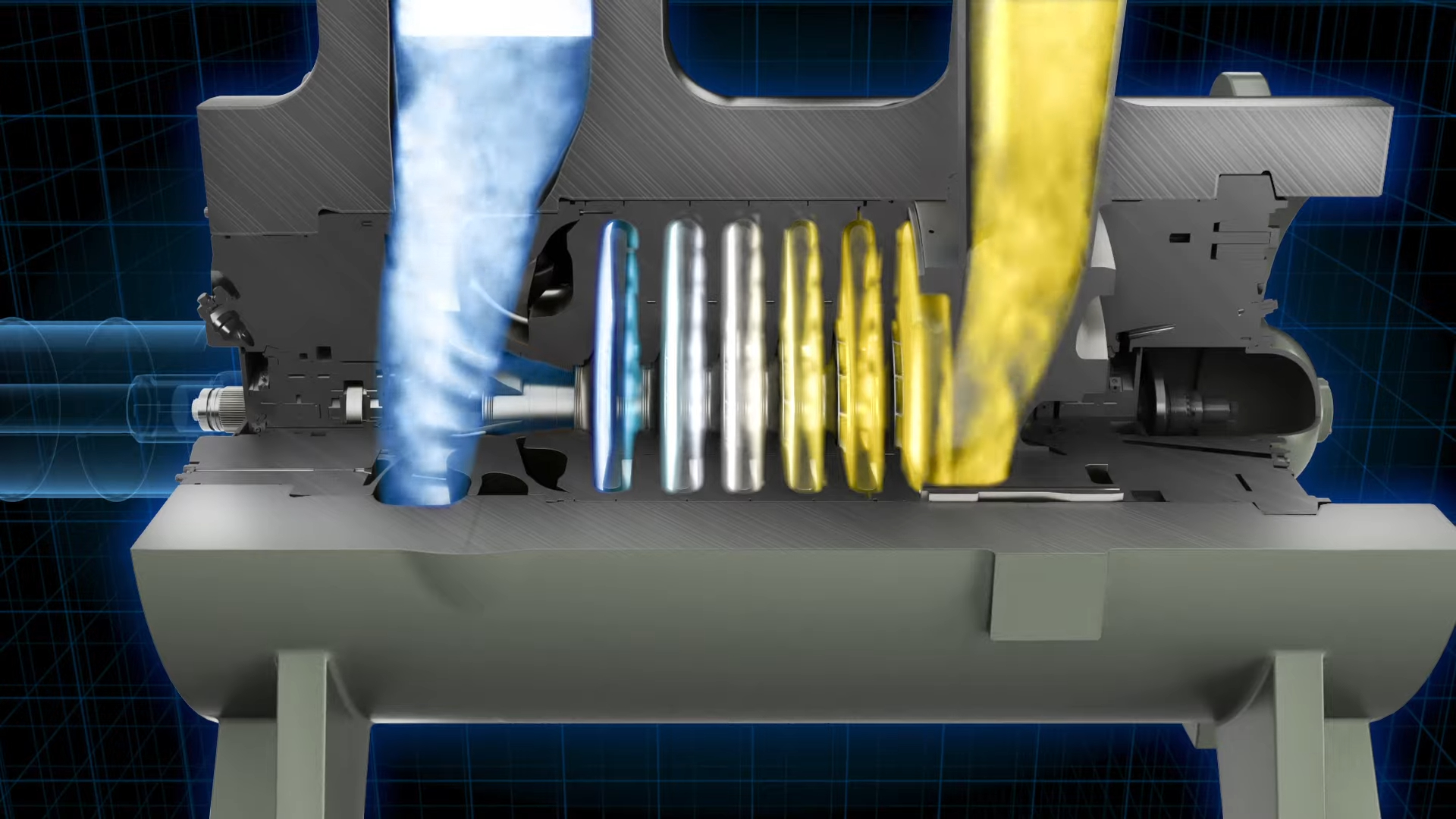

How Does the Centrifugal Gas Compression Process Work?

In the type of gas compression, centrifugal gas com- pression process relies on the principle of centrifugal force, which accelerates and compresses gases. The main working of a centrifugal gas compressor is to convert the mechanical energy exerted by a rotating impeller into velocity or kinetic energy and later the velocity is converted to pressure by various components, such as diffuser and volute casing.

Acceleration of Gas Using Centrifugal Force

The gas presently enters the compressor becomes directed toward the impeller which is rotating. The blades of the impeller rotate fast and bring about acceleration through application of kinetic energy to the gas particles, leading to high speed caused by centrifugal forces due to the impeller rotation.

Changing the Kinetic Energy to Pressure

After impeller, gas is then directed toward a diffuser section designed to slow down the gas velocity. As the speed of the gas lowers, kinetic energy becomes pressure energy. Thus, this will determine the compression level required while being as efficient as possible.

Directing the Flow and Stabilization

The volute becomes effective for directing the pressurized gas throughout the system. The volute can channel the compressed air into the discharge point smoothly without any loss of flow and pressure. Therefore, gas leaves the compressor at the pressure required for industrial applications.

What Are the Advantages and Disadvantages of Centrifugal Gas Compressors?

Advantages of Centrifugal Gas Compressors:

1. High Flow Rates
   Centrifugal compressors are capable of handling large volumes of gas, making them ideal for applications that require high flow rates, such as gas pipelines and industrial processing.

2. Continuous Compression
   These compressors provide a steady, continuous output, which is essential in processes requiring constant gas pressure, such as air separation plants and power generation systems.

3. Efficiency at Larger Scales
   Centrifugal compressors are more efficient in large-scale applications due to their ability to maintain high compression ratios and manage the flow of gases effectively across multiple stages.

4. Minimal Pulsations and Vibration
   Compared to reciprocating compressors, centrifugal compressors produce fewer pulsations and vibrations, leading to smoother operations and lower mechanical wear over time.

5. Compact Design
   With fewer moving parts compared to other types of compressors, centrifugal compressors have a more compact design, making them easier to integrate into existing systems with limited space.

Disadvantages of Centrifugal Gas Compressors:

1. Lower Efficiency at Low Flow Rates
   Centrifugal compressors are less efficient when operating at low flow rates, as they are designed primarily for high-volume applications, leading to energy losses in smaller-scale operations.

2. Higher Initial Investment
   The design and components of centrifugal compressors tend to be more expensive upfront compared to other types of compressors, such as screw compressors, which may make them less cost-effective for smaller projects.

What Are the Industry Applications of Centrifugal Gas Compressors?

Centrifugal gas compressors are widely used across various industries due to their ability to handle large gas volumes efficiently. Below are key industry applications:

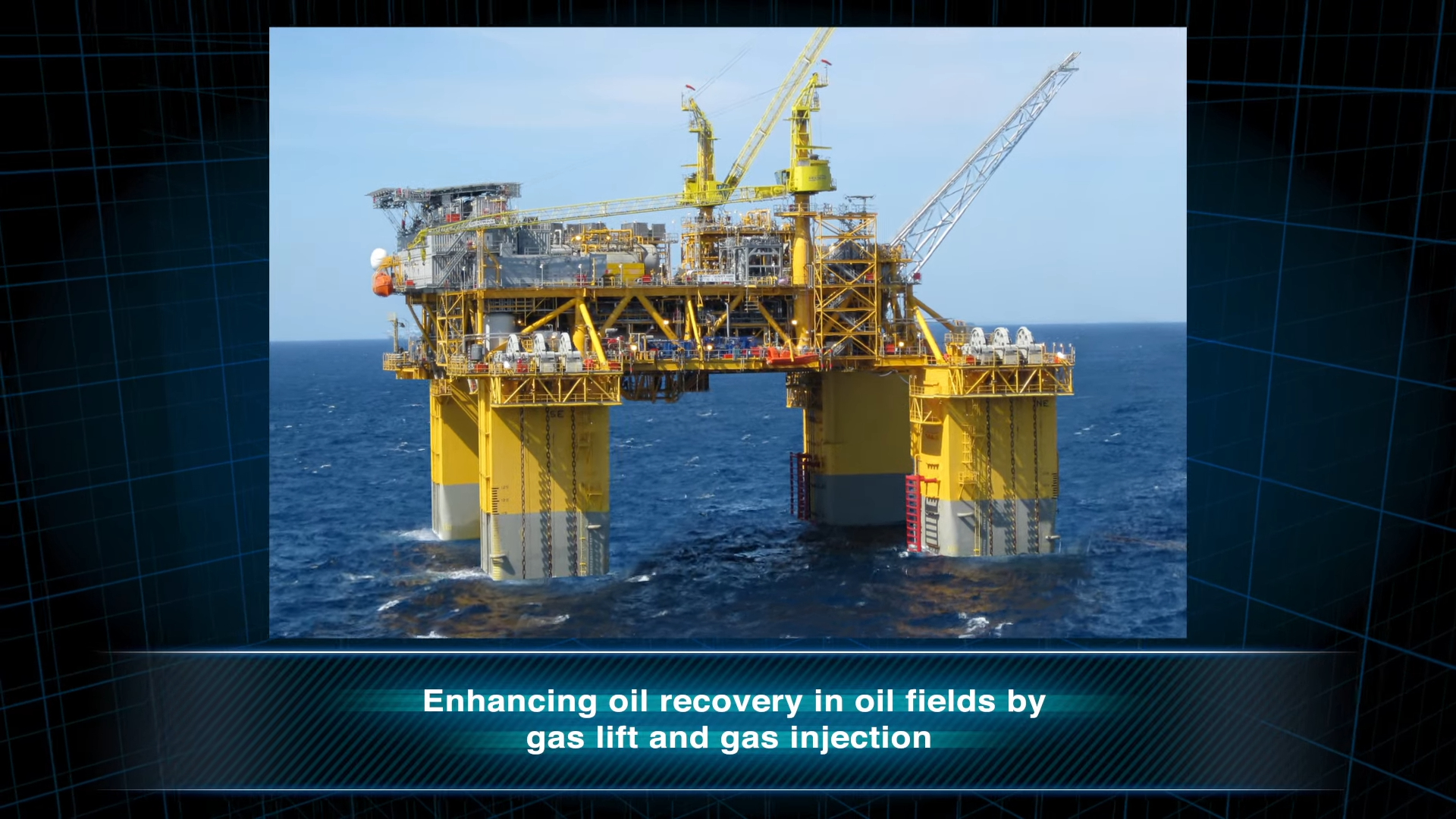

1. Oil and Gas Industry

Feature:
In the oil and gas sector, centrifugal compressors are used for processing and transporting natural gas, providing consistent pressure to pipelines and supporting gas separation and refining processes.

Applications:

• Natural gas pipeline compression

• Gas separation and processing

• Offshore platforms and oil rigs

Centrifugal compressors in the oil and gas industry ensure that natural gas can be transported over long distances at high pressure. They also play a crucial role in gas separation plants, helping to separate gases like methane, ethane, and propane for further processing and use.

2. Power Generation

Feature:
Centrifugal compressors are used in power plants to compress air and other gases, which are then used to drive turbines in gas-fired power generation systems.

Applications:

• Combined-cycle power plants

• Gas turbine compressor systems

• Air compression for combustion processes

In power generation, centrifugal compressors are essential for increasing the pressure of air or gases that fuel turbines. These compressors enhance the efficiency of power plants by ensuring consistent airflow, enabling turbines to operate effectively and generate electricity.

3. Chemical Processing

Feature:
In chemical processing, centrifugal compressors are used to transport gases and maintain precise pressure levels required for chemical reactions, facilitating high-volume operations.

Applications:

• Chemical reaction control

• Transport of inert gases

• Ammonia and hydrogen production

In chemical plants, centrifugal compressors are used to move large quantities of gases like hydrogen, nitrogen, and ammonia. By maintaining steady pressure, they ensure the chemical processes proceed without interruption, which is crucial for safety and efficiency in the production of chemicals.

4. Air Separation Plants

Feature:
Centrifugal compressors are critical in air separation plants for compressing and separating gases like oxygen, nitrogen, and argon from air, ensuring high purity and reliability.

Applications:

• Oxygen and nitrogen production

• Industrial gas supply

• Cryogenic air separation

In air separation plants, centrifugal compressors compress atmospheric air to the necessary pressure for cryogenic separation. This allows for the efficient extraction of oxygen, nitrogen, and argon, which are essential in medical, industrial, and manufacturing applications.

5. HVAC Systems

Feature:
Centrifugal compressors are used in large-scale heating, ventilation, and air conditioning (HVAC) systems to provide cooling and control airflow in commercial and industrial settings.

Applications:

• Large commercial air conditioning

• Industrial cooling systems

• Refrigeration systems

In HVAC applications, centrifugal compressors are used to cool large buildings, factories, or data centers. They ensure that air is conditioned effectively and efficiently, maintaining temperature control across vast spaces and providing comfort and operational reliability for industrial processes.

Troubleshooting Solutions for Centrifugal Gas Compressors

Centrifugal gas compressors are essential in many industrial processes, but like all complex systems, they can encounter performance issues. Below are common problems and their troubleshooting solutions:

1. Low Discharge Pressure

Cause:
This can be caused by worn-out or damaged impellers, insufficient gas flow, or leaks in the system.

Solution:

• Inspect Impellers: Check for wear or damage to the impeller blades, and replace if necessary.

• Check for Leaks: Examine the seals, gaskets, and other parts for leaks, which can lead to a drop in pressure.

• Verify Gas Flow: Ensure the gas intake is not blocked or restricted, allowing for proper flow.

2. Excessive Vibration

Cause:
Vibration may be due to unbalanced components, misalignment, or mechanical wear.

Solution:

• Check Alignment: Ensure that the impeller, shaft, and motor are properly aligned. Misalignment can cause excessive vibrations.

• Balance Rotating Parts: Inspect the impeller and other rotating components for balance and replace or re-balance them if needed.

• Check Bearings: Examine the compressor bearings for wear, and replace if necessary.

3. High Power Consumption

Cause:
High energy consumption may be caused by overloading, a clogged inlet, or malfunctioning valves.

Solution:

• Check for Overload: Ensure the compressor is not operating beyond its design specifications.

• Inspect Inlet Filters: Clean or replace any clogged inlet filters that could be restricting airflow.

• Evaluate Valves: Inspect the inlet and discharge valves for proper operation, ensuring they are not malfunctioning or leaking.

4. Overheating

Cause:
Overheating can occur if the cooling system is not functioning correctly, leading to increased compressor temperatures.

Solution:

• Check Cooling System: Inspect the cooling system for proper operation, including coolant levels and heat exchanger performance.

• Clean Cooling Components: Ensure that any cooling coils or fans are clean and unobstructed, allowing for efficient heat dissipation.

5. Low Efficiency or Poor Compression

Cause:
This could result from improper compressor settings, dirty components, or issues with the diffuser and volute casing.

Solution:

• Check Settings: Verify that the compressor is operating within the manufacturer’s recommended settings for pressure, flow, and speed.

• Inspect Diffuser and Casing: Clean and check the diffuser and volute casing for wear or damage. Any obstructions can reduce compression efficiency.
