How to Increase Air Compressor CFM

Views: 0     Author: Site Editor     Publish Time: 2024-12-19      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Wondering how to boost your air compressor's performance? Many believe increasing CFM is simple—but is it really?

In this article, we’ll debunk common myths and explore actionable strategies. You'll learn how to optimize CFM usage, reduce waste, and enhance system efficiency.

Ready to improve your compressed air system's performance? Let’s dive in and find the best solutions!


Rotary Screw Air Compressors

What is CFM and PSI?

CFM, short for Cubic Feet per Minute, is a crucial measurement when it comes to air compressors. It indicates the volume of air that an air compressor can deliver in one minute. The higher the CFM, the more air the compressor can supply, which directly impacts its performance and the tools it can power.

To understand how CFM affects air compressor performance, consider this analogy:

  • Imagine an air compressor as a water pump

  • CFM is like the amount of water the pump can move per minute

  • Higher CFM means more water (or air) is being delivered

However, CFM isn't the only factor to consider. PSI, or Pounds per Square Inch, is equally important. It measures the pressure at which the air is delivered. The relationship between CFM and PSI depends on the type of air compressor:

Variable Speed Drive (VSD) Compressors

In VSD compressors, there's an inverse relationship between CFM and PSI:

  • Increasing the pressure (PSI) will decrease the available CFM

  • Lowering the pressure (PSI) will increase the available CFM

PSI CFM
100 10
90 12
80 14

Fixed-Speed Compressors

Fixed-speed compressors work differently:

  • They always produce the same amount of air (CFM)

  • Changing the pressure (PSI) doesn't affect the CFM

  • However, higher pressures require more energy to maintain

To sum up:

  • CFM measures the volume of air delivered per minute

  • PSI measures the pressure at which the air is delivered

  • The relationship between CFM and PSI varies based on the compressor type


Calculating CFM for Your Air Compressor

To determine if your air compressor is delivering the right amount of air for your needs, you can calculate its CFM. This process involves a few simple steps and some key factors.

Step-by-Step Guide to Calculating CFM

  1. Find your compressor tank's volume in gallons (the manufacturer should provide this information)

  2. Divide the tank volume by 7.48 to convert it to cubic feet

  3. Empty the compressor tank completely

  4. Refill the tank and record the PSI when the compressor kicks in (PSI 1) and when it kicks out (PSI 2)

  5. Subtract PSI 1 from PSI 2 and divide the difference by 14.7 to get the atmospheric pressure in the tank during refilling

  6. Multiply the tank volume (cubic feet) by the atmospheric pressure during refilling to determine the cubic feet of air pumped into the tank

  7. Divide the result from step 6 by the number of seconds it took to fill the tank

  8. Multiply the result from step 7 by 60 to get your compressor's CFM

the formula of Calculate CFM:


CFM = (TankVolume PressureRatio / RefillTime) 60


Factors Affecting CFM Calculation

Several factors play a role in calculating your air compressor's CFM:

  1. Tank Volume: A larger tank volume means more air can be stored, which affects the CFM calculation

  2. Pressure (PSI): The PSI when the compressor kicks in and out determines the atmospheric pressure in the tank during refilling

  3. Time Taken to Fill the Tank: The number of seconds it takes to fill the tank is used to calculate the CFM

Consider this example:

  • A 20-gallon tank

  • Compressor kicks in at 90 PSI and out at 120 PSI

  • Takes 60 seconds to fill the tank

Using the steps above, we can calculate the CFM:

  1. 20 gallons ÷ 7.48 = 2.67 cubic feet

  2. 120 PSI - 90 PSI = 30 PSI

  3. 30 PSI ÷ 14.7 = 2.04 atmospheric pressure

  4. 2.67 cubic feet × 2.04 = 5.45 cubic feet of air pumped

  5. 5.45 cubic feet ÷ 60 seconds = 0.091 cubic feet per second

  6. 0.091 × 60 = 5.46 CFM

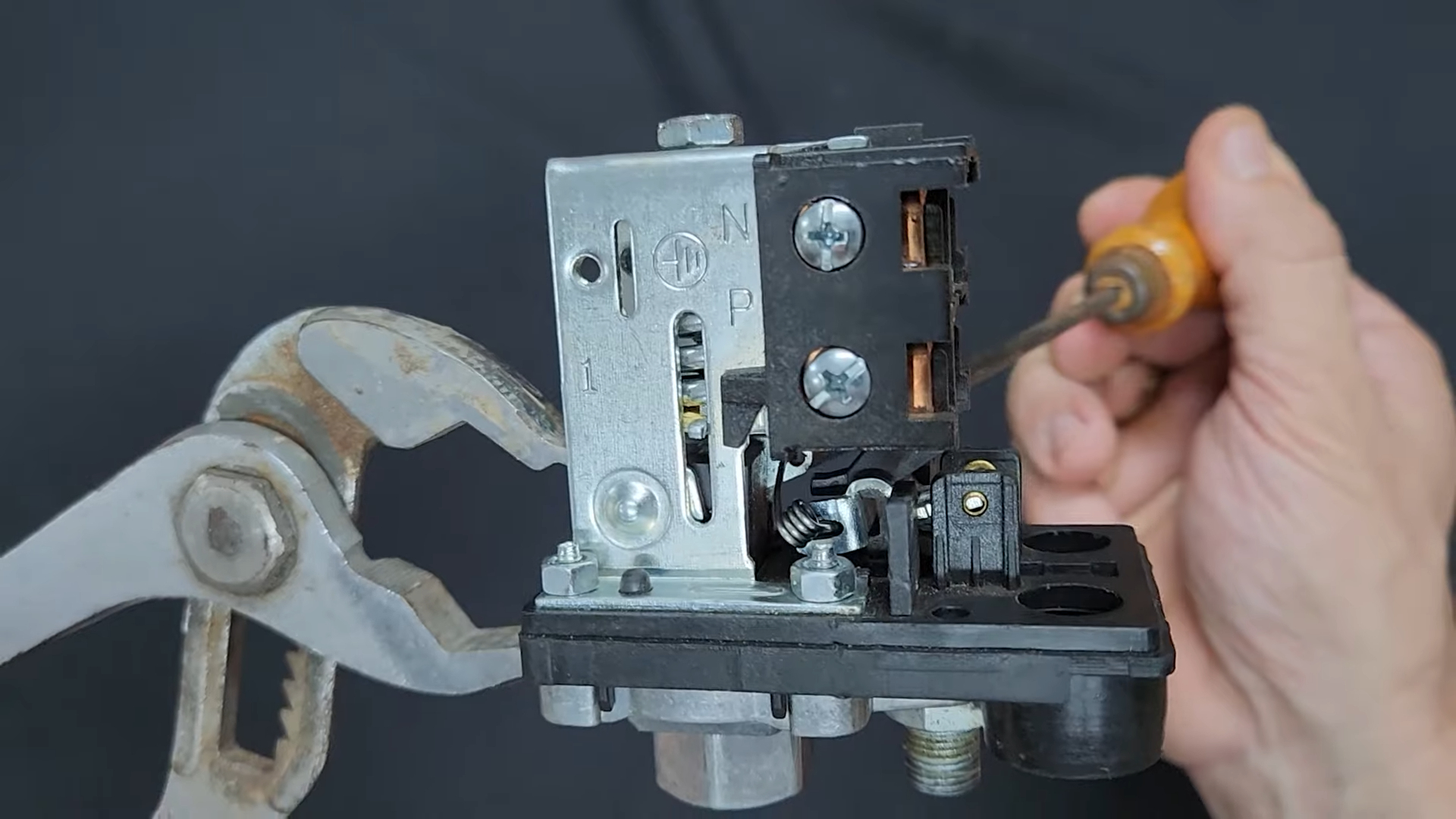

Maintain Pressure Switch Systems

Methods to Increase Air Compressor CFM

When your air compressor isn't delivering enough CFM, several methods can help boost its output. From simple adjustments to more advanced modifications, we'll explore the various ways to increase your air compressor's CFM.

Lowering the PSI

One of the easiest ways to increase available CFM is by lowering the pressure (PSI) of your compressed air system. Here's how it works:

  • Lower pressure means less CFM is needed to maintain that pressure

  • More CFM becomes available for use at lower pressures

  • Find the optimal pressure for your system to maximize CFM without compromising performance

Keep in mind:

  • Every 2 PSI reduction in pressure increases CFM by about 1%

  • Consult your tools' manuals to determine the minimum required pressure

Fixing Leaks and Reducing Waste

Air leaks can significantly reduce your compressor's efficiency and available CFM. To fix this issue:

  1. Identify leaks by listening for hissing sounds or using soapy water to detect bubbles

  2. Fix leaks promptly to prevent CFM loss

  3. Minimize pressure drop in the system by using properly sized pipes and hoses

Adding Compressed Air Storage Capacity

Installing an air receiver tank can help meet high CFM demands without overworking your compressor:

  • Air receiver tanks store compressed air for use during peak demand periods

  • They allow your compressor to run less frequently, saving energy and increasing CFM availability

  • Size your auxiliary tank based on your CFM requirements and available space

Moving to a VSD Compressor

Variable Speed Drive (VSD) compressors offer several advantages over fixed-speed models:

  • VSD compressors adjust motor speed based on air demand, optimizing CFM output

  • They provide consistent pressure and CFM, even during fluctuations in demand

  • VSD compressors can save energy and increase overall system efficiency

Adding a Second Compressor

If your CFM requirements exceed your current compressor's capacity, adding a second compressor can be a solution:

  • A secondary compressor can provide additional CFM when needed

  • Size the secondary compressor based on your peak CFM demands

  • Set up the secondary compressor to work in tandem with your primary unit

Modifying the Existing Compressor (Advanced)

For more significant CFM increases, you may need to modify your existing compressor:

  • Upgrading the compressor pump and motor can increase CFM output

  • However, this is a costly and complex process that requires professional assistance

  • Consider the costs and benefits before pursuing this option


Optimizing Your Compressed Air System for Maximum CFM

To ensure your compressed air system delivers maximum CFM, you need to consider several factors beyond just the compressor itself. Properly sizing your compressor, choosing the right type, maintaining it regularly, designing an efficient distribution system, and following best practices for compressed air usage all contribute to optimizing CFM output.

Properly Sizing Your Air Compressor

Selecting an air compressor with the right CFM rating for your needs is crucial. To do this:

  1. Determine the total CFM requirements of all your air tools and equipment

  2. Add a safety margin of 30% to account for future growth and peak demand periods

  3. Choose a compressor with a CFM rating that meets or exceeds this total

Choosing the Right Air Compressor Type

Different types of air compressors have varying CFM capabilities and efficiency levels:

  • Reciprocating compressors are suitable for intermittent use and lower CFM requirements

  • Rotary screw compressors are ideal for continuous use and higher CFM demands

  • Centrifugal compressors are best for very high CFM applications

Consider your specific needs when selecting the right type of compressor for your system.

Maintaining Your Air Compressor

Regular maintenance is essential for keeping your air compressor running efficiently and delivering maximum CFM:

  • Perform routine tasks like checking oil levels, cleaning air filters, and inspecting hoses and fittings

  • Watch for signs of inefficiency, such as increased running time, higher energy consumption, or reduced CFM output

  • Address any issues promptly to prevent further CFM loss and system damage

Maintenance Task Frequency
Check oil levels Daily
Clean air filters Weekly
Inspect hoses and fittings Monthly

Designing an Efficient Compressed Air Distribution System

The design of your compressed air distribution system can greatly impact CFM delivery:

  • Select pipes and hoses with appropriate sizes to minimize pressure drop and CFM loss

  • Use larger diameter pipes and hoses for main lines and smaller ones for branch lines

  • Keep pipe runs as short as possible to reduce pressure drop

Properly designed distribution systems ensure that the CFM generated by your compressor reaches your end-use applications with minimal loss.

Best Practices for Compressed Air Usage

How you use compressed air also affects CFM optimization:

  • Choose air tools and equipment that match your compressor's CFM capabilities

  • Operate tools at the manufacturer-recommended pressure to avoid CFM waste

  • Avoid using compressed air for tasks that can be accomplished with other methods, like cleaning or drying

  • Fix air leaks promptly to prevent CFM loss and system inefficiency

Optimizing your compressed air system for maximum CFM involves a holistic approach that addresses compressor selection, maintenance, distribution design, and usage practices. Implementing these strategies will help you get the most out of your compressed air system and ensure that it meets your CFM requirements.


10

Frequently Asked Questions (FAQ)

Q: Can I increase my air compressor's CFM beyond its rated capacity?

A: No, you cannot increase your air compressor's CFM beyond its rated capacity without upgrading its pump and motor. However, you can optimize your compressed air system to get the most out of your compressor's CFM output.

Q: What are the signs that I need to increase my air compressor's CFM?

A: Signs that you need to increase your air compressor's CFM include tools operating poorly, increased running time, and frequent pressure drops. If your compressor struggles to keep up with demand, it may be time to boost CFM.

Q: How much CFM do I need for my specific applications?

A: The CFM you need depends on the total air consumption of your tools and equipment. Add up the CFM requirements of all your tools, then add a 30% safety margin to determine your compressor's necessary CFM rating.

Q: Is it better to add an auxiliary tank or a second compressor?

A: It depends on your specific needs. An auxiliary tank can help meet short-term, high-CFM demands, while a second compressor provides a more permanent solution for increased CFM requirements. Consider factors like space, budget, and long-term CFM needs when deciding.

Q: What are the energy-saving benefits of increasing CFM?

A: Increasing CFM can lead to energy savings by allowing your compressor to run more efficiently. Properly sizing your compressor, fixing leaks, and optimizing your system can reduce energy consumption while ensuring adequate CFM for your needs.


Conclusion

Increasing CFM in your compressed air system requires understanding factors like PSI, leaks, storage, and compressor types. Properly maintaining your equipment and optimizing system design boosts efficiency and performance.


CFM plays a vital role in ensuring tools and systems operate effectively. By optimizing airflow, you save energy, reduce costs, and enhance productivity.


Start implementing these strategies today. Small changes can have a big impact on your system’s performance and reliability.


Aivyter: Your Trusted Partner for Innovative Compressed Air Solutions


With over a decade of experience, Aivyter delivers cutting-edge air compressors and exceptional service. Our team of experts is committed to understanding your unique needs and providing tailored solutions to optimize your compressed air system's performance and efficiency. Partner with Aivyter today and experience the difference of working with an industry leader.


Appendices

This section provides additional resources and information to help you better understand and calculate CFM for your air compressor system. We've included a glossary of key terms, detailed formulas and calculations, and references to industry standards and support services.

Glossary of Terms

  • CFM (Cubic Feet per Minute): The volume of air that an air compressor can deliver in one minute

  • PSI (Pounds per Square Inch): The pressure at which air is delivered by the compressor

  • VSD (Variable Speed Drive): A type of compressor that adjusts motor speed based on air demand

  • Receiver Tank: A storage vessel for compressed air that helps meet peak demand periods

  • Pressure Drop: The loss of pressure in a compressed air system due to factors like leaks, restrictions, or friction

Formulas and Calculations

To calculate CFM for your air compressor, use the following formula:

CFM = (Tank Volume in Cubic Feet) × (Atmospheric Pressure During Refilling) ÷ (Time to Fill Tank in Seconds) × 60

Example calculation:

  • Tank volume: 20 gallons (2.67 cubic feet)

  • Compressor kicks in at 90 PSI and out at 120 PSI

  • Time to fill tank: 60 seconds

Step 1: Convert pressure difference to atmospheric pressure

(120 PSI - 90 PSI) ÷ 14.7 = 2.04 atmospheric pressure

Step 2: Apply the CFM formula

CFM = 2.67 × 2.04 ÷ 60 × 60 = 5.46 CFM
