Regulators in Air Compressor System

Views: 0     Author: Site Editor     Publish Time: 2024-12-10      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Ever wondered how to ensure your air tools perform at their best without risking damage? Air compressor regulators are the key to controlling and adjusting output pressure, ensuring precision and safety. These devices allow you to match air pressure to the specific requirements of your tools, preventing overloading or underperformance.

This article explores the functionality, components, and adjustment process of regulators, along with tips for troubleshooting common issues. Whether you're a beginner or an experienced user, understanding air compressor regulators can enhance efficiency and extend equipment life. Dive in to master this critical aspect of air compressor systems!

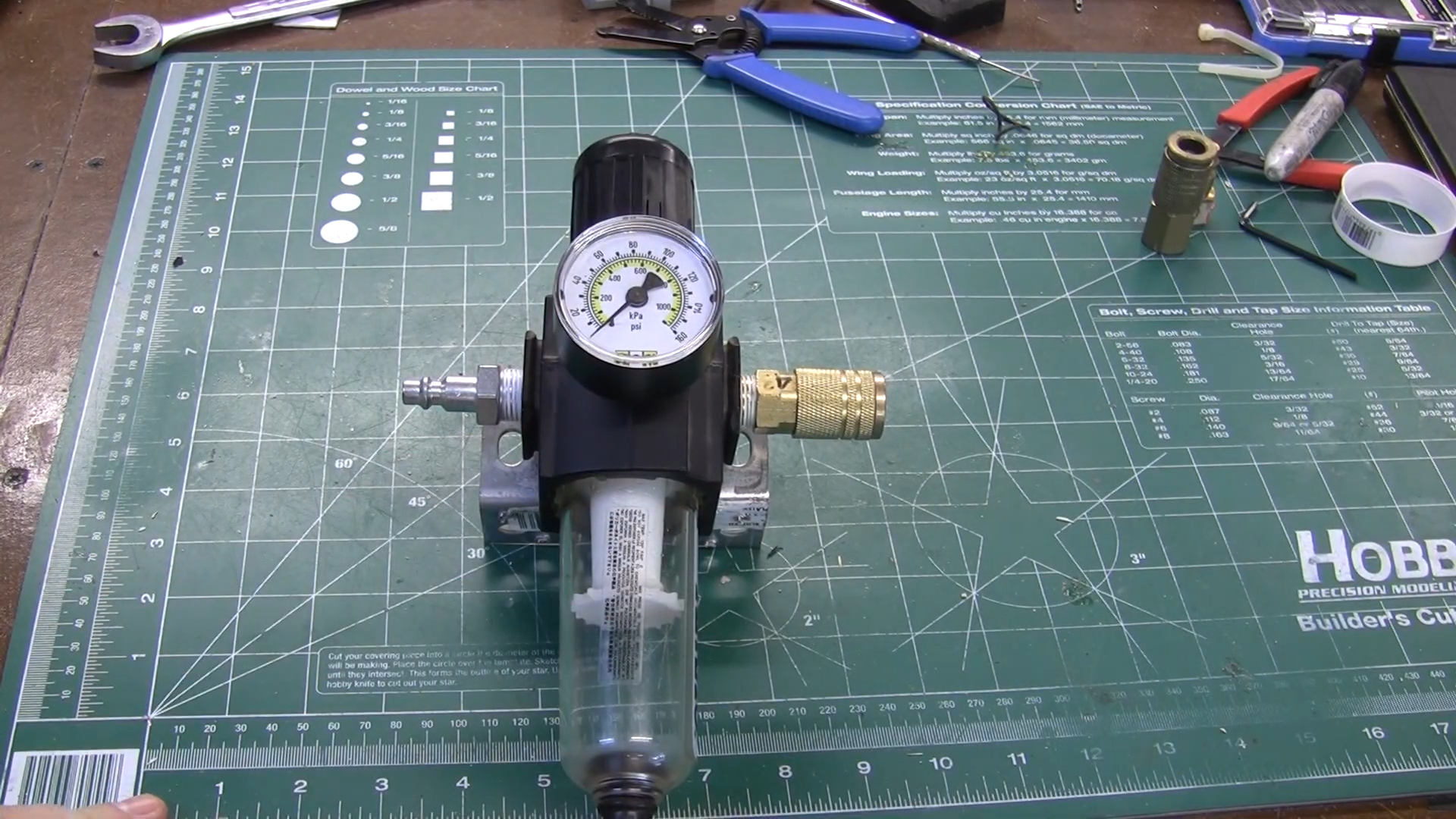

Air Compressor Regulator and Air Separator Install

What is a Regulator of Air Compressor?

An air compressor pressure regulator controls the air pressure from your compressor, ensuring consistent and optimal output for your tools. It allows users to adjust the pressure to match specific requirements, protecting equipment from damage and improving efficiency. Equipped with a gauge and adjustment knob, it regulates airflow precisely, making it essential for tasks where pressure consistency and tool compatibility are critical.


How does Pressure Regulators in Air Compressor System Work?

A pressure regulator works by controlling and maintaining a consistent output pressure from an air compressor. Here's how it operates:

  1. Air Entry: Compressed air enters the regulator from the compressor's storage tank.

  2. Spring Mechanism: Inside the regulator, a spring-loaded valve controls the flow of air. The tension of the spring determines the set pressure.

  3. Pressure Adjustment: The user adjusts the regulator's knob, which adjusts the spring tension to set the desired output pressure.

  4. Control Valve: As the air pressure increases, it pushes against the spring. When the pressure reaches the set level, the valve partially closes to maintain that pressure.

  5. Output: The regulated air exits the valve at the constant, adjusted pressure, ensuring tools or equipment receive the correct pressure for optimal performance.


How to Read Pressure Gauge in Air Compressors?

To read the pressure gauge on an air compressor accurately, you need to understand the different gauges and their specific functions. Here's a more detailed breakdown:

1. Types of Pressure Gauges:

  • Tank Pressure Gauge: This gauge measures the air pressure inside the compressor's storage tank. It shows how much compressed air is available in the tank for use.

    • Reading this gauge: The pressure here is typically higher when the compressor is running, and it will decrease as air is used by tools or equipment.

  • Output (Regulated) Pressure Gauge: This gauge measures the air pressure being delivered to the tools or equipment after the regulator adjusts it.

    • Reading this gauge: It shows the air pressure you have set on the regulator, which is often lower than the tank pressure, depending on the requirements of your tools.

2. How to Read the Gauge:

  • Gauge Face: Most air compressor gauges have a circular face with a needle that points to the pressure value. Some gauges may also have numerical readings and markings in either PSI (pounds per square inch) or bar (metric units).

    • PSI Scale: PSI is the most common unit used in air compressors, especially in the United States. The gauge will usually show pressure values ranging from 0 to 150 PSI or more, depending on the size of the compressor.

    • Bar Scale: Bar is the metric unit used internationally. 1 bar is approximately equal to 14.5 PSI. The gauge will show values from 0 to 10 bars or more.

3. Interpret the Needle's Position:

  • The needle on the gauge will point to a specific pressure value. To determine the reading:

    • Find the value at which the needle is pointing.

    • If the gauge is calibrated with both PSI and bar units, check the appropriate scale. For example, if the needle points at 60 PSI, that is the pressure in the tank or output (depending on which gauge you're looking at).

    • Some gauges may have intermediate marks between major values (e.g., between 0 and 100 PSI), so be sure to note the exact position of the needle.

4. Gauge Markings:

  • Red Zone: Some gauges have a red zone, indicating a dangerous or too-high pressure level. If the needle moves into this zone, it suggests that the compressor is under stress and could potentially cause damage. Make sure to reduce the pressure immediately.

  • Optimal Operating Range: Many compressors have an optimal operating range marked on the gauge, typically between 60-80% of the maximum capacity, which is the safe and efficient pressure range for the compressor to function.

5. Tank Pressure Gauge:

  • This gauge reads the pressure inside the air tank.

    • Low Reading: If the needle points to the lower range (e.g., below 60 PSI), it means the tank is low on air and the compressor may need to run to replenish it.

    • High Reading: A higher reading (e.g., near 120 or 150 PSI) means the tank has plenty of compressed air stored. The compressor will stop filling once it reaches its preset maximum.

6. Output (Regulated) Pressure Gauge:

  • This gauge indicates the pressure being supplied to your tools.

    • Adjustment: You can adjust the output pressure using the regulator. For example, if you need 90 PSI for a spray gun, you will adjust the regulator to this level and monitor the output pressure gauge to ensure it's accurate.

    • Variation in Reading: As air is used by the tools, the output pressure may drop if the tank pressure is also low. If the output pressure drops below the set value, it may indicate that the tank pressure is too low or the compressor isn’t keeping up with demand.

7. What to Look For:

  • Reading the Pressure: When reading the gauge, take note of both the needle’s position and any pressure markings. Ensure that the pressure falls within the recommended range for your compressor and the tool you're using.

  • Pressure Fluctuations: Keep an eye on how the needle fluctuates. If the tank is near empty, you may see the needle on the tank pressure gauge drop rapidly. If your tool requires a steady supply of pressure, any large fluctuations in output pressure could signal problems.

8. Example of Reading:

  • If the tank pressure gauge reads 150 PSI, but the output pressure gauge reads 90 PSI, the regulator is adjusting the pressure for use with tools.

  • If both gauges are reading close to the maximum pressure, this might indicate overloading or a malfunction in the pressure system.


How to Adjust Air Pressure Regulator?

Steps to Adjust an Air Compressor Pressure Regulator:

  1. Turn off the Air Compressor (Optional):

    • For safety, it’s often recommended to turn off the compressor before making any adjustments. However, some compressors allow adjustments while they’re running.

    • If you're adjusting the regulator while the compressor is running, ensure you're familiar with the manufacturer's instructions.

  2. Locate the Pressure Regulator:

    • The pressure regulator is typically located on the front panel or side of the air compressor, near the output hose or the air storage tank. It has a knob or dial for adjusting the pressure.

  3. Check the Existing Pressure Setting:

    • Look at the output pressure gauge, which shows the air pressure being supplied to your tools. Take note of the current reading, as you’ll need to know the current pressure before adjusting.

    • If your compressor has a tank pressure gauge, it will show the air pressure inside the storage tank, but this does not affect the output pressure regulated for your tools.

  4. Adjust the Regulator:

    • Increase Pressure: Turn the knob clockwise (to the right). This will compress the internal spring, allowing more air to flow through, which raises the output pressure.

    • Decrease Pressure: Turn the knob counterclockwise (to the left). This loosens the spring, reducing airflow, and lowering the output pressure.

    • Turn the Adjustment Knob/Dial: The regulator typically has a knob or dial on top or on the side. Turn it clockwise to increase the output pressure and counterclockwise to decrease the pressure.

  5. Check the Output Pressure Gauge:

    • After adjusting the knob, observe the output pressure gauge. It will show the new pressure value as you make adjustments.

    • Adjust the knob in small increments while checking the gauge to ensure you achieve the desired pressure.

  6. Set the Desired Pressure:

    • Set the output pressure to the optimal level required for your tools or equipment. For example, a pneumatic tool like a nail gun may need lower pressure (around 60-90 PSI), while air-powered tools like sandblasters may require higher pressure (up to 150 PSI or more).

    • If you’re unsure about the pressure required, refer to the manufacturer’s instructions for the tools you’re using.

  7. Test the Output Pressure:

    • Once the desired pressure is set, it’s a good idea to test the air supply by running the connected tool or equipment to ensure it operates efficiently and that the pressure remains stable.

  8. Secure the Regulator (if applicable):

    • Some regulators have a locking mechanism or screw that holds the adjustment knob in place after you’ve set the pressure. Make sure to tighten it to prevent the setting from changing inadvertently.

Additional Tips:

  • Pressure Range: Ensure you don’t set the output pressure higher than what is recommended for your tools. Excessive pressure can damage tools or create unsafe working conditions.

  • Use the Right Pressure for the Task: Tools typically require different pressures. Adjust the regulator based on the requirements of the task, not just the maximum possible output.

  • Regular Monitoring: Check the pressure frequently during long operations to ensure it remains consistent. Sometimes, the pressure can fluctuate, especially if the compressor is running out of stored air.


How to Change a Pressure Switch?

Changing a pressure switch in an air compressor involves replacing a faulty or worn-out pressure switch to ensure the compressor operates properly. Here’s a step-by-step guide on how to change the pressure switch:

Tools and Materials Needed:

  • Replacement pressure switch (make sure it matches your compressor model)

  • Wrench set or adjustable wrench

  • Screwdriver (if necessary)

  • Teflon tape (optional, for sealing threaded connections)

  • Safety gloves and goggles (for protection)

Steps to Change the Pressure Switch:

  1. Turn Off the Compressor:

    • Disconnect the power: Unplug the compressor from the electrical outlet or turn off the power supply to ensure safety while working on it.

    • Release Air Pressure: Open the drain valve on the air tank to release any built-up pressure. This step is important for safety and to prevent any accidental discharge of air during the replacement process.

  2. Locate the Pressure Switch:

    • The pressure switch is usually located near the motor, mounted on the compressor’s pump or tank. It will have two electrical wires connected to it and possibly air lines (for pressure sensing).

  3. Disconnect the Electrical Wires:

    • Use a wrench or pliers to loosen the nut or screw securing the electrical wires to the pressure switch.

    • Note the wire connections: Before disconnecting, take a picture or make a note of where each wire connects (often labeled “L” for line and “T” for terminal). This will help you reconnect the new pressure switch correctly.

  4. Disconnect the Air Lines (if necessary):

    • If the pressure switch has air lines connected, use a wrench to loosen and disconnect the air fittings. Be careful not to damage the threads.

    • In some models, there may be a sensing tube connected to the switch to monitor air pressure. Remove it carefully.

  5. Remove the Old Pressure Switch:

    • Using a wrench, unscrew the old pressure switch from the compressor. You may need to apply a little force if the switch is tightly fitted or corroded.

  6. Install the New Pressure Switch:

    • Before installing the new pressure switch, apply Teflon tape to the threads of the new switch (if it has threaded connections) to ensure a proper seal.

    • Screw the new pressure switch onto the compressor, tightening it securely with a wrench. Be careful not to overtighten, as this could damage the switch or the compressor.

  7. Reconnect the Air Lines:

    • If you disconnected air lines, reattach them to the new pressure switch. Tighten the connections using a wrench, ensuring there are no air leaks.

  8. Reconnect the Electrical Wires:

    • Reconnect the electrical wires to the new pressure switch, following the same wiring configuration as the old switch. Ensure that the connections are secure.

  9. Check for Leaks and Loose Connections:

    • Double-check all air and electrical connections to ensure they are tight and properly connected.

    • Inspect the area around the pressure switch for any signs of wear, damage, or leakage.

  10. Test the Compressor:

    • Plug the compressor back into the power supply or turn the power back on.

    • Turn the compressor on and let it build air pressure in the tank. Check if the compressor shuts off when it reaches the set pressure and turns on again when the pressure drops.

    • Observe the pressure switch to ensure it is working properly and that the compressor cycles on and off correctly.

Tips for a Successful Replacement:

  • Right Pressure Switch: Always use a replacement pressure switch that is compatible with your air compressor model. The switch should match the voltage and pressure range of the original one.

  • Consult the Manual: If you're unsure of the installation or wiring process, refer to the manufacturer’s manual for detailed instructions.

  • Safety First: Always take proper safety precautions, such as wearing gloves and goggles, to avoid injury from pressurized air or electrical components.
