What Are the Parts of an Air Compressor?

Air compressors are vital tools used across industries like manufacturing, automotive, and construction. They power various machines and tools, making operations efficient. However, understanding their parts is essential for proper maintenance and troubleshooting.


In this post, you'll learn about the key components of air compressors, their functions, and how they work together to keep your system running smoothly.


How Do Air Compressors Work?

Air compressors are vital tools in many industries. They use a simple but effective process to compress air and store it for later use.


Basic Working Principles

The basic principle behind an air compressor is to reduce the volume of air, which in turn increases its pressure. This is achieved through a series of steps:

  1. Air Intake: The compressor draws in ambient air through an intake valve.

  2. Compression: The air is then compressed, either by a reciprocating piston or rotating screws, depending on the type of compressor.

  3. Cooling: The compression process generates heat, so the air is often cooled before moving to the storage tank.

  4. Storage: The compressed air is stored in a tank until it's needed.

  5. Regulation: As air is used, the compressor will kick on and off to maintain pressure within a set range.


Compression Process

The compression process varies slightly depending on the type of compressor.


Reciprocating Compressors

In a reciprocating (piston) compressor:

  1. The piston moves down, drawing air into the cylinder through an inlet valve.

  2. The piston then moves up, compressing the air.

  3. The compressed air is forced out through an exhaust valve into the storage tank.


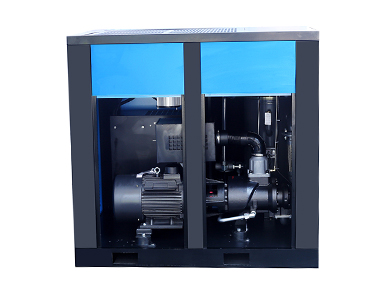

Rotary Screw Compressors

In a rotary screw compressor:

  1. Air enters the compression chamber, where it's trapped between two meshed helical screws (rotors).

  2. As the screws turn, the space between them decreases, compressing the air.

  3. The compressed air is then discharged into the storage tank.


In both types, an air filter cleans the incoming air, while a check valve prevents the compressed air from flowing back into the compressor. Safety valves protect against over-pressurization, and pressure switches control the motor based on tank pressure.


Many compressors also include an oil pump and lubrication system. It circulates oil to reduce friction, wear, and heat in moving parts. An air-oil separator removes this oil from the compressed air before it's used.


The compressed air is then ready for use in a variety of applications, from powering pneumatic tools to supplying air for industrial processes. The compressor will continue to cycle on and off, maintaining a steady supply of compressed air in the storage tank.

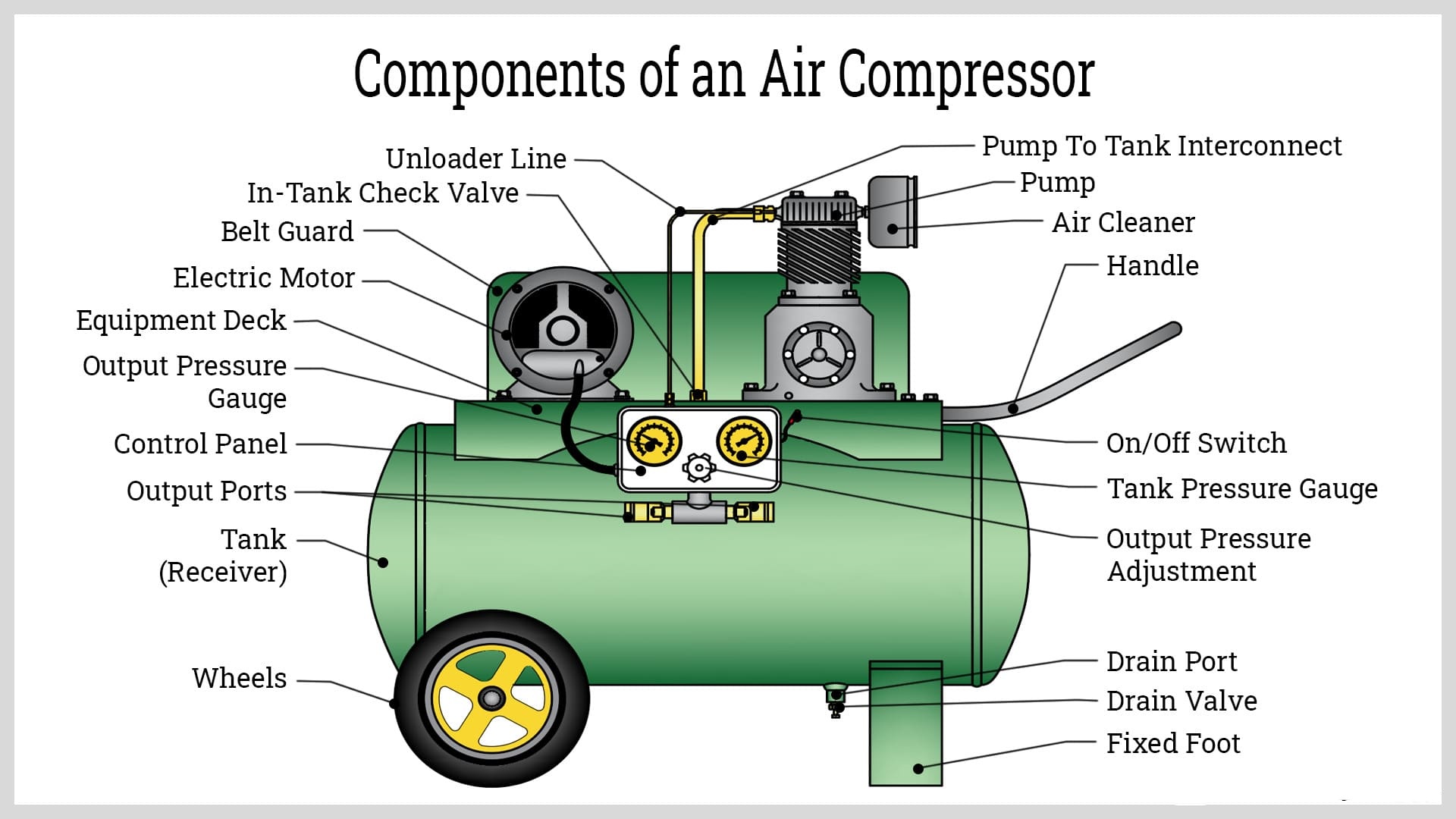

parts of an air compressor

Core Components of an Air Compressor

Let's dive into the heart of the air compressor - the core components that make it all happen. We'll explore the motor, the air end for rotary screw compressors, and the pump for reciprocating compressors.


Air Compressor Motor

The motor is the powerhouse of the compressor. Its role is to provide the mechanical energy needed to drive the compression process.


There are two main types of motors used in air compressors:

  1. Electric Motors: These can be either AC (alternating current) or DC (direct current). They're the most common type.

  2. Gas-Powered Motors: These use gasoline or diesel fuel for power. They're often used in portable or outdoor applications.

The power of the motor directly relates to the capacity of the compressor. A more powerful motor can drive a larger compressor, producing more compressed air.


Air End (Rotary Screw Compressors)

In rotary screw compressors, the air end is where the magic happens. It's the part that actually compresses the air.

The air end consists of:

  • Rotors: Two helical screws (one male, one female) that mesh together. As they turn, they reduce the volume of air, compressing it.

  • Inlet Valve: Controls the flow of air into the compressor.

  • Bearings: Support the rotors and ensure smooth rotation.

  • Seals: Prevent compressed air and lubricating oil from escaping.

  • Discharge Port: Where the compressed air exits the air end.

  • Housing: Encloses and protects all these components.


Many air ends also include an internal cooling system. It helps dissipate the heat generated during compression, improving efficiency.


Compressor Pump (Reciprocating Air Compressors)

In reciprocating air compressors, also known as piston compressors, the pump is the core component. It uses a piston-cylinder mechanism to compress the air.

The main parts of the pump are:

  • Cylinder: The chamber where compression takes place.

  • Piston: Moves up and down inside the cylinder, compressing the air.

  • Valves: Control the flow of air in and out of the cylinder.

    • Inlet Valve: Allows air into the cylinder.

    • Exhaust Valve: Allows compressed air out of the cylinder.

  • Connecting Rod: Connects the piston to the crankshaft.

  • Crankshaft: Converts the rotary motion of the motor into the reciprocating motion of the piston.


Some reciprocating compressors use a multi-stage design. This means they have multiple cylinders that compress the air in stages, allowing for higher pressures.


Understanding these core components is key to understanding how your air compressor works. It can also help you troubleshoot issues and perform maintenance tasks, like replacing seals or valves.


Remember, while the motor, air end, and pump are the heart of the compressor, there are many other important parts too. In the next section, we'll explore some of these essential supporting components.


Essential Supporting Components

Oil Pump and Lubrication System

Lubrication is crucial in air compressors. It reduces friction, wear, and heat generation in moving parts. The oil pump and lubrication system make this happen.


Key components include:

  • Oil Filter: Removes impurities from the oil.

  • Oil Cooler: Dissipates heat from the oil.

  • Air-Oil Separator: Removes oil from the compressed air.

  • Oil Sump: Stores the oil when it's not in use.

  • Oil Lines: Carry oil to where it's needed.

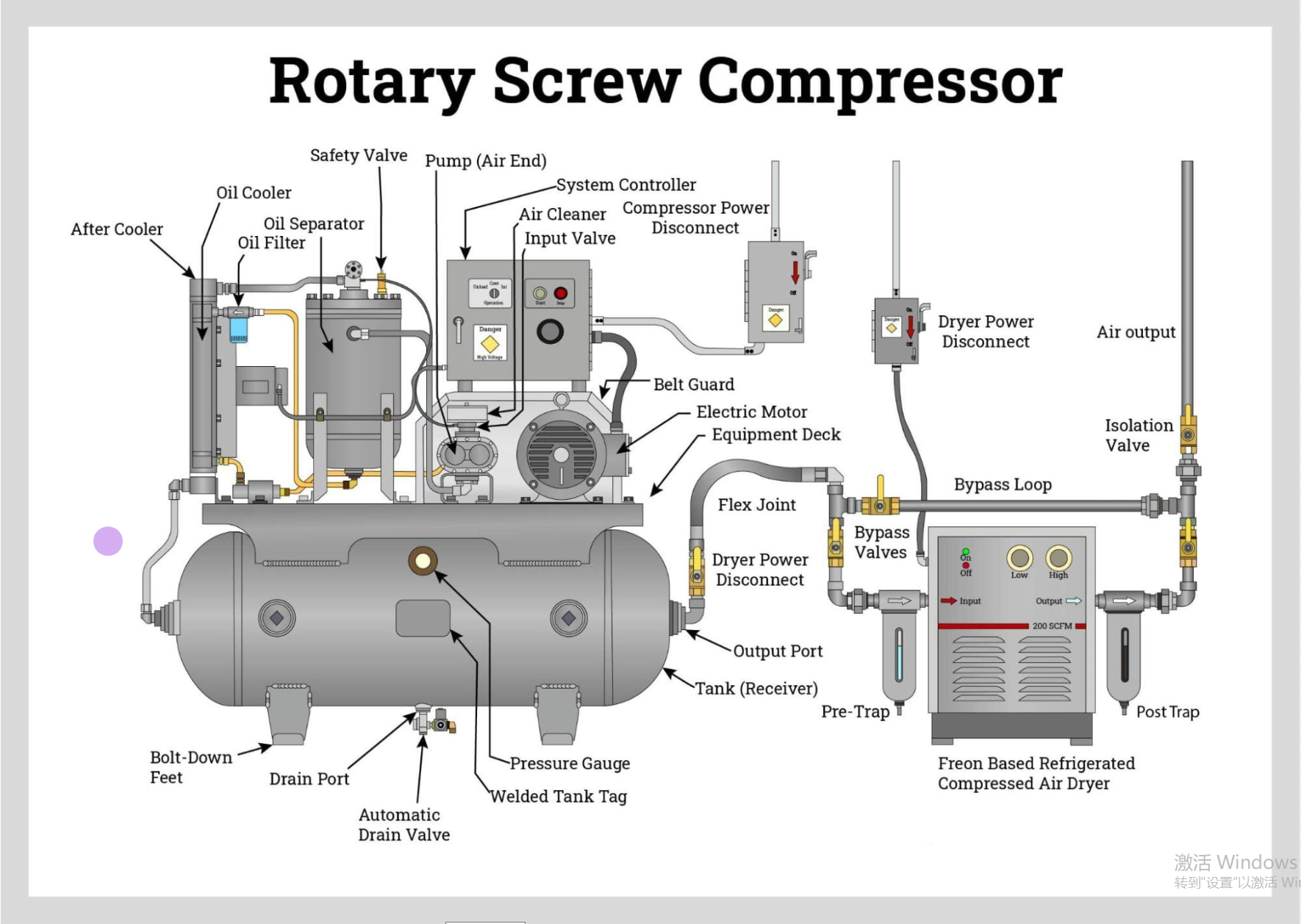

Rotary Screw Compressor


Pressure Gauges

Pressure gauges are the eyes of the compressor. They monitor the pressure in the system, usually in PSI (pounds per square inch) or bar. This information is vital for safe and efficient operation.


Check Valve

The check valve is like a one-way street. It allows compressed air to flow from the compressor to the tank, but not back again. This maintains consistent pressure and operation.


Safety Pressure Relief Valve

Safety is paramount, and that's where the pressure relief valve comes in. If the pressure gets too high, it automatically opens, releasing the excess pressure and preventing dangerous situations.


Unloader Valves

Unloader valves release trapped air when the compressor starts up. This ensures the motor can start smoothly, without having to fight against built-up pressure.


Pressure Switches

Pressure switches are the brain of the operation. They monitor tank pressure and tell the motor when to turn on and off. This maintains efficiency and safety by keeping the pressure within a set range.


Belts (Belt-Driven Compressors)

In belt-driven compressors, belts transmit power from the motor to the pump or air end. They're like the arms of the compressor, transferring energy where it's needed.


Regular inspection and replacement of belts is crucial. Worn or loose belts can slip, reducing efficiency and potentially causing damage.


Direct-drive compressors, on the other hand, have the motor directly connected to the pump or air end. They offer a more compact design and fewer maintenance points.


Air Filter

The air filter is like the nose of the compressor. It prevents dust, dirt, and contaminants from entering the system. This prolongs the life of the compressor and ensures cleaner output air.


Drain Valves

Drain valves are like the kidneys of the compressor. They remove accumulated moisture and condensate from the tank and lines. This can be done manually or automatically.


Removing this water is important to prevent corrosion and maintain air quality.


Gaskets

Gaskets are the seals that keep everything airtight. They prevent leaks between components. Regular checks and replacements are necessary to maintain optimal performance.


Vibration Pads

Vibration pads are like the shoes of the compressor. They reduce noise and prevent wear and tear from vibrations. This leads to quieter operation and longer component life.


Hoses and Connections

Hoses are the veins of the compressed air system. They carry the compressed air from the tank to where it's needed, whether that's a pneumatic tool or a machine.


Using the right hose is important. The length and gauge (inner diameter) of the hose affect air flow and pressure. A hose that's too long or too narrow can reduce efficiency.


Common hose issues include kinks and leaks. Regularly inspecting and replacing hoses can prevent these problems.


Maintenance Tips for Air Compressor Parts

Maintaining air compressor parts is essential for ensuring your compressor operates at peak performance and lasts a long time. Regular maintenance can prevent breakdowns, improve efficiency, and save you money in the long run.


Let's dive into some key maintenance tasks for crucial air compressor parts.


How to Clean Air Compressor Filters

The air filter prevents dust and debris from entering your compressor. Over time, it can get clogged, reducing air flow and putting strain on the motor.


To clean your air filter:

  1. Locate the filter. It's usually in a housing near the air intake.

  2. Remove the filter from the housing.

  3. Tap the filter gently to dislodge loose dirt.

  4. If it's very dirty, clean it with compressed air or wash it with soap and water. Let it dry completely before reinstalling.

  5. If the filter is damaged or extremely dirty, replace it.


Aim to clean or replace your air filter every few months, or more often if you use your compressor in a dusty environment.


How Often Should You Replace Your Air Compressor Oil?

If your compressor uses oil for lubrication, changing the oil regularly is crucial. The exact frequency depends on your model and usage, but a general rule is to change the oil every 500 to 1000 hours of use, or every 3 to 6 months.


To change the oil:

  1. Run the compressor for a few minutes to warm the oil, then turn it off.

  2. Locate the oil drain valve, usually at the base of the pump. Place a pan underneath to catch the oil.

  3. Open the valve and let the oil drain completely.

  4. Close the valve and refill with new oil to the level indicated on the sight glass or dipstick.


Always use the oil type recommended by your compressor's manufacturer.


Signs Your Compressor Hose Needs Replacement

The air hose carries compressed air from the tank to your tools. Over time, hoses can develop leaks or become brittle.


Signs it's time for a new hose:

  • Visible cracks or damage to the hose surface.

  • Leaks, which you can detect by applying soapy water and looking for bubbles.

  • Stiffness or brittleness, which can lead to cracks and leaks.


When replacing your hose, choose one rated for your compressor's maximum pressure and air flow. A hose that's too small can limit tool performance, while one that's too large can be unwieldy.


How to Test and Replace a Faulty Pressure Switch

The pressure switch controls the compressor's on/off cycle based on tank pressure. If it fails, your compressor may not start, may not stop running, or may cycle on and off rapidly.


To test your pressure switch:

  1. Unplug your compressor and drain the tank of air.

  2. Locate the pressure switch, usually on the side of the tank or near the motor.

  3. Remove the cover and disconnect the wires.

  4. Use a multimeter to test continuity across the terminals. The switch should have continuity when the pressure is low, and no continuity when the pressure is high.


If the switch fails the test, replace it with a new one of the same rating. This involves:

  1. Noting the wire connections and then disconnecting the old switch.

  2. Installing the new switch and reconnecting the wires.

  3. Adjusting the cut-in and cut-out pressure settings according to your compressor's specifications.

If you're unsure about any step, consult your compressor's manual or a professional.


Common Problems with Air Compressor Parts and Troubleshooting Tips

Even the best-maintained air compressors can run into problems from time to time. Knowing how to troubleshoot common issues can save you time and money. Let's look at some typical problems and how to solve them.


Why is my air compressor not building pressure?

If your compressor runs but doesn't build pressure in the tank, there could be several culprits:

  1. Motor Issues:

    • Check if the motor is running hot. If it is, it may be overloaded. This could be due to low voltage, wrong extension cord gauge, or a seized pump.

    • Inspect the capacitor and replace it if it's faulty.

    • The motor may need to be replaced if it's burnt out.

  2. Pump Problems:

    • A worn or damaged pump can't compress air effectively. Look for signs of wear, like scoring on the cylinder walls.

    • The inlet or discharge valves may be leaking, preventing proper compression. Replace them if needed.

    • The piston seal could be worn, allowing air to escape. Replace the seal.

  3. Hose and Connector Issues:

    • Check for leaks in the hoses and connections. Replace any damaged hoses and tighten or replace loose or faulty connectors.


Why is my air compressor leaking air?

Air leaks are a common problem that can reduce your compressor's efficiency and cause it to cycle on and off more frequently.

Common causes include:

  1. Worn Seals:

    • Over time, the seals in the pump, valves, and connections can deteriorate, allowing air to escape.

    • Replace worn seals to prevent leaks.

  2. Damaged Hoses:

    • Hoses can develop cracks or holes, especially if they're old or have been kinked.

    • Inspect hoses regularly and replace them if damaged.

  3. Loose Connections:

    • Vibrations can cause connections to loosen over time.

    • Check and tighten all connections, including those at the tank, pressure switch, and quick-connects.


How do I fix a noisy air compressor?

A noisy air compressor can be more than just annoying - it can be a sign of a problem.

Here are some potential causes and solutions:

  1. Motor Issues:

    • A worn or loose drive belt can cause squealing or slapping noises. Tighten or replace the belt as needed.

    • Worn bearings can cause grinding or rumbling noises. Replace the bearings.

    • If the motor hums but doesn't start, the capacitor may be faulty. Replace it.

  2. Pump Problems:

    • Worn or damaged pistons, cylinders, or bearings can cause knocking or rattling sounds. These parts may need to be replaced.

    • Loose flywheel, pulley, or belt guard can also cause rattling. Tighten these components.

  3. Fan Issues:

    • A loose or damaged fan can cause rattling or clicking sounds.

    • Tighten or replace the fan as needed.


Conclusion

Understanding your air compressor's parts is key to keeping it running smoothly. Familiarize yourself with your model's specific components. Regular maintenance and prompt issue resolution ensure efficient, reliable operation. With this knowledge, you can keep your compressor in top shape for years to come.
