Model: P -nm Series

Heatled Regerenerated Adsorption Air Dryer

Engineering Precision in Compressed Air Solutions & Construction Machinery

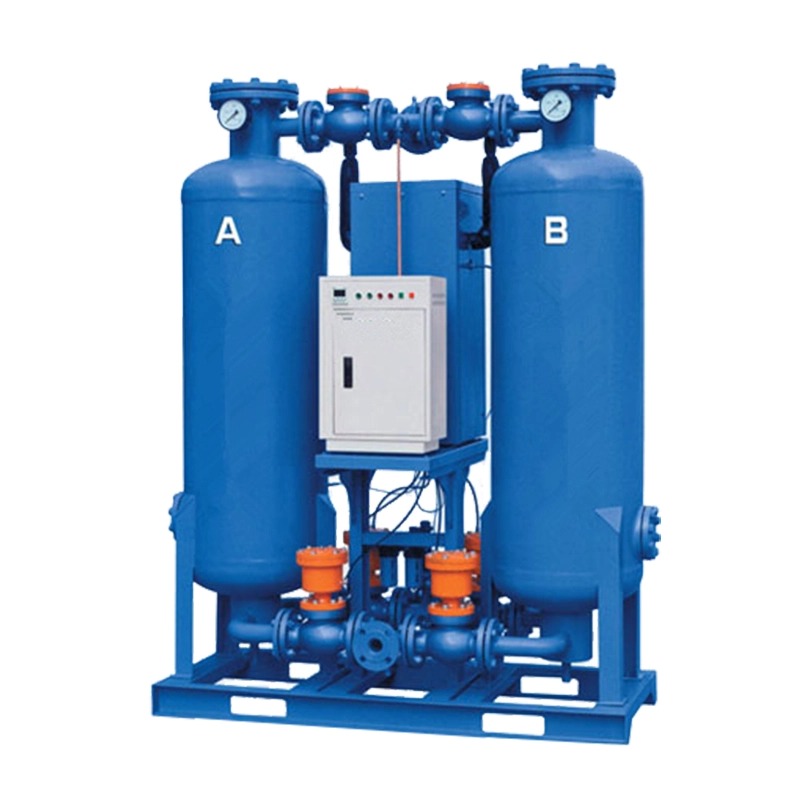

heatless adsorption air dryer
heatless adsorption air dryer

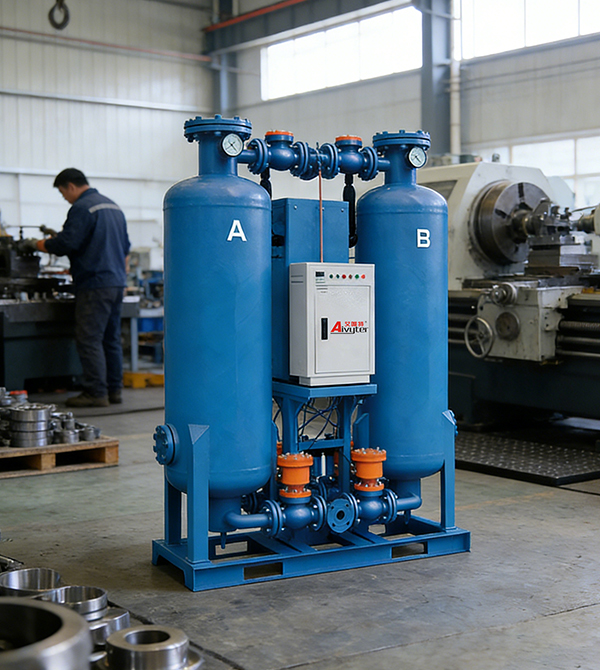

Technology Highlights

rotary air dryer
SpecificationValue
Rated inlet pressure0.7Mpa(0.6Mpa-1.0Mpa allowed)
Rated inlet temperature10℃-30℃(2℃-40℃ allowed)
Dew point of finished gas -40℃(customized below -40℃)
Ambient temperature≤45℃
Pressure damage ≤0.02Mpa
Intake oil content≤0.1mg/m3

ModelInlet TemperatureAir Flow (m3/min)Heating Power (kW)Loss of pressure(Mpa)Pipe DiameterDesiccant Weight (KG)Dimension(mm) LDimension(mm) WDimension(mm) HN.W.(KG)
P-1M0-45℃1.90.5≤0.02DN25258004501450280
P-2M0-45℃2.60.75≤0.02DN25508004501450400
P-3M0-45℃3.61.25≤0.02DN408210005001680550
P-5M0-45℃51.5≤0.02DN509810005001680600
P-6M0-45℃6.52.5≤0.02DN5011410008002060700
P-10M0-45℃103≤0.02DN6517010208002060900
P-13M0-45℃133.75≤0.02DN65235105085021801050
P-15M0-45℃155≤0.02DN80285105085021801100
P-20M0-45℃206.25≤0.02DN80365110090023001150
P-25M0-45℃267.5≤0.02DN80427125095023001300
P-30M0-45℃3010≤0.02DN1005331350100023501500
P-40M0-45℃4012.5≤0.02DN1007821500100026501700
P-50M0-45℃5015≤0.02DN1009331800110025001800
P-60M0-45℃6520≤0.02DN12510841800110025002000
P-80M0-45℃8025≤0.02DN12514432300120025502800
P-100M0-45℃10035≤0.02DN12518653000150025503500

Key Features

rotary air dryer
  • Rated inlet pressure: 0.7Mpa(0.6Mpa-1.0Mpa allowed)
  • Rated inlet temperature: 10℃-30℃(2℃-40℃ allowed)
  • Dew point of finished gas: -40℃(customized below -40℃)
  • Ambient temperature: ≤45℃
  • Pressure damage: ≤0.02Mpa
  • Intake oil content: ≤0.1mg/m3
  • Average regeneration gas consumption: 8-14%
  • Adsorbent: activated alumina+molecular sieve
  • Control mode: fully electronic programmable time control(dew point control is optional)

01. Reduce system complexity

No separate cooling system is required to pre cool high-temperature compressed air, simplifying the air handling process.

02. Cost savings

Due to reduced energy consumption and cost minimization, operating costs are lowered Maintenance requirements.

03. Improve air quality

Provide continuous dry compressed air to reduce the risk of moisture related issues in pneumatic tools and equipment.

04. Improve system efficiency

By directly and effectively processing high-temperature air, the overall efficiency of the compressed air system has been optimized.
