Model: P-n Series

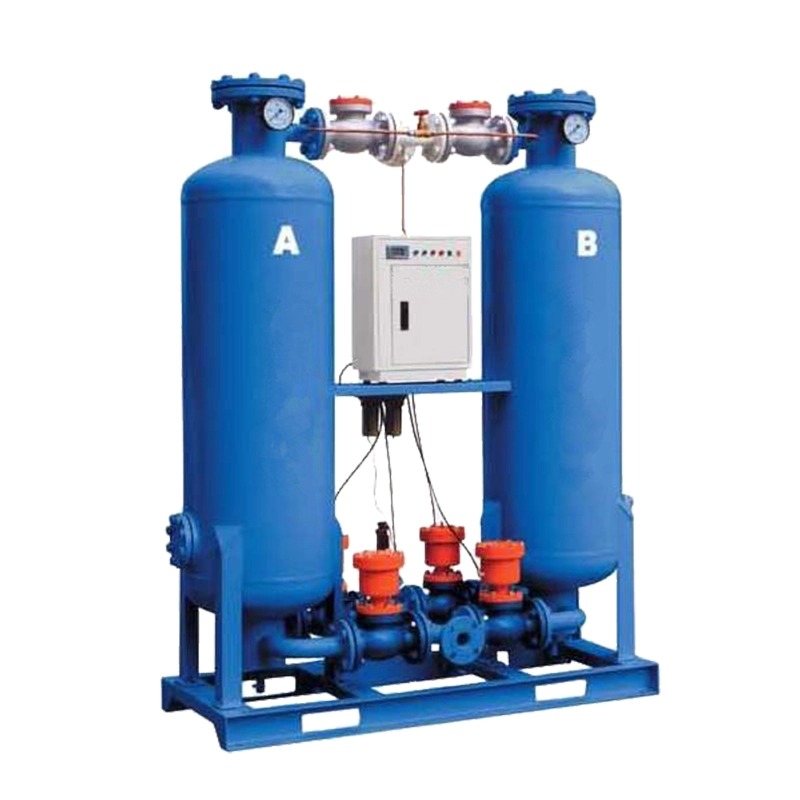

Heatless Regerenerated Adsorption Air Dryer
Engineering Precision in Compressed Air Solutions & Construction Machinery
Key Features
- Rated inlet pressure: 0.7Mpa(0.6Mpa-1.0Mpa allowed)
- Rated inlet temperature: 10℃-30℃(2℃-40℃ allowed)
- Dew point of finished gas: -40℃(customized below -40℃)
- Ambient temperature: ≤45℃
- Pressure damage: ≤0.02Mpa
- Intake oil content: ≤0.1mg/m3
- Average regeneration gas consumption: 8-14%
- Adsorbent: activated alumina+molecular sieve
- Control mode: fully electronic programmable time control(dew point control is optional)
01. Reduce system complexity
No separate cooling system is required to pre cool high-temperature compressed air, simplifying the air handling process.
02. Cost savings
Due to reduced energy consumption and cost minimization, operating costs are lowered Maintenance requirements.
03. Improve air quality
Provide continuous dry compressed air to reduce the risk of moisture related issues in pneumatic tools and equipment.
04. Improve system efficiency
By directly and effectively processing high-temperature air, the overall efficiency of the compressed air system has been optimized.
Why Choose Us?
Why Choose Us?
Since 2009 we have been leading the production and testing of air compressors and compressors in accordance with ISO UNI EN 9001 standards.
Proven Industry Expertise
Years of experience in mining and tunneling equipment.
Reliable solutions trusted by customers
across underground construction projects.
Reliable Quality & Support
Strict quality control from production to delivery.
Global service support and spare parts supply
ensure long-term, worry-free operation.
Manufacturing & Test
We design and manufacture high-quality, low-price air compressors, and gas compressors, all products are designed and manufactured in strict accordance with standards, with an advanced digital inspection line, each tool test data verification, and advanced testing and verification procedures to ensure the quality of each equipment delivery.
get in touch
Send a message to inquire about our products and services!
Call Support Agent 24/7
P: (86) 591-8375-3886
We’re committed to customer satisfaction by manufacturing quality products.
Ask us any questions you have
| Model | Inlet Temperature | Air Flow (m³/min) | Working Pressure (Mpa) | Loss of Pressure (Mpa) | Pipe Diameter | Desiccant Weight (KG) | L (mm) | W (mm) | H (mm) | N.W. (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| P-1 | 0-45℃ | 1.9 | 0.6–1.0 | ≤0.02 | DN25 | 25 | 800 | 450 | 1450 | 230 |
| P-2 | 0-45℃ | 2.6 | 0.6–1.0 | ≤0.02 | DN25 | 50 | 800 | 450 | 1450 | 320 |
| P-3 | 0-45℃ | 3.6 | 0.6–1.0 | ≤0.02 | DN40 | 82 | 1000 | 500 | 1680 | 450 |
| P-5 | 0-45℃ | 5 | 0.6-1.0 | ≤0.02 | DN50 | 98 | 1000 | 500 | 1680 | 500 |
| P-6 | 0-45℃ | 6.5 | 0.6–1.0 | ≤0.02 | DN50 | 114 | 1000 | 800 | 2060 | 600 |
| P-10 | 0-45℃ | 10 | 0.6–1.0 | ≤0.02 | DN65 | 170 | 1020 | 800 | 2060 | 800 |
| P-13 | 0-45℃ | 13 | 0.6–1.0 | ≤0.02 | DN65 | 235 | 1050 | 850 | 2180 | 950 |
| P-15 | 0-45℃ | 15 | 0.6–1.0 | ≤0.02 | DN80 | 285 | 1050 | 850 | 2180 | 1000 |
| P-20 | 0-45℃ | 20 | 0.6–1.0 | ≤0.02 | DN80 | 365 | 1100 | 900 | 2300 | 1000 |
| P-25 | 0-45℃ | 26 | 0.6–1.0 | ≤0.02 | DN80 | 427 | 1250 | 950 | 2300 | 1200 |
| P-30 | 0-45℃ | 30 | 0.6–1.0 | ≤0.02 | DN100 | 533 | 1350 | 1000 | 2350 | 1300 |
| P-40 | 0-45℃ | 40 | 0.6–1.0 | ≤0.02 | DN100 | 782 | 1500 | 1000 | 2650 | 1500 |
| P-50 | 0-45℃ | 50 | 0.6–1.0 | ≤0.02 | DN100 | 933 | 1800 | 1100 | 2500 | 1550 |
| P-60 | 0-45℃ | 65 | 0.6–1.0 | ≤0.02 | DN125 | 1084 | 1800 | 1100 | 2500 | 1800 |
| P-80 | 0-45℃ | 80 | 0.6–1.0 | ≤0.02 | DN125 | 1443 | 2300 | 1200 | 2550 | 2500 |
| P-100 | 0-45℃ | 100 | 0.6–1.0 | ≤0.02 | DN125 | 1865 | 3000 | 1300 | 2800 | 3000 |
