SCFM TO CFM: Conversion Guide& Conversion Chart

When Choosing an Air Compressor: Mastering SCFM to CFM Conversion

w hen choosing an air compressor, the key to ensuring optimal performance lies in mastering the conversion between Standard Cubic Feet per Minute (SCFM) and Cubic Feet per Minute (CFM). This guide offers a deep dive into effectively converting SCFM to CFM, critical for matching air compressors to varied environmental conditions and operational demands. Armed with comprehensive conversion charts, straightforward formulas, and practical usage examples, you’ll gain the necessary insights to select and operate your air compressor with precision, ensuring maximum efficiency in any setting.

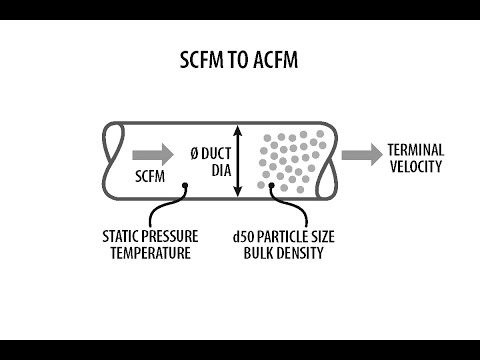

SCFM TO ACFM

What is SCFM?

Definition and Key Concepts

SCFM, or Standard Cubic Feet per Minute, is a measurement of air flow that is normalized to agreed-upon reference conditions, typically 68°F (20°C) and 14.7 psi (101.3 kPa) at sea level. This standardization allows for the comparison of the performance of pneumatic devices like air compressors under various environmental conditions without the discrepancies that can arise from different ambient temperatures or pressures.

The Importance of SCFM in Air Compressors

SCFM plays a vital role in evaluating and selecting air compressors, as it provides a baseline by which all machines can be compared regardless of the operational environment. This is especially important for industries operating across different climates where air density can vary significantly. For example, an air compressor rated for a higher SCFM will be more capable of driving pneumatic tools effectively at higher altitudes where the air is thinner, compared to another with a lower SCFM rating under the same conditions.

SCFM in Industrial Applications

SCFM is crucial in determining the efficiency of air compressors used in various industries. Different industrial applications have specific SCFM requirements to ensure that pneumatic tools and machinery operate effectively. If an air compressor fails to meet the necessary SCFM, tools may underperform, resulting in decreased productivity and potential equipment damage.

当选择空气压缩机时，了解你的工具和应用场景所需的 SCFM 非常重要。计算总 SCFM 需求时，需要将所有同时运行的工具的 SCFM 需求相加，以确保空压机能够满足需求并保持最佳性能。

Consider a typical manufacturing setup employing various pneumatic tools:

如果所有这些工具同时使用，总 SCFM 需求为：15 + 20 + 30 + 25 = 90 SCFM。在这种情况下，需要至少 90 SCFM 额定值的空压机，才能确保所有设备高效可靠地运行。

What is CFM?

Definition and Key Concepts

CFM, or Cubic Feet per Minute, measures the actual flow rate of air delivered by an air compressor. This metric is vital for determining how much air passes through the compressor’s outlet at any given minute and is crucial for all operations that rely on compressed air.

CFM and Its Role in Compressed Air Systems

CFM is integral to the performance of compressed air systems, as it indicates the volume of air available to power various pneumatic tools. It’s essential to match the CFM output of an air compressor with the CFM requirements of the tools it powers. Insufficient CFM can lead to inadequate tool performance, which can slow down production lines, increase wear and tear on tools, and raise operational costs due to inefficiencies.

Common Applications for CFM

CFM requirements vary significantly across different tools and applications, making it crucial to choose an air compressor that can meet the demands of the most demanding tool in use. Here’s a chart illustrating typical CFM requirements for various pneumatic tools:

例如，如果车间同时使用砂喷机 (20 CFM) 和 HVLP 喷漆枪 (12 CFM)，则空压机至少需要提供 32 CFM，以确保两台工具的最佳性能。这强调了精确转换 SCFM 到 CFM 的重要性，因为环境因素会影响实际可用的 CFM，从而影响工具效率。

Differences Between SCFM and CFM

Understanding the distinctions between Standard Cubic Feet per Minute (SCFM) and Cubic Feet per Minute (CFM) is crucial for professionals needing to convert SCFM to CFM. These metrics, while related, measure different aspects of air flow in compressed air systems. SCFM provides a standardized measure that facilitates comparisons under different environmental conditions, while CFM reflects the real-time air flow and is crucial for assessing the actual performance of air compressors and pneumatic tools.

Comparison Table of SCFM vs. CFM

Factors Affecting SCFM and CFM

To accurately apply SCFM and CFM in various settings, it is crucial to understand how environmental factors influence these measurements. Differences in temperature, atmospheric pressure, and humidity can alter air density and flow, impacting how air compressors perform under different conditions. SCFM adjusts for these variables to provide a consistent basis for comparison, while CFM measures the actual air flow based on current environmental conditions, making it vital for operational assessments.

• Temperature: As air temperature increases, air density decreases, which can affect both SCFM and CFM. SCFM is adjusted to account for these changes based on standard conditions, whereas CFM reflects the immediate impact of temperature changes.
• Atmospheric Pressure: Changes in atmospheric pressure, which can be influenced by altitude, directly affect air density and, consequently, both SCFM and CFM. SCFM adjustments nullify these effects to maintain consistent measurements.
• Humidity: The presence of water vapor in the air can also alter air density. High humidity levels can decrease the density of air, influencing the CFM but typically not the SCFM, which is corrected for such variables.

Why Convert SCFM to CFM?

Importance of Conversion in Air Compressor Selection

When selecting an air compressor, it is crucial to ensure that the unit can provide sufficient airflow to power all necessary pneumatic tools. SCFM provides a theoretical value measured under standard conditions, which often differs from real-world conditions where the equipment operates. Converting SCFM to CFM adjusts these values to reflect actual conditions, ensuring the compressor’s capacity meets the tools’ demands. This conversion is essential for maintaining tool efficiency and preventing equipment overload, which can lead to downtime and increased maintenance costs.

Practical Application Scenarios

Accurately converting SCFM to CFM is critical in various scenarios, particularly when equipment must operate in environments different from the standard conditions under which their SCFM was rated. For example:

• Selecting Compressors for Different Climates: Air density varies with altitude and temperature, affecting the compressor’s performance. A compressor that delivers 100 SCFM at sea level won’t perform the same at a high-altitude location unless its CFM output is recalculated to reflect these conditions. Accurate conversion ensures that the compressor can handle the required workload without underperforming.
• Ensuring Compliance with Safety Standards: In industries where precise air pressure is crucial, such as in chemical manufacturing or pharmaceuticals, ensuring the correct CFM output is necessary for safe and effective operations. Over- or under-pressurization can lead to safety hazards and production issues.
• Energy Efficiency: Operating a compressor that is either too large or too small for the required CFM output can lead to inefficient energy use. Proper conversion from SCFM to CFM helps in selecting a compressor that operates efficiently under given environmental conditions, reducing energy costs and helping to meet sustainability goals.

How to Convert SCFM to CFM: A Step-by-Step Guide

The Conversion Formula

To convert Standard Cubic Feet per Minute (SCFM) to Cubic Feet per Minute (CFM), you can use the following formula, which adjusts for differences in temperature and pressure:

CFM = SCFM × (Pa / Pr) × (Tr / Ta)

该公式考虑了影响空气体积的环境条件变化，使你能够估算压缩机在特定工作环境下实际能提供的空气量。

• Pa: Actual pressure where the compressor is operating, measured in pounds per square inch (PSI).
• Pr: Reference pressure, typically the standard atmospheric pressure at sea level, which is 14.7 PSI.
• Tr: Reference temperature, usually the standard room temperature in Kelvin, which is 298 K (25°C).
• Ta: Actual temperature of the air where the compressor operates, also in Kelvin.

Step-by-Step Calculation

Let’s walk through an example to demonstrate how to apply the SCFM to CFM conversion formula:

1. Identify the Variables:
   • Suppose an air compressor has an SCFM rating of 100 SCFM.
   • The compressor is operating at a higher altitude where the actual pressure (Pa) is 13.5 PSI.
   • The actual temperature (Ta) at this location is cooler, say 278 K (5°C).
2. Use the Standard Conditions for Reference:
   • Reference pressure (Pr) = 14.7 PSI.
   • Reference temperature (Tr) = 298 K.
3. Plug in the Values into the Formula:

   CFM = 100 SCFM × (13.5 PSI / 14.7 PSI) × (298 K / 278 K)

4. Calculate Ratios:
   • 压力比 (13.5 / 14.7) ≈ 0.918
   • 温度比 (298 / 278) ≈ 1.072
5. Multiply These Ratios by the SCFM:

   100 × 0.918 × 1.072 ≈ 98.4 CFM

6. Result:

   The adjusted CFM, considering the actual operating conditions, is approximately 98.4 CFM.

Practical Example: Converting 150 SCFM to CFM

To further illustrate the conversion process, let’s consider another practical scenario:

• Given:
  • A tool requires 150 SCFM to operate effectively.
  • The tool will be used in a facility where the actual pressure is 12.3 PSI due to its elevation, and the temperature is 285 K.
• Reference Conditions:
  • Standard pressure (Pr) = 14.7 PSI.
  • Standard temperature (Tr) = 298 K.
• Conversion Calculation:

  CFM = 150 SCFM × (12.3 PSI / 14.7 PSI) × (298 K / 285 K)

  • 压力比 (12.3 / 14.7) ≈ 0.837
  • 温度比 (298 / 285) ≈ 1.046
  • 计算: 150 × 0.837 × 1.046 ≈ 130.9 CFM
• Result:

  在实际条件下，150 SCFM 大约相当于 130.9 CFM。

SCFM to PSI: Conversion Table

以下表格示例展示了在不同 PSI 下 SCFM 与对应 CFM 的大致关系（仅作参考，实际应结合具体环境因素和制造商数据）：

Conclusion

In this guide, we’ve explored the critical importance of converting SCFM to CFM for optimizing air compressor performance. Accurate SCFM to CFM conversion ensures your tools operate efficiently under varying conditions, crucial for maintaining productivity and system reliability. For professional advice tailored to your specific needs, don’t hesitate to contact Aivyter Company. Let us help you select the perfect air compressor solution, ensuring you achieve the best results in your operational environment.

Reference Sources

• Standard cubic feet per minute (SCFM)

Frequently Asked Questions

Q: What is SCFM and CFM in air compressors?

A: SCFM (Standard Cubic Feet per Minute) measures air flow under set conditions, while CFM (Cubic Feet per Minute) indicates the actual flow rate under operating conditions.

Q: How do you calculate SCFM from CFM?

A: To calculate SCFM from CFM, adjust the CFM by the differences in temperature, pressure, and humidity relative to standard conditions.

Q: What is the method to convert CFM to SCFM?

A: Convert CFM to SCFM by applying corrections for atmospheric pressure, temperature, and relative humidity to reflect standard conditions.

Q: How can you convert actual CFM to SCFM?

A: Convert actual CFM to SCFM by using the formula: SCFM = CFM x (Pstd / Pactual) x (Tactual / Tstd) where P is pressure and T is temperature.

Q: Does SCFM increase as PSI decreases?

A: Yes, SCFM typically increases as PSI (Pounds per Square Inch) decreases, due to less air being compressed into a given volume.

Q: How do I determine the correct CFM for my air compressor?

A: Add up the CFM requirements of all tools that will be used simultaneously to ensure your air compressor meets the demand.

Q: Why is SCFM important in selecting an air compressor?

A: SCFM is important because it represents standardized air flow, helping to compare compressor performance accurately across different brands and conditions.

Q: What if CFM is too high?

A: A CFM rating too high can lead to increased operational costs and energy waste, potentially overloading the air system.
