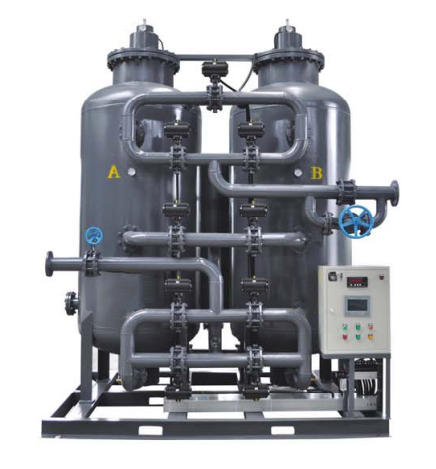

PSA N2 Generator

Advanced inequality pressure equalization process improves the utilization of carbon molecular sieve and directly reduces compressed air consumption.

PSA N2 Generator

Not Sure Which Model to Choose?

Contact our compressor experts for personalized advice, free sizing recommendations, and a tailored quote.

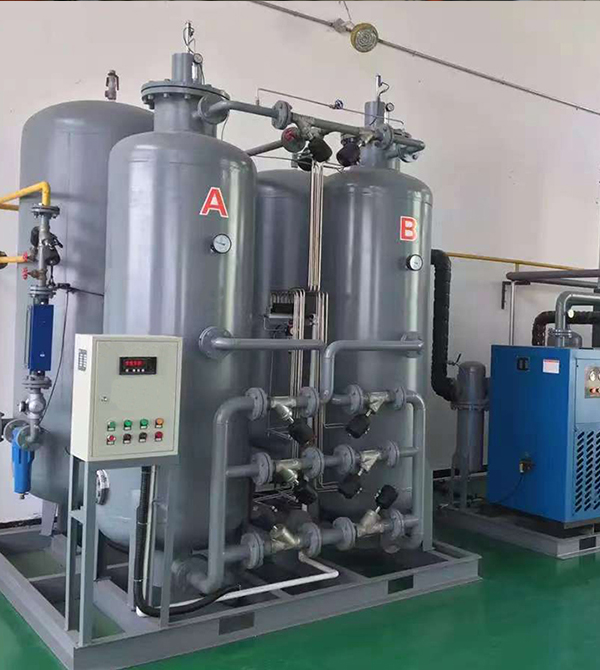

Technology Highlights

SpecificationValue
N2 flow5- 2500 m3/h
N2 purity99.5%
N2 outlet pressure3-6bar
Air consumption0.35-138.25 m3/min
ModelN2 Flow m3/hAir Consumption Nm3/minInlet Nominal Diameter DN(mm)Outlet Nominal Diameter DN(mm)Air Purification System
SPN99.9-550.352515SPN-1
SPN99.9-10100.692515SPN-1
SPN99.9-15151.042515SPN-2
SPN99.9-20201.382515SPN-2
SPN99.9-25251.733215SPN-2
SPN99.9-30302.083220SPN-3
SPN99.9-40402.774020SPN-3
SPN99.9-50503.474020SPN-6
SPN99.9-60604.164020SPN-6
SPN99.9-70704.855020SPN-6
SPN99.9-80805.535020SPN-6
SPN99.9-1001006.915025SPN-10
SPN99.9-1201208.35025SPN-10
SPN99.9-15015010.375032SPN-15
SPN99.9-18018012.446532SPN-16
SPN99.9-20020013.836532SPN-16
SPN99.9-25025017.286540SPN-20
SPN99.9-30030020.748040SPN-30
SPN99.9-35035024.198040SPN-30
SPN99.9-40040027.658050SPN-30
SPN99.9-45045031.1110050SPN-40
SPN99.9-50050034.5610050SPN-40
SPN99.9-60060041.4810050SPN-50
SPN99.9-80080055.312565SPN-60
SPN99.9-1000100069.1312565SPN-80
SPN99.9-1200120082.9515065SPN-80
SPN99.9-15001500103.6915080SPN-150
SPN99.9-20002000138.25200100SPN-150

Key Features

psa oxygen concentrator

Advanced internal structure, air flow deceleration, uniform distribution, reduce the impact force on the molecular sieve, and improve the service life of the molecular sieve
We cooperate with well-known molecular sieve manufacturers at home and abroad, and can choose the most energy-saving and efficient ratio according to actual working conditions.

01. Intelligent Control Panel

High-definition touch screen with emergency stop and key switch for real-time monitoring, fault alerts, and automated operation.

02. Advanced PSA Adsorption System

Two-bed molecular sieve separates nitrogen from air efficiently at room temperature, delivering high-purity nitrogen continuously.

03. Precision Pressure Regulation

Accurate pressure control stabilizes gas flow and ensures consistent nitrogen quality.

04. Real-time Gas Display

Sensors show nitrogen purity and system pressure for safe, reliable operation.
