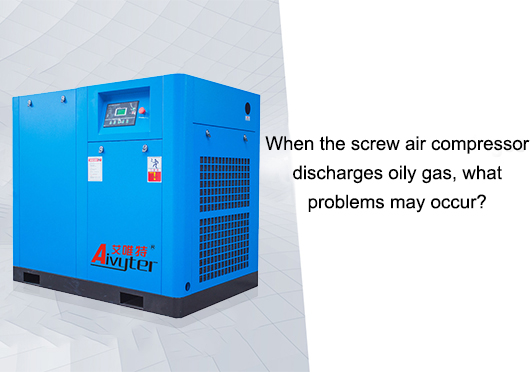

When the Screw Air Compressor Discharges Oily Gas, What Problems May Occur?

The screw air compressor gas produced in some special industries has higher requirements, especially the textile industry and food industry. The compressed air is required to be oil-free, which basically reaches the oil-free compressed air. So when the screw air compressor gas fails, how to solve it? Let me take you to analyze the main reasons for the failure of draining oil?1.The oil and gas separation core is damaged         During the operation of the screw air compressor, if the oil separation phenomenon of the filter element is damaged by perforation, etc., it will lose the function of separating oil and gas, that is, the mixed gas and the exhaust pipe of the compressor are directly connected. Therefore, a lot of oil in the air is not isolated and will follow. The gas is expelled from the body together, and is produced together with the oil during the exhaust process2. Failure of oil return pipe       In the working process of the screw compressor, it shoulders the important responsibility of the return pipeline. The oil separation between the inside of the oil core and the compressor inlet will form a pressure difference. Under the action of this pressure difference, it will reach the bottom of the pipeline. , Responsible for returning the oil separation core oil to the compressor. If the oil return plug is broken and incorrectly installed during the next cycle, the separated oil core will not be gathered at the bottom, and the oil will be accumulated to the bottom. It is caused by excessive oil accumulation at the bottom of the backlog. Therefore, this part of the engine oil will appear in the process of oil discharge along with the discharge of gas.3. System pressure control is too low         During operation of the screw compressor, the pressure control system is too low, the speed will cause excessive internal gas separator, the separator thus acting not been fully reflected, it will lead to the next link in the gas separator oil high internal core content has exceeded its separation range, has led to incomplete separation of oil and gas, there has been a failure in the fuel cut during the compressor discharge4. Minimum pressure valve failure         During operation of the screw compressor, the role is to ensure that the minimum pressure valve in the pressure control operation of the system above the minimum pressure. If the minimum pressure valve malfunction, the system will not guarantee a minimum pressure, resulting in a failure occurs in the flat oil exhaust process5.Too much cooling oil is added to the compressor      In front of the screw compressor operation, to join the cooling oil too much, so in the process of the operation of the compressor, due to the oil level is too high, although separation system to isolate the oil and gas, but in the gas emissions will also involved in the cooling oil gas emissions, the emissions of high oil content, with oil problems6.The cooling oil is not up to standardBefore the compressor runs, unqualified cooling oil is added, or the cooling oil exceeds the applicable time, and the cooling effect cannot be achieved. In this case, during the running process of the screw compressor, the cooling oil loses its function and the oil and gas cannot be cooled and separated. Therefore, oil fault is bound to occur in the exhaust processThe following are some common troubleshooting solutions Damage to the oil separation core The damage of the oil separation core is a common phenomenon. Therefore, the equipment needs to be inspected before the screw compressor is operated. The operation should be strictly carried out in accordance with the instruction manual during use. After use, the maintenance of the equipment should regularly find oil separation damage to the core and perforations. Should be replaced in time, and ensure the normal operation of the equipmentThere is a problem with the return circuitDuring the operation of the equipment, if the oil return circuit is blocked, the pressure drop of the separator should be checked first. If there is no problem with the pressure drop, the core of the oil separator should be cleaned. If the core of the oil separator is broken, it should be replaced in timeLow system pressure control problemFor operators, they should be familiar with the control pressure of the equipment and reduce the burden on the system when problems are found, so that the system pressure can reach the rated working pressure.Minimum pressure valve failure problemIn actual operation, if the minimum pressure valve is found to be invalid, it must be replaced, and work should be performed after replacement.The problem of adding too much cooling oil to the compressorWhen adding cooling oil to the compressor, you should first know the theoretical value of how much cooling oil should be added to the equipment. A dedicated person should be responsible for the addition of cooling oil, which should usually be controlled below the middle of the rearview mirrorCooling oil quality problemThe addition of cooling oil should be strictly in accordance with the equipment’s requirements for adding cooling oil. Because different equipment has different requirements for cooling oil, it should be recorded after the addition time. After the cooling oil is used up, it should be replaced on time to add cooling oil. Qualified quality should be strictly controlled to prevent the addition of unqualified cooling oil
