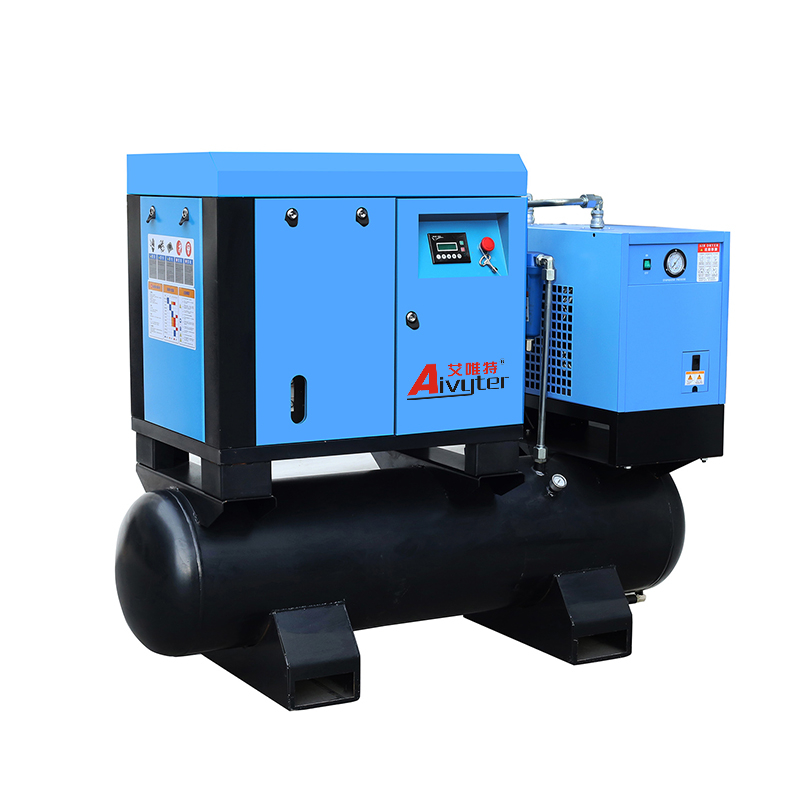

10Hp 7.5kW All In One Screw Air Compressor With Air Tank

The combined screw air compressor is convenient for users to install, use and move. After the air passes through the integrated system, the air quality will be greatly improved to meet the technological requirements of various enterprises.

Product Name: 4-in-1 screw air compressor
Type: Oil-injected/lubricated
Power Range: 7.5kW/10Hp
Air Flow Range: 0.8m3/min - 1.2m3/min
Pressure Range: 8bar ,10bar
Cooling System: Air Cooling or Water Cooling
Power Source: AC Power 380V/3P/50HZ, can be customied.
Structure Type: Closed Type
Trademark: aivyter , OEM
Color:according to your needs
Certificate: CE, SGS...
Min. Order: 1 piece
Lead Time:7~30 Day
Warranty: One Year
Transport Package: Wooden box
Trade term: CIF, CFR, FOB...

Availability:
Quantity:
  • SGAT 08

Description:

Introducing our 10Hp 7.5kW All In One Screw Air Compressor With Air Tank, a powerful and reliable solution designed to meet your compressed air needs. This all-inclusive system combines exceptional performance, energy efficiency, and convenience, making it the ideal choice for various industrial applications.


Unmatched Performance:

With a robust 10 horsepower (10Hp) motor and a high-efficiency 7.5 kilowatt (7.5kW) screw compressor, this system delivers outstanding performance, ensuring a steady and consistent supply of compressed air. It is capable of providing sufficient air pressure and volume to support demanding operations in factories, workshops, and more.


All-In-One Design:

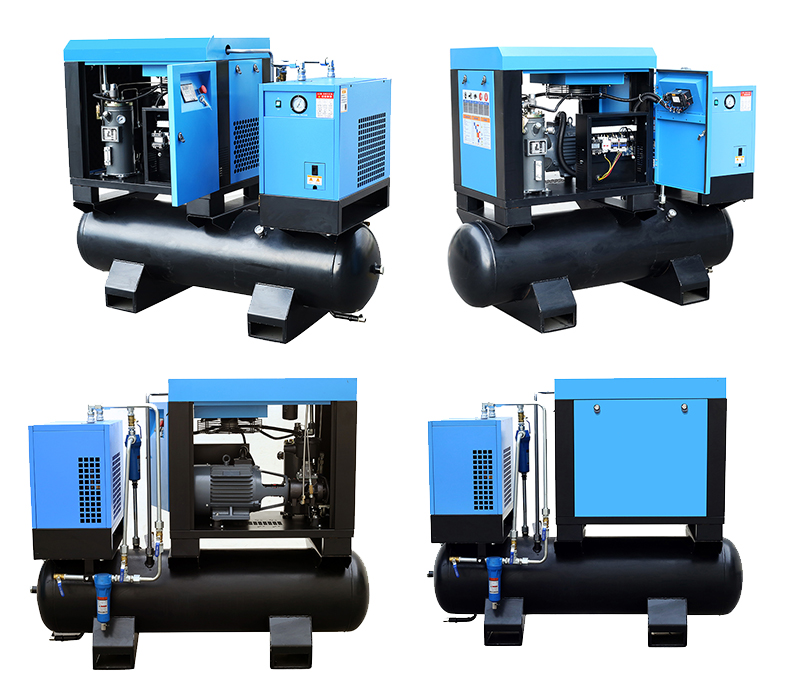

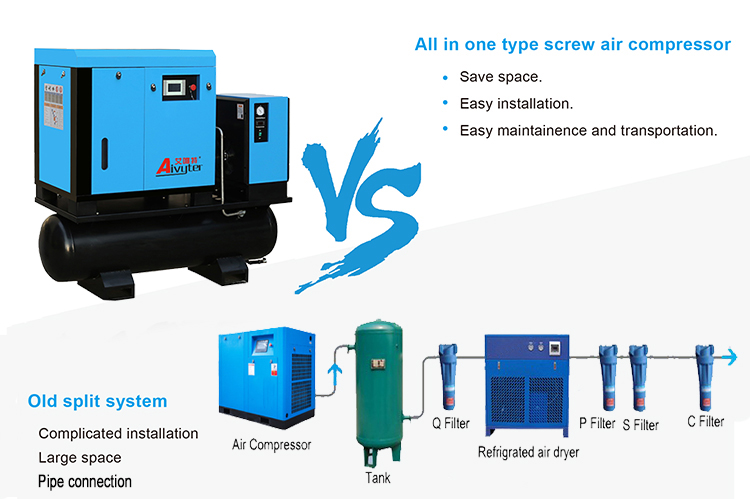

Our All In One Screw Air Compressor is engineered to integrate all essential components into a compact and space-saving unit. It includes the screw compressor, air tank, dryer, filters, and control system, eliminating the need for separate installations. This streamlined design not only saves valuable floor space but also simplifies installation and maintenance processes.


Enhanced Efficiency:

Equipped with advanced technology, this compressor operates with remarkable energy efficiency. The 7.5kW motor optimizes power consumption, reducing energy costs and minimizing environmental impact. The integrated air tank ensures a stable air supply, reducing the workload on the compressor and promoting energy savings during peak usage.


Reliable Air Storage:

The included air tank provides a reliable storage solution, allowing for increased air capacity and reducing the frequency of compressor cycling. This ensures a consistent and uninterrupted supply of compressed air, even during high-demand periods. The air tank also acts as a buffer, reducing pressure fluctuations and extending the lifespan of the compressor.


Versatile Applications:

Designed to cater to a wide range of applications, our All In One Screw Air Compressor is suitable for various industries, including manufacturing, automotive, construction, and more. Whether it's powering pneumatic tools, operating production lines, or supporting industrial processes, this compressor offers the versatility and performance you need.

Quality and Peace of Mind:

Our 10Hp 7.5kW All In One Screw Air Compressor With Air Tank is manufactured to the highest standards, ensuring exceptional quality and durability. It is backed by rigorous quality control measures and meets international certifications, guaranteeing reliable performance and peace of mind for our customers.


Experience Efficiency and Convenience:

With its powerful performance, compact design, and integrated features, our 10Hp 7.5kW All In One Screw Air Compressor With Air Tank is the ultimate solution for your compressed air needs. Experience enhanced efficiency, reduced energy costs, and simplified installation with this versatile and reliable compressor.

Product Specifications:


Model Motor Power Working Pressure Capacity Air tank (L) Air Outlet Net Weight Dimension (mm) Start Method
Noise
dB(A)
kW/hp psi bar cfm m3/min KGS L*W*H
SGAT08 7.5/10 116 8 38.84  1.1 350 G1/2'' 350 1850*700*1460 Y-△ 66±2
145 10 32.00  0.90
SGAT11 11/15 116 8 52.97  1.5 350 G3/4’’ 450 1850*750*1640 68±2
145 10 45.90  1.3
174 12 38.84  1.1
SGAT15 15/20 116 8 81.00  2.3 350 G3/4" 450 1850*750*1640 68±2
145 10 74.00  2.1
174 12 67.10  1.9
SGAT22 22/30 116 8 127.10  3.6 350 G1" 660 2050*850*1780 68±2
145 10 113.00  3.2
174 12 95.30  2.7
SGAT08PM 7.5/10 116 8 39.00  1.1 350 G1/2'' 350 1850*700*1460 Frequency Conversion 66±2
145 10 32.00  0.90
SGAT11PM 11/15 116 8 52.97  1.5 350 G3/4’’ 450 1850*750*1640 68±2
145 10 45.90  1.3
174 12 38.84  1.1
SGAT15PM 15/20 116 8 81.00  2.3 350 G3/4" 450 1850*750*1640 68±2
145 10 74.00  2.1
174 12 67.10  1.9
SGAT22PM 22/30 116 8 127.10  3.6 350 G1" 660 2050*850*1780 68±2
145 10 113.00  3.2
174 12 95.30  2.7
