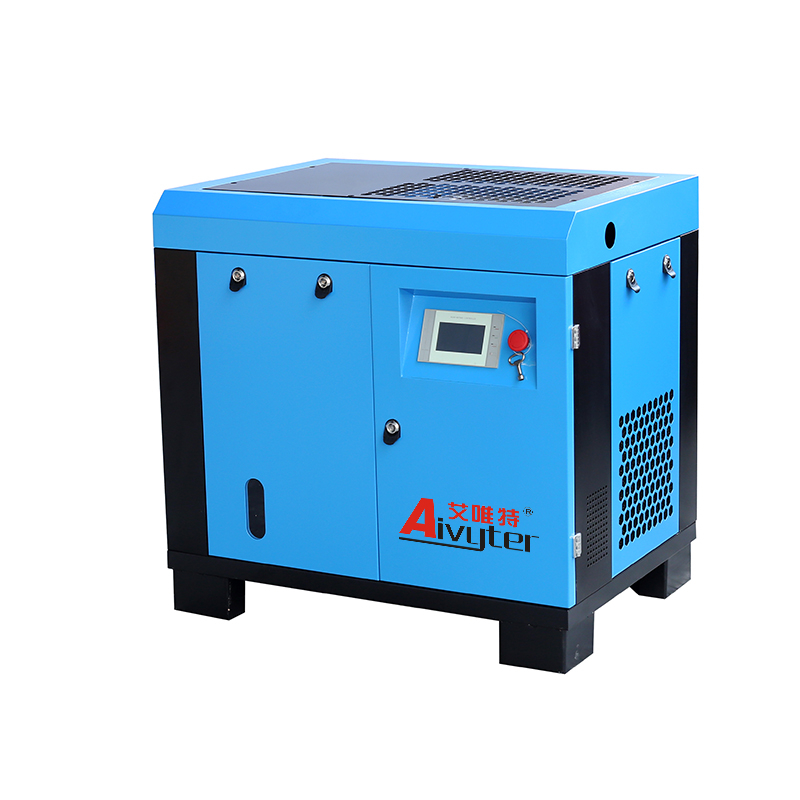

15kW 20Hp Direct Drive Inverter Air-Compressors

Product Name: 15kw pm vsd screw air compressor
Type: Oil-injected/lubricated
Power Range: 15kW/20Hp
Air Flow Range: 1.9m3/min - 2.5m3/min
Pressure Range: 7bar - 12bar
Cooling System: Air Cooling or Water Cooling
Power Source: AC Power 380V/3P/50HZ, can be customied.
Structure Type: Closed Type
Trademark: aivyter , OEM
Color:according to your needs
Certificate: CE, SGS...
Min. Order: 1 piece
Lead Time:7~30 Day
Warranty: One Year
Transport Package: Wooden box
Trade term: CIF, CFR, FOB..

Availability:
Quantity:
  • SGPM 15

15kw 20hp Direct Drive Inverter Air-Compressors

Product Features


  1. Stable air pressure

    • Maintains consistent pressure output

    • Reduces fluctuations in compressed air supply

  2. Smooth startup

    • Eliminates sudden jolts during initiation

    • Reduces wear on components

  3. Variable flow control

    • Adjusts air output to match demand

    • Optimizes energy usage

  4. Wide voltage adaptability

    • Operates across various AC power supply ranges

    • Enhances reliability in different electrical environments

  5. Low noise operation

    • Reduces workplace noise pollution

    • Improves working conditions for operators

  6. Direct drive technology

    • Integrates motor and airend on single shaft

    • Achieves 100% power transfer efficiency

  7. Reduced maintenance

    • Eliminates motor bearings

    • Decreases potential failure points

  8. Compact design

    • Occupies less floor space

    • Simplifies installation process


Product Parameter


Model SGPM 15 Discharge Pressure(Mpa) 0.7 / 0.8 /1.0 /1.2
Air Delivery(m³/min) 2.5/2.3/2.1/1.9 Power(kW) 15
Lubricant(L) 18 Drive Method Variable frequency starting
Cooling Air Discharge Temperature(℃) ≤Ambient temperature±15℃
Electricity(V/Hz) 380V/50Hz(customizable) Weight(kg) 360
Dimension(mm) 1080*750*1020 Air Outlet Pipe Diameter(inch/mm) G3/4''

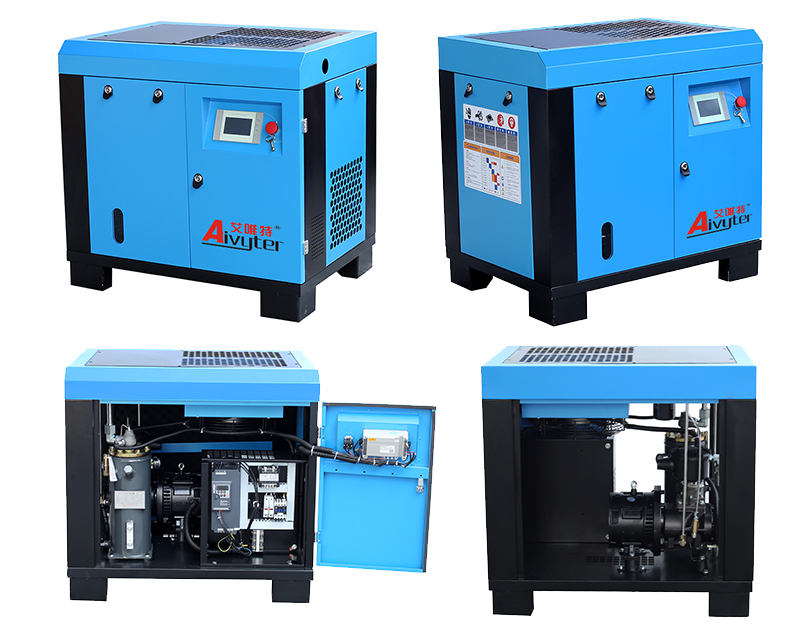

524 拷贝详情页2



High Quality Service


Before sale:

  • Online experts provide compressor system solutions

  • Free air compressor energy-saving solutions to reduce operating costs

After sale:

  • Online professional support until issue resolution

  • 1-year warranty from commissioning or 16 months from delivery, whichever comes first (excludes repair consumables)

  • Ample spare parts inventory ensures reliable after-sales service

  • Prompt on-site service for urgent repairs

  • Regular maintenance reminders and service to prevent downtime

  • Training for optimal compressor operation and maintenance

  • Customized service plans tailored to specific needs

FAQs

Q1: What is the rotor speed of the main engine?
A1: 2980rmp.
Q2: What is your delivery time?
A2: Usually, 5-7 days. (OEM order: 15 days)
Q3: Can you provide water-cooled air compressors?
A3: Yes, we can (usually air-cooled).
Q4: What is the payment deadline?
A4: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or according to your requirements.
Q6: What is your air compressor warranty?
A6: One year for the whole machine (excluding consumable spare parts), technical support can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24-hour online support, 48-hour problem solving commitment.
Q9: Do you have spare parts?
A9: Yes, we have.
Q10: What is the initial lubricant you use on the air compressor?
A10: A total of 46# mineral oil.
