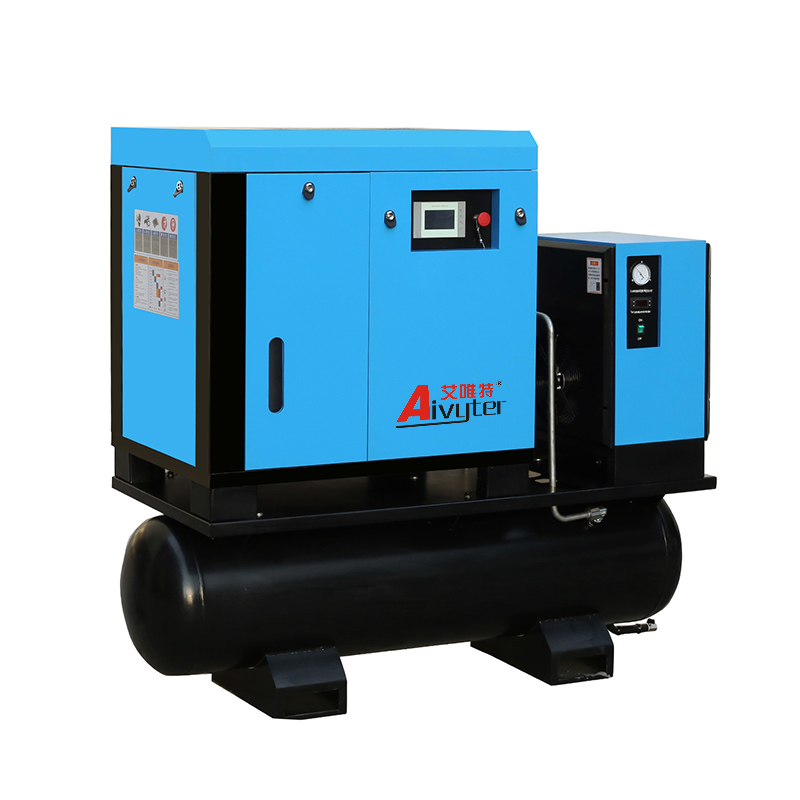

22kW 30Hp 15Bar Combined Screw Air Compressor With Tank And Dryer For Laser Cutting

The aivyter 16bar combined screw air compressor integrates screw compressors, freeze-drying machines, precision filters, and air storage tanks, making it easy for users to install, use, and move. Specially developed and used for laser cutting, with sufficient and stable gas volume. We provide a complete solution for producing clean and dry compressed air. Simply connect the exhaust pipe and cable to the system, making it convenient and fast.

Availability:
Quantity:
  • SGAT 22

Product Details:Integrated Type Screw Air Compressor


Welcome to our online store, where we offer the 22kW 30Hp 15Bar Combined Screw Air Compressor With Tank And Dryer designed specifically for laser cutting applications. This powerful and reliable compressor is a perfect match for your laser cutting equipment, ensuring a continuous supply of compressed air for optimal performance. With our compressor, you can achieve precise and efficient laser cutting results while minimizing downtime and maximizing productivity.

Technical Specifications:



Power: 22kW / 30Hp
Working Pressure Range: Up to 15Bar
Dryer: Our compressor comes equipped with an integrated dryer for efficient moisture removal, ensuring clean and dry compressed air for your laser cutting process.

Key Features:



High Efficiency: The 22kW motor delivers powerful performance, generating ample compressed air to meet the demands of laser cutting applications. It optimizes energy consumption, reducing operational costs without compromising productivity.

Stability and Reliability: Our compressor operates at a consistent pressure, providing stable airflow for precise laser cutting. The robust construction and advanced components ensure reliable operation, minimizing maintenance and downtime.

Integrated Tank and Dryer: The built-in tank allows for convenient storage of compressed air, ensuring a constant supply during peak demand. The integrated dryer effectively removes moisture, preventing corrosion and extending the lifespan of your laser cutting equipment.

Smart Control System: Our compressor features an intelligent control system that monitors and adjusts parameters for optimal performance. It includes safety features such as overload protection and automatic shutdown, ensuring the safety of your laser cutting process.

Noise Reduction: The compressor is designed with noise reduction technology, significantly reducing operational noise levels. This creates a quieter working environment, promoting a better overall work experience.

Wide Application: Our compressor is suitable for various laser cutting materials including metals, plastics, and wood. It accommodates different laser cutting machines, providing consistent and reliable compressed air supply for superior cutting results.

Easy Installation and Maintenance: The compressor is designed for easy installation and maintenance. It comes with clear instructions and user-friendly interfaces, allowing for hassle-free setup and routine maintenance.


14

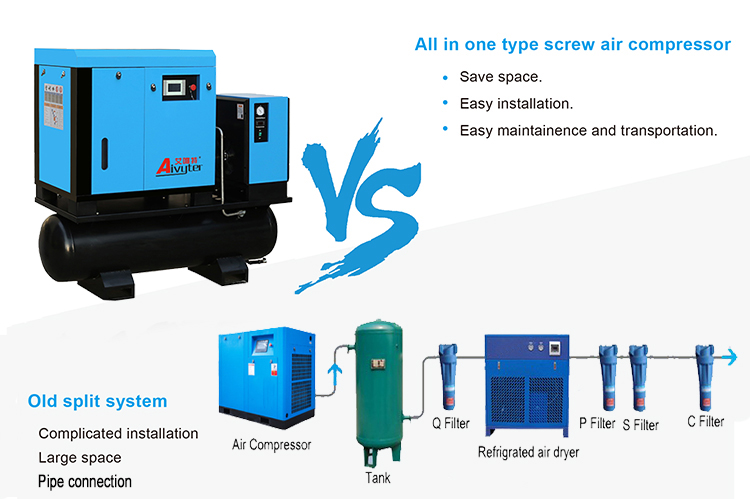

  • Integrated design: Fewer parts and connectors minimize failure and leakage risks

  • Optimized piping: Integrated system reduces pressure loss for improved efficiency

  • Direct dry air: Eliminates moisture to ensure high-quality air at the user end

  • Space-saving: Combines compressor, dryer, and filter into a compact, energy-saving unit

  • High-performance dryer: Uses eco-friendly R134A and R410A refrigerants for reliable cooling

  • Compact structure: Rotary refrigeration compressors offer a space-efficient design

  • Easy installation: Integrated design simplifies the installation process

  • Low maintenance: Streamlined components make maintenance and transportation easier

  • Reliable operation: Designed to perform consistently even in high-temperature environments

  • Versatile application: Ideal for laser cutting and other industrial applications requiring dry, high-quality air


艾唯特2


Product Specifications:


Model Motor Power Pressure Capacity Air tank Start Method Air Outlet Weight Dimension
kW Mpa m3/min L kgs mm
SGAT11 11 1.6 0.9 350 Y-△ G3/4 430 1850*750*1640
SGAT15 15 1.6 1.2 350 Y-△ G3/4 430 1850*750*1640
SGAT22 22 1.6 2.1 350 Y-△ G1 660 2050*850*1780
SGAT11PM 11 1.6 0.9 350 Frequency Conversion G3/4 430 1850*750*1640
SGAT15PM 15 1.6 1.2 350 Frequency Conversion G3/4 430 1850*750*1640
SGAT22PM 22 1.6 2.1 350 Frequency Conversion G1 660 2050*850*1780
