Availability: | |
---|---|
Quantity: | |
SGD 37
aivyter
Product Introduction:

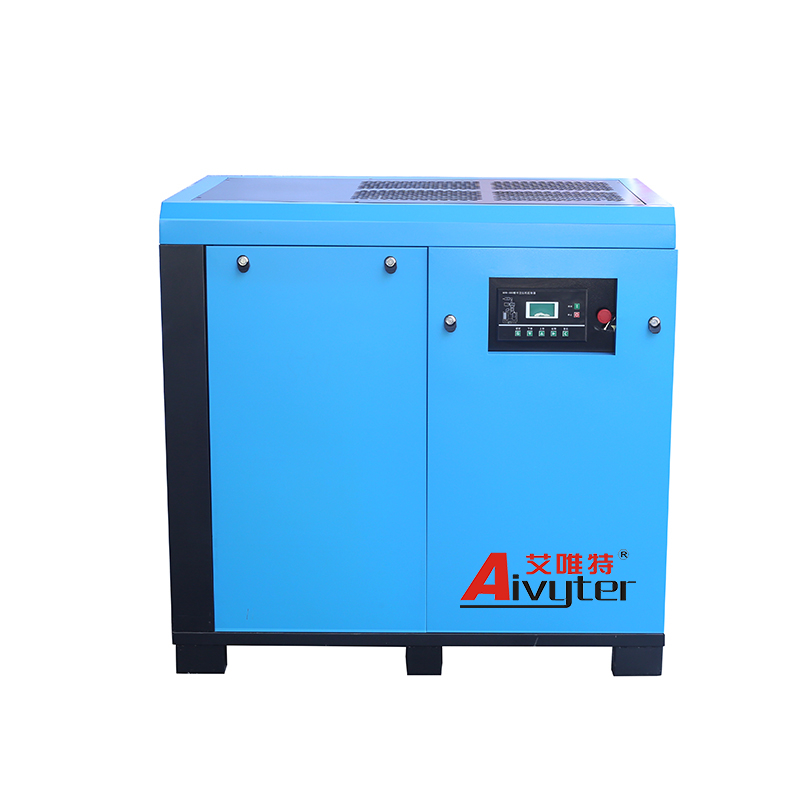

37Kw 50Hp 12 Bar Low Noise Industrial Screw Air Compressor
Model | SGD 37 | Discharge Pressure(Mpa) | 0.7 / 0.8 /1.0 /1.2 |
Air Delivery(m³/min) | 6.8/6.2/5.6/5.0 | Power(kW) | 37 |
Lubricant(L) | 30 | Drive Method | Direct Drive |
Cooling | Air | Discharge Temperature(℃) | ≤Ambient temperature±15℃ |
Electricity(V/Hz) | 380V/50Hz(customizable) | Weight(kg) | 600 |
Dimension(mm) | 1400*1000*1345 | Air Outlet Pipe Diameter(inch/mm) | G 1 1/2'' |
Startup Supply | Y-△ Start-up | Noise | 72±2 |

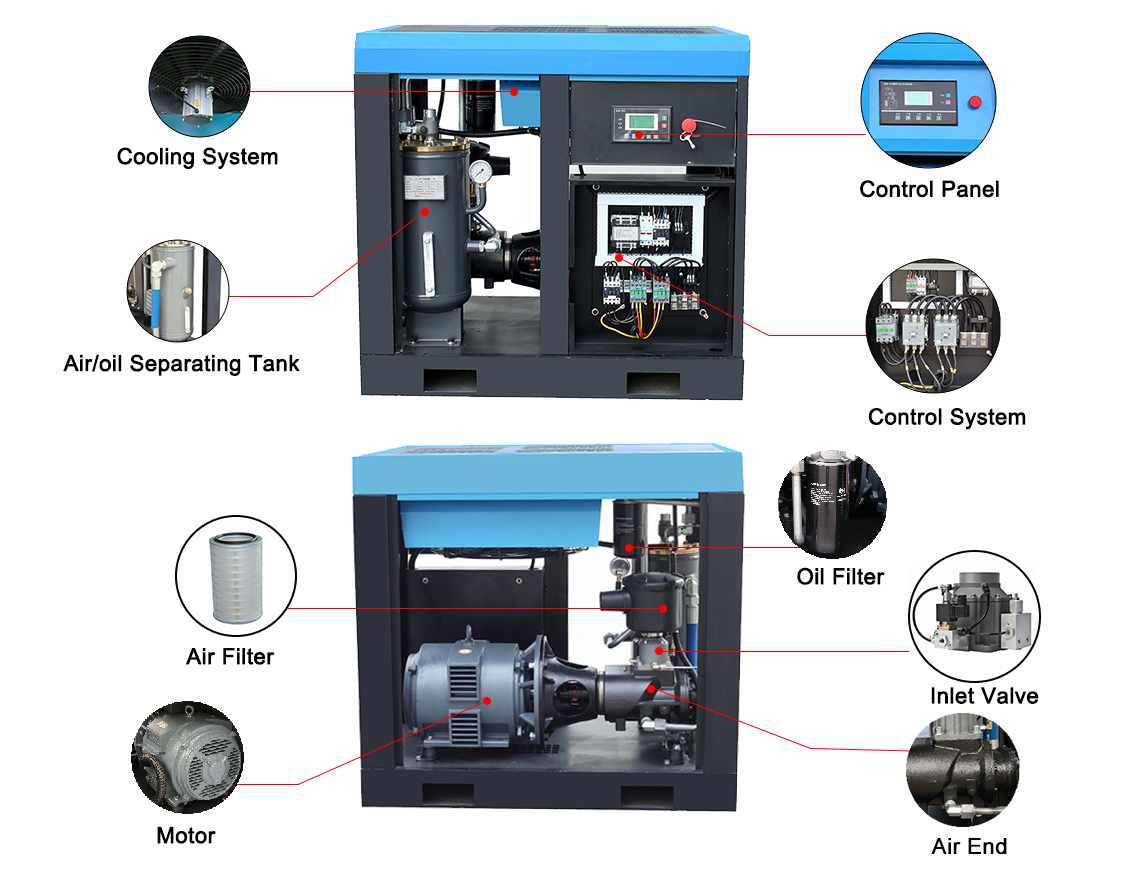

Part Name | Model | Supplier or Origin |
Air end | YNE134RA | BAOSI |
Min. pressure valve | MPV-32A | Redstar |
Intake valve | AIV-65C-K | Redstar |
Oil filter | W962 | SHENZHEN |
K1 contactor | Schneider | |
K2 contactor | Schneider | |
K3 contactor | Schneider | |
K4 contactor | Schneider | |
Lubricated oil | HELI 4000hours semi-synthetic oil | Special use lubricated oil for air compressor |
Motor | 37KW | Jiangtian or FANGLI |
Oil/air separating tank | JIUSHU pressure vessel factory | |
Centre bracket | Jinjiang Zhongao | |
Motor coupling | ⌀55 | Jinjiang Zhongao |
Air end coupling | ⌀50 | Jinjiang Zhongao |
Air filter | SHENZHEN | |
Air/oil separating element | 50A | SHENZHEN |
Fan | FZL650H9PS6Q | ZHANGJIAGANG |
Oil/air cooler | B1768B | WUXI LINGSHENG HEAT EXCHANGER FACTORY |
Safety valve | A28X-16T-20-1.0 (1.2) | FUYU |
Pressure sensor | SHENZHEN YISHUN | |
Temp. sensor | SHENZHEN YISHUN | |
Main controller | MAM880 | SHENZHEN PLOT |
The Aivyter screw air compressor is equipped with a powerful 37kW/50Hp motor, which can provide reliable and stable compressed air supply, ensuring optimal performance in industrial operation.
Compact design: The space saving design of this compressor makes it suitable for installation in areas with limited space, thus effectively utilizing workspace resources.
Low noise operation: The compressor adopts advanced noise reduction technology, significantly reducing noise emissions and creating a quieter and more comfortable working environment.
Energy efficiency: With its energy-saving control system, this compressor helps to minimize power consumption, thereby reducing energy costs and environmental impact.
Cost saving: The energy-saving control system reduces power consumption, thereby significantly saving the cost of energy bills. In addition, a durable structure minimizes maintenance and repair costs.
Best Space Utilization: The compact design of this compressor allows for easy installation in space limited working environments, effectively utilizing available space.
Improving the workplace environment: The low-noise operation of this compressor creates a quieter and more comfortable workplace, promoting employee well-being and productivity.
Reliable performance: The 37kW 50Hp 12Bar low-noise industrial screw air compressor ensures reliable and consistent compressed air supply, reducing downtime and production interruptions.
Improving efficiency: The high-power motor and energy-saving control system have optimized air compression, thereby improving efficiency and reducing operating costs.
Environmental protection: By minimizing energy consumption and noise emissions, this compressor helps achieve more environmentally friendly and sustainable industrial operations.
Long service life: This compressor has a durable structure and high-quality components, which have a long service life and reduce the need for frequent replacement and related costs.
Product Introduction:
37Kw 50Hp 12 Bar Low Noise Industrial Screw Air Compressor
Model | SGD 37 | Discharge Pressure(Mpa) | 0.7 / 0.8 /1.0 /1.2 |
Air Delivery(m³/min) | 6.8/6.2/5.6/5.0 | Power(kW) | 37 |
Lubricant(L) | 30 | Drive Method | Direct Drive |
Cooling | Air | Discharge Temperature(℃) | ≤Ambient temperature±15℃ |
Electricity(V/Hz) | 380V/50Hz(customizable) | Weight(kg) | 600 |
Dimension(mm) | 1400*1000*1345 | Air Outlet Pipe Diameter(inch/mm) | G 1 1/2'' |
Startup Supply | Y-△ Start-up | Noise | 72±2 |
Part Name | Model | Supplier or Origin |
Air end | YNE134RA | BAOSI |
Min. pressure valve | MPV-32A | Redstar |
Intake valve | AIV-65C-K | Redstar |
Oil filter | W962 | SHENZHEN |
K1 contactor | Schneider | |
K2 contactor | Schneider | |
K3 contactor | Schneider | |
K4 contactor | Schneider | |
Lubricated oil | HELI 4000hours semi-synthetic oil | Special use lubricated oil for air compressor |
Motor | 37KW | Jiangtian or FANGLI |
Oil/air separating tank | JIUSHU pressure vessel factory | |
Centre bracket | Jinjiang Zhongao | |
Motor coupling | ⌀55 | Jinjiang Zhongao |
Air end coupling | ⌀50 | Jinjiang Zhongao |
Air filter | SHENZHEN | |
Air/oil separating element | 50A | SHENZHEN |
Fan | FZL650H9PS6Q | ZHANGJIAGANG |
Oil/air cooler | B1768B | WUXI LINGSHENG HEAT EXCHANGER FACTORY |
Safety valve | A28X-16T-20-1.0 (1.2) | FUYU |
Pressure sensor | SHENZHEN YISHUN | |
Temp. sensor | SHENZHEN YISHUN | |
Main controller | MAM880 | SHENZHEN PLOT |
The Aivyter screw air compressor is equipped with a powerful 37kW/50Hp motor, which can provide reliable and stable compressed air supply, ensuring optimal performance in industrial operation.
Compact design: The space saving design of this compressor makes it suitable for installation in areas with limited space, thus effectively utilizing workspace resources.
Low noise operation: The compressor adopts advanced noise reduction technology, significantly reducing noise emissions and creating a quieter and more comfortable working environment.
Energy efficiency: With its energy-saving control system, this compressor helps to minimize power consumption, thereby reducing energy costs and environmental impact.
Cost saving: The energy-saving control system reduces power consumption, thereby significantly saving the cost of energy bills. In addition, a durable structure minimizes maintenance and repair costs.
Best Space Utilization: The compact design of this compressor allows for easy installation in space limited working environments, effectively utilizing available space.
Improving the workplace environment: The low-noise operation of this compressor creates a quieter and more comfortable workplace, promoting employee well-being and productivity.
Reliable performance: The 37kW 50Hp 12Bar low-noise industrial screw air compressor ensures reliable and consistent compressed air supply, reducing downtime and production interruptions.
Improving efficiency: The high-power motor and energy-saving control system have optimized air compression, thereby improving efficiency and reducing operating costs.
Environmental protection: By minimizing energy consumption and noise emissions, this compressor helps achieve more environmentally friendly and sustainable industrial operations.
Long service life: This compressor has a durable structure and high-quality components, which have a long service life and reduce the need for frequent replacement and related costs.
