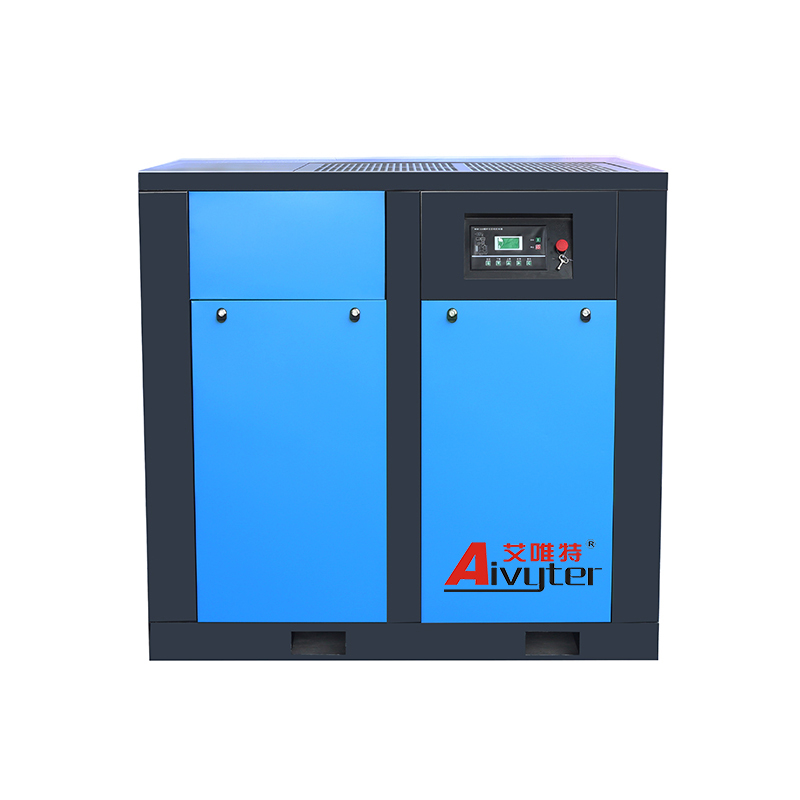

Best Seller 110KW 150HP Direct Drive Rotary Air Compressor For Railway Head Project

110KW fixed speed drive screw air compressor. The whole machine adopts a fully enclosed structure. The hot and cold air flows inside the unit are separated and do not interfere with each other, improving system efficiency. The host and motor are separated from the base by a shock-absorbing pad, which does not interfere with peripheral equipment and has the characteristics of low noise and low vibration.

Availability:
Quantity:
  • SGD 110

Best Seller 110KW 150HP Direct Drive Rotary Air Compressor for Railway Head Project

The aivyter SGD Series of Lubricated Rotary Screw compressors combine our heritage of durability and reliability, while adding unprecedented ease of use and performance. Designed with a focus on precision performance, the SGD Series has features that perform and benefits that matter.

high quality componentsproduced by famous manufacturers, such as excellent performance air end, superior motor, advanced monitoring system,unique aircircuit system and stable transmission system.

配件 拷贝

AC electric screw air compressor is safer and more convenient

The machine can operate normally and stably under extreme weather conditions

They are easier to maintain and more energy efficient.

They consume less oil than other oil-filled AC air compressors

110KW 150HP Direct Drive Rotary Air Compressor

It adopts the latest technology screw airend, with high efficiency and low rotation speed. The rotor adopts the third generation 5:6 tooth profile, the best tooth profile design in the world, with small size, low noise (only 67db), low energy consumption and low maintenance cost. , the best reliability and availability. The motor and compressor host adopt a built-in integrated shaft direct connection structure, which makes the structure more compact and the transmission efficiency 100%. There are no motor bearings, and the rotor is mounted directly on the protruding shaft of the outer rotor, eliminating the failure point of the motor bearing.

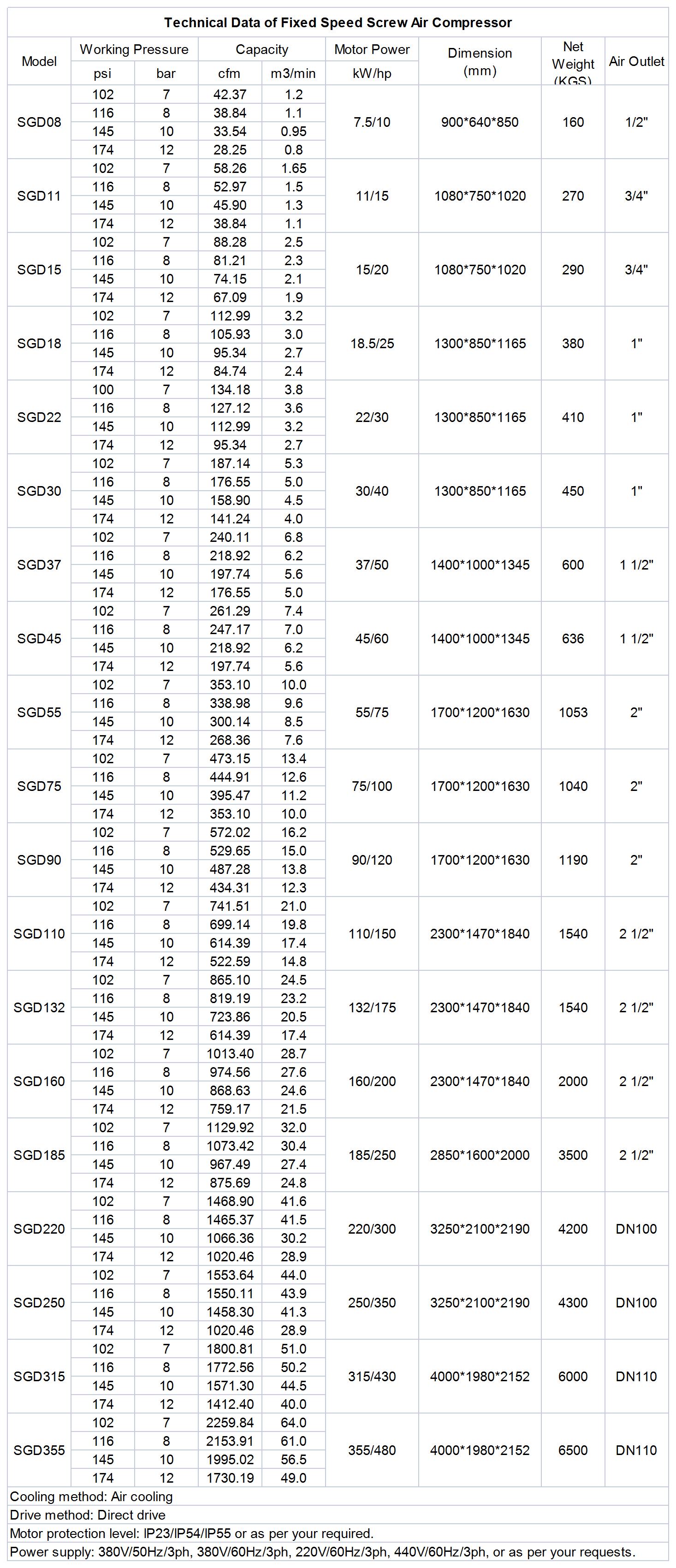

Product Parameter:

Technical Data of Direct Drive Electric Motor Screw Air Compressors

技术参数 所有空压机_常规
