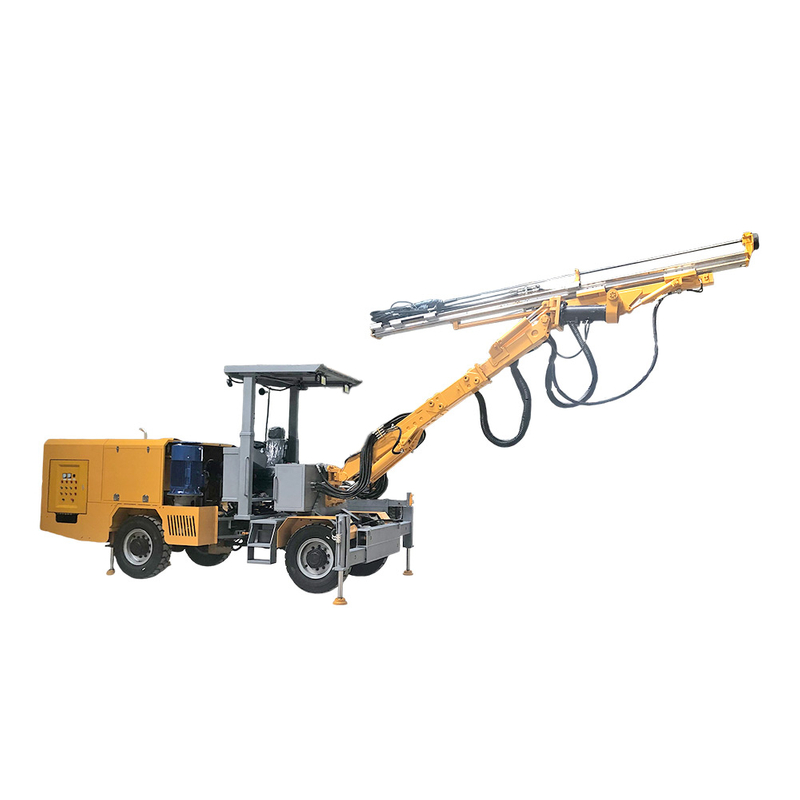

Full Hydraulic Underground Tunnel Drilling Machines Tunnel Drilling Rig Rotary Drill Jumbo

Drilling jumbo, also known as rock drilling rigs, are divided into single-boom, double-boom and multi-boom drilling rigs according to the number of rock drills installed. It is a rock drilling equipment used for drilling and blasting construction of tunnels and underground projects. It can move and support multiple rock drills to perform drilling operations at the same time. It is mainly composed of rock drills, drill arms, travel mechanisms and other necessary auxiliary equipment. The use of rock drilling rigs can significantly speed up construction, improve labor productivity, and greatly improve working conditions.
Availability:
Quantity:
  • AZT1-7200

  • aivyter

  • 8430390000

Full Hydraulic Underground Tunnel Drilling Machines Rotary Drill Jumbo

1. Full Hydraulic Technology:

Our Tunnel Drilling Rig Rotary Drill Jumbo is equipped with full hydraulic technology, which provides superior control, precision, and efficiency during drilling operations. The hydraulic system allows for smooth and accurate movement of the drilling rig, ensuring precise drilling performance even in challenging underground conditions. The full hydraulic technology also minimizes maintenance requirements and enhances the overall reliability of the machine.

2. Drill Jumbo Design:

This drilling machine features a drill jumbo design, which includes a powerful rotary drill that is capable of drilling through various types of rock and soil. The drill jumbo design allows for efficient and rapid drilling of tunnels, shafts, and other underground structures. With its sturdy construction and high drilling capacity, this machine is suitable for a wide range of tunneling applications, including mining, construction, and infrastructure projects.

3. Versatile Performance:

Our Tunnel Drilling Rig Rotary Drill Jumbo offers versatile performance to meet the diverse needs of underground tunneling projects. The machine can be equipped with different types of drill bits, ranging from standard to specialized bits for specific rock formations. This versatility allows for customization of the drilling process to achieve optimal results in various geological conditions. The dr

ill jumbo design also enables easy maneuverability and precise positioning in tight underground spaces.

4. Enhanced Safety Features:

Safety is a top priority in underground tunneling operations, and our drilling machine is equipped with enhanced safety features to ensure the protection of operators and the surrounding environment. The machine includes safety interlocks, emergency stop buttons, and protective guards to prevent accidents and minimize risks during drilling operations. The full hydraulic technology also contributes to safe and efficient drilling by providing smooth and controlled movements of the drilling rig.

5. User-Friendly Controls:

Our Tunnel Drilling Rig Rotary Drill Jumbo is designed with user-friendly controls that allow operators to easily monitor and adjust the drilling parameters. The intuitive interface provides real-time data on drilling depth, speed, and pressure, enabling operators to optimize the drilling process for maximum efficiency. The user-friendly controls also facilitate quick setup and operation of the machine, reducing downtime and increasing productivity on the job site.

6. Durable and Reliable Construction:

Built to withstand the rigors of underground tunneling, our drilling machine features a durable and reliable construction that ensures long-lasting performance in demanding environments. The robust design, high-quality components, and advanced engineering make this machine a dependable and cost-effective solution for tunnel construction projects. With proper maintenance and care, our Tunnel Drilling Rig Rotary Drill Jumbo will provide years of reliable service for your underground drilling needs.

Basic Parameters of Single Boom Drilling Jumbo -- AZT1-7200

Basic parameters of single arm rock drilling rig - AZT1-7200
Main parameter Parameter values
Size 11000*2050*2800/3650mm
Maximum excavation height 7200mm
Drilling diameter φ38mm-φ45mm
Drill pipe length 4305mm
Drilling depth 3900mm
Drilling speed 0.8-2m/min
Motor power 55KW
Fuel tank capacity 250L
Overall weight 12000kg
Rock drilling power head model DZ600

Rotation Positive 135 ° Reverse 225 °
Swing arm 45 ° left and right
Travel compensation 1600mm
Main arm stroke 1300mm
Sliding rail swing angle 2 ° elevation and 90 ° elevation
Diesel engine power 60kw
Turn ±40
Tires 9.00-20
Climbing ability ≤18°
Rear axle swing angle ±10°

Approach angle/departure angle 17°/14°
Inside turning radius Inner side 3.3m/outer side 6.95m
Walking speed 12km/h
Ground clearance 350mm
Fuel tank capacity 70L
Air compressor flow rate 0.55m³/min
Pressure 0.3-0.6MPa
Air compressor motor power 4KW
Water pump flow rate 5m³/h
pressure 0.2-0.8MPa
Pump motor power 3kw
Battery rate 2x12v
Driving lighting 24v
Work lighting

220v

4.5

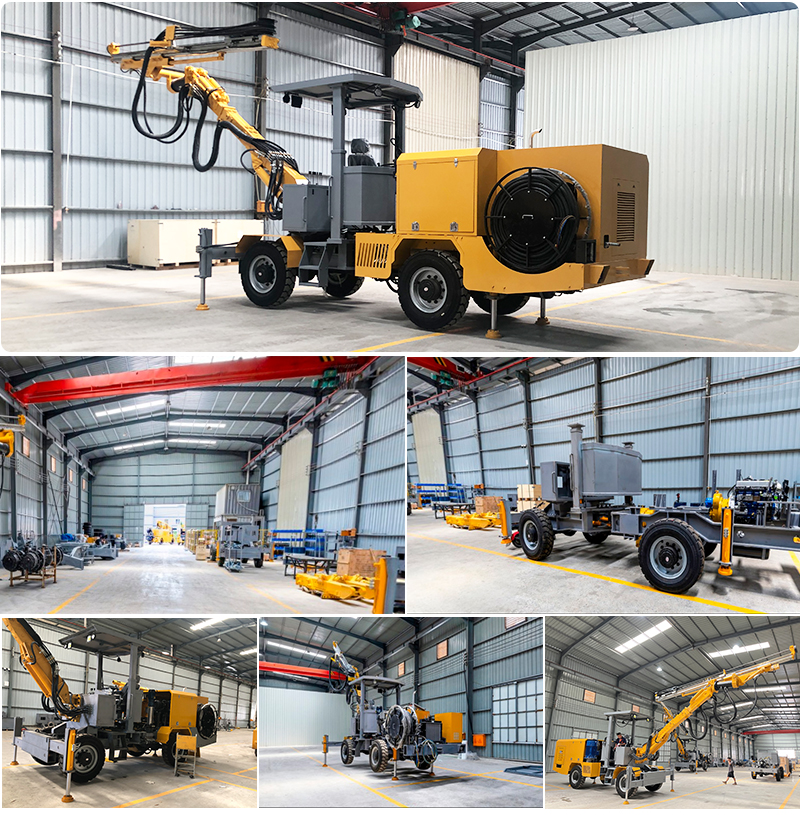

Aivyter Single boom drill jumbo Main features-- AZT1-7200

1.Boom system: Fully hydraulic double triangle telescopic boom, single-stage telescopic, telescopic stroke single arm 1300mm, big arm lifting 70° and lowering 30°, big and small arms can be automatically leveled. Large working surface range: single arm excavation height 7200mm.

2.The propulsion, impact and rotation of the entire rock drill are all controlled by hydraulics. Compared with electric hydraulic control, it has faster response speed, lower failure rate, and lower wear and tear on drill rods and drill bits.

3.Engineering chassis, good rigidity and strength, engineering axle, hydraulic gearbox, stable performance, low failure rate, easy maintenance.

60KW water-cooled turbocharged engine, strong power, climbing grade>18°; good passability, minimum ground clearance 350mm.

4.Different drill rods such as 3700/4300 can be selected according to customer needs. The propulsion beam adopts an aluminum alloy frame with strong bending and torsion resistance.

5.Using well-known domestic brands of high-power rock drills.

Impact performance Rotation performance
Maximum impact power 22KW Rotating speed 175/275rpm
Maximum pressure 210bar Maximum torque 685/980Nm
Maximum  capacity 96L/min Maximum working pressure 170bar
Impact frequency 62HZ Capacity 75L/min
impact energy 350J

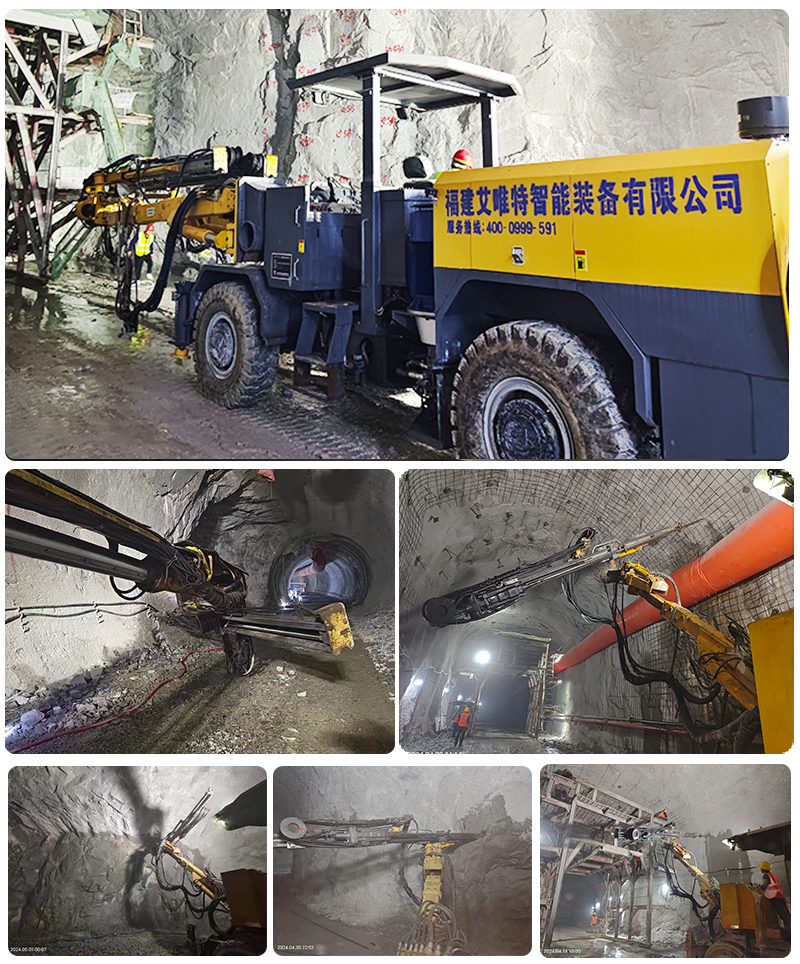

4 单臂
