High Efficiency Permanent Magnetic Screw Air Compressor

High Efficiency Permanent screw compressor equipped with a dedicated frequency converter, a wider frequency range. The use of permanent magnet synchronous motors can achieve the greatest energy saving effect.Efficient and energy-saving, with an output of 20% -30% more gas flow than general air compressors under the same exhaust pressure; Low noise. Long service life up to 100000 hours of use. Features of low vibration, low noise, and high reliability

Availability:
Quantity:
  • SGPM

Product Description: High Efficiency Permanent Magnetic Screw Air Compressor

High Efficiency Performance:

Our High Efficiency Permanent Magnetic Screw Air Compressor is designed to deliver outstanding performance, making it an ideal choice for various applications. With its innovative permanent magnetic technology, this compressor ensures optimal air compression, resulting in increased productivity and energy savings.


Permanent Magnetic Technology:

We pride ourselves on utilizing advanced permanent magnetic technology in our air compressor. This technology offers several advantages, including improved efficiency, reduced energy consumption, and enhanced reliability. Experience the power of permanent magnetic technology with our High Efficiency Screw Air Compressor.


Reliable and Durable Construction:

Our air compressor features a reliable and durable construction, designed to withstand the demands of different environments. It is built to be rugged and resistant to wear and tear, ensuring long-lasting performance and minimal maintenance requirements. Experience durability and reliability with our robustly constructed air compressor.


Energy Efficient Operation:

We understand the importance of energy efficiency and cost-effectiveness in various applications. Our High Efficiency Permanent Magnetic Screw Air Compressor is engineered to optimize energy consumption, reducing operational costs. With its advanced control system and permanent magnetic technology, it delivers exceptional performance while minimizing energy waste. Experience efficiency and cost savings with our energy-efficient air compressor.


Quiet Operation:

We recognize the value of a quiet working environment in different applications. That's why our air compressor is designed to operate at low noise levels, minimizing noise pollution. Experience a quieter and more productive work environment with our High Efficiency Permanent Magnetic Screw Air Compressor.


User-Friendly Design:

Our air compressor prioritizes user convenience. With its user-friendly design, it is easy to operate, maintain, and service. The intuitive control panel allows for effortless adjustments and monitoring, while the durable construction ensures long-lasting performance. Experience hassle-free operation with our thoughtfully designed air compressor.



Permanent Magnet Frequency Conversion Screw Compressor:


  • Energy savings: Saves 10-15% more energy compared to variable speed screw compressors and 30-40% more than standard screw compressors


  • High-performance PM motor: Uses high-performance permanent magnet material that maintains magnetism up to 120°C and lasts over 15 years


  • Simplified design: PM rotor is directly installed on the male rotor shaft, eliminating the need for a separate motor bearing and potential bearing faults


  • Superior efficiency: PM synchronous motor offers better energy efficiency than normal variable speed motors, especially at low speeds


  • Durable construction: Built to withstand demanding industrial applications and provide reliable, long-lasting performance


  • Compact footprint: Space-saving design allows for easy integration into existing compressed air systems


  • Quiet operation: Designed to minimize noise levels, ensuring a more pleasant work environment


  • Intelligent control: Advanced control system optimizes performance, monitors system health, and provides real-time data for enhanced decision-making


  • Versatile application: Suitable for a wide range of industries, including manufacturing, food and beverage, automotive, and more


  • Customizable options: Available in various configurations and with optional features to meet specific user requirements

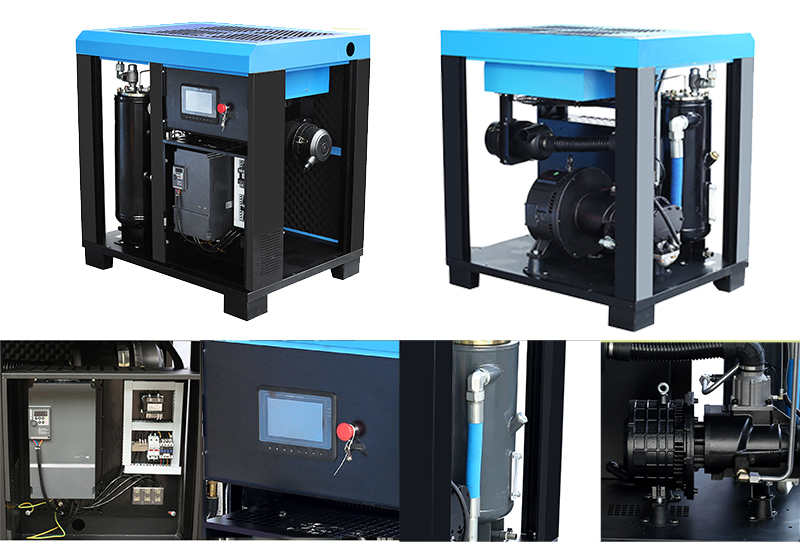

750 拷贝.1

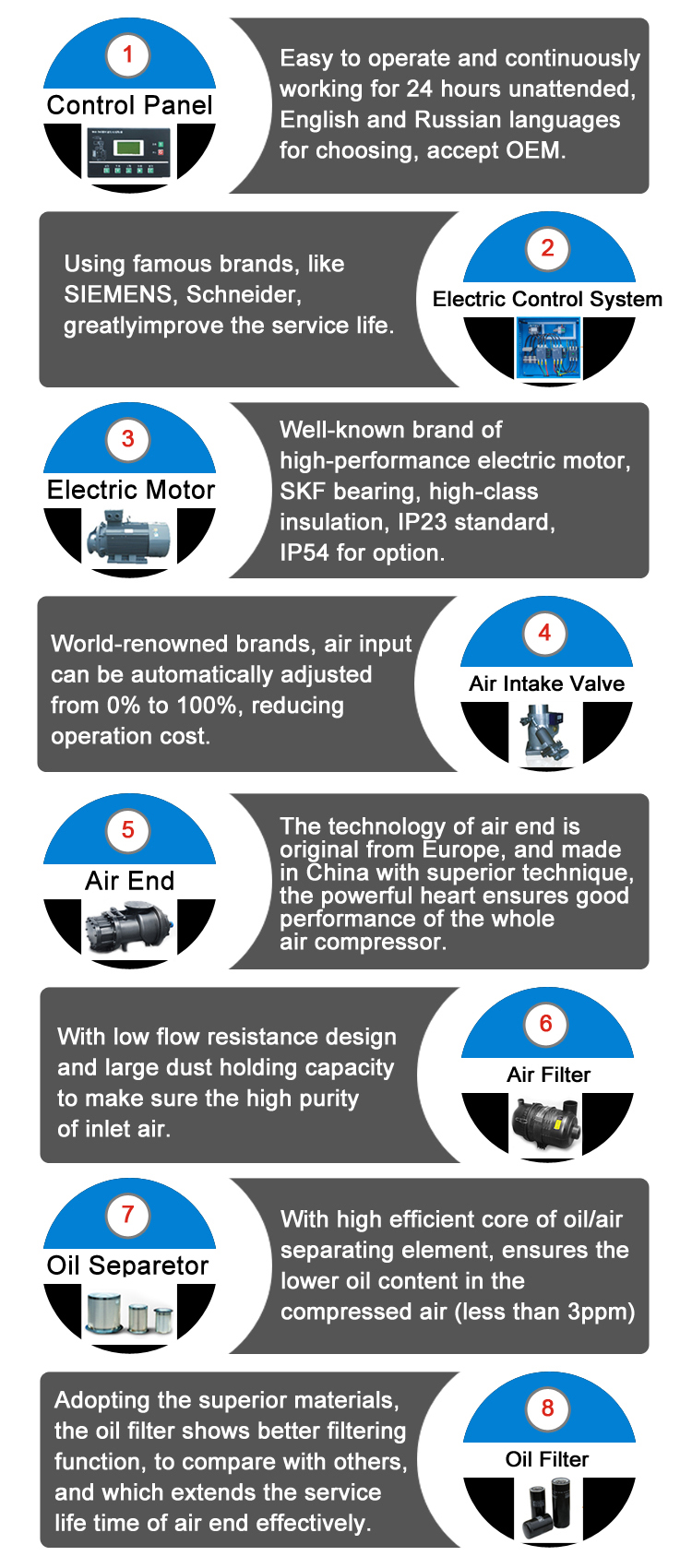

常规2

7.5kw ~ 355kw Direct Drive Air Cooling Screw Air Compressor Technical Parameters
Model Motor Power Working Pressure Capacity Lubricated Oil Quantity
(L)
Noise
dB(A)
Dimension (mm) Net Weight Air Outlet
kW/hp psi bar cfm m3/min L*W*H KGS
SGPM08 7.5/10 102 7 42.40 1.20 10 66±2 900*640*850 130 1/2’’
116 8 38.80 1.10
145 10 33.50 0.95
174 12 28.30 0.80
SGPM11 11/15 102 7 58.30 1.65 18 68±2 1000*750*1023 200 3/4’’
116 8 53.00 1.50
145 10 45.90 1.30
174 12 38.80 1.10
SGPM15 15/20 102 7 88.30 2.50 18 68±2 1000*750*1023 210 3/4’’
116 8 81.20 2.30
145 10 74.20 2.10
174 12 67.10 1.90
SGPM18 18.5/25 102 7 113.00 3.20 18 68±2 1100*850*1200 300 1’’
116 8 105.90 3.00
145 10 95.30 2.70
174 12 84.70 2.40
SGPM22 22/30 100 7 134.20 3.80 18 68±2 1100*850*1200 300 1’’
116 8 127.10 3.60
145 10 113.00 3.20
174 12 95.30 2.70
SGPM30 30/40 102 7 187.10 5.30 18 68±2 1100*850*1200 340 1’’
116 8 176.60 5.00
145 10 158.90 4.50
174 12 141.20 4.00
SGPM37 37/50 102 7 240.10 6.80 30 68±2 1250*1000*1345 430 11/2"
116 8 218.90 6.20
145 10 197.70 5.60
174 12 176.60 5.00
SGPM45 45/60 102 7 261.30 7.40 30 72±2 1250*1000*1345 430 11/2"
116 8 247.20 7.00
145 10 218.90 6.20
174 12 197.70 5.60
SGPM55 55/75 102 7 353.10 10.00 65 72±2 1700*1200*1630 820 2"
116 8 339.00 9.60
145 10 300.10 8.50
174 12 268.40 7.60
SGPM75 75/100 102 7 473.20 13.40 65 72±2 1700*1200*1630 950 2"
116 8 444.90 12.60
145 10 395.50 11.20
174 12 353.10 10.00
SGPM90 90/120 102 7 572.00 16.20 72 72±2 1700*1200*1630 950 2"
116 8 529.70 15.00
145 10 487.30 13.80
174 12 434.30 12.30
SGPM110 110/150 102 7 741.50 21.00 90 72±2 2300*1470*1840 1500 DN85
116 8 699.10 19.80
145 10 614.40 17.40
174 12 522.60 14.80
SGPM132 132/175 102 7 865.10 24.50 90 75±2 2300*1470*1840 2000 DN85
116 8 819.20 23.20
145 10 723.90 20.50
174 12 614.40 17.40
SGPM160 160/200 102 7 1013.40 28.70 110 75±2 2500*1470*1840 3200 DN85
116 8 974.60 27.60
145 10 868.60 24.60
174 12 759.20 21.50
SGPM185 185/250 102 7 1129.90 32.00 110 75±2 2500*1470*1840 3200 DN85
116 8 1073.40 30.40
145 10 967.50 27.40
174 12 875.70 24.80
SGPM220 220/300 102 7 1468.90 41.6 170 75±2 3250*2100*2190 4200 DN100
116 8 1465.37 41.5
145 10 1066.36 30.2
174 12 1020.46 28.9
SGPM250 250/350 102 7 1553.64 44.0 170 75±2 3250*2100*2190 4300 DN100
116 8 1550.11 43.9
145 10 1458.30 41.3
174 12 1020.46 28.9
