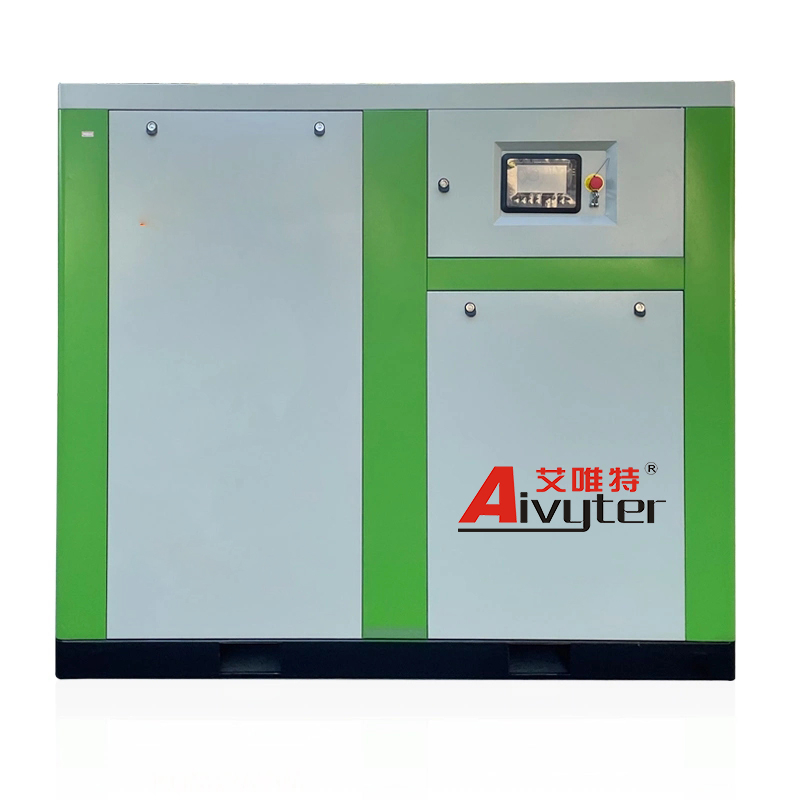

Rotary Electrical Industrial Oil Free Screw Air Compressor

Product Name:Water Lubrication Oil Free Screw Air Compressor
Type: Oil Free/Low noise
Power Range: 7.5kW~250kW
Air Flow Range: 0.24m3/min - 43.5m3/min
Pressure Range: 8bar - 12.5bar
Cooling System: Air Cooling or Water Cooling
Power Source: AC Power 380V/3P/50HZ, can be customied.
Structure Type: Closed Type
Feature:High Efficiency , 100% oil free
Noise level:38~80dB
Trademark: aivyter , OEM
Color:according to your needs
Certificate: CE, SGS...
Min. Order: 1 piece
Lead Time:7~30 Day
Warranty: One Year
Transport Package: Wooden box
Trade term: CIF, CFR, FOB.
Availability:
Quantity:
  • SGM 08V

横幅3新.

Product Features


  • Absolutely no oil in water-lubricated system, eliminating risk of oil pollution and ensuring oil-free compressed air

  • Less maintenance consumables (air filter, water filter) compared to other compressors, simplifying maintenance without specialized operation

  • Generates over 10% more air delivery than dry oil-free screw compressors of equal power

  • Cleaner compressed air through lubricating water, suitable for direct breathing use

  • Lower saturated compressed air dew point, reducing compressed air water content by over 25% vs ordinary dry oil-free screw compressors

  • Higher volume efficiency based on isothermal compression, saving 15%+ energy over dry two-stage compression oil-free screw compressors

  • Average energy savings exceed 25% compared to dry two-stage compression oil-free screw compressors

1 拷

3..

Product Advantages

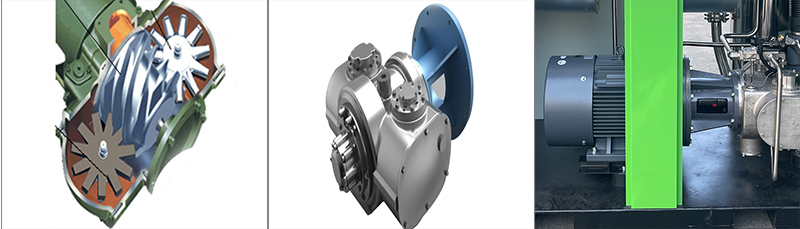

  1. Advanced Water-Lubricated Oil-Free Compressor Airend

    • Features PEEK door rotor for high strength and wear resistance

    • Utilizes aerospace-grade stainless steel rotor for durability

    • Manufactured using a new process that ensures precision

  2. Balanced Main Rotor Structure

    • Employs a single screw design that engages with star wheels

    • Compresses material while maintaining mechanical balance

    • Results in reduced vibration and noise during pressurized operation

  3. Efficient Direct Drive Electric Motor

    • Main airend connects to motor output shaft via flexible coupling

    • Minimizes power loss during transmission for optimal efficiency

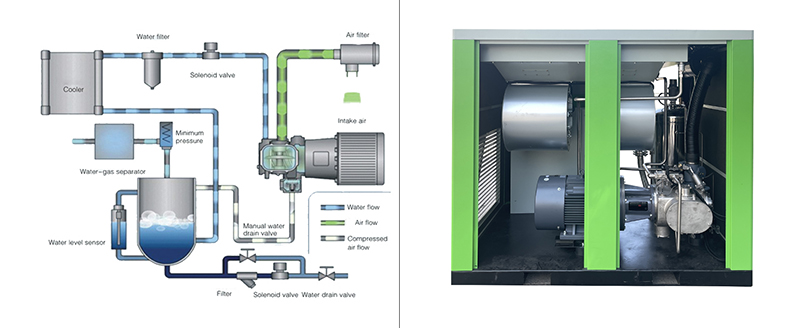

  4. Water-Based Lubrication System

    • Uses water as a sealing and lubricating medium

    • Operates at lower speeds and temperatures compared to oil-based systems

    • Ensures compressed air output is completely oil-free and clean

  5. Streamlined System Design

    • Constructed with food-grade stainless steel and control components

    • Incorporates corrosion-resistant materials for key parts

    • Requires minimal maintenance and offers a straightforward layout

3...

30

After Sales Service

Before sale

Professional online salesman can solve compressor system problems for you.

Provide free air compressor energy saving solutions to help you save operating costs.

After sale

Online professional after-sales service Online professional after-sales service until the problem is solved.

After commissioning, the warranty is 1 year or the delivery date is 16 months, which depends on the first warranty of the whole machine (except repair consumables).

The number of spare parts is sufficient to ensure good after-sales service.

Technical Data of Variable Frequency Oil Free Screw Air Compressor

技术参数 所有空压机_无油螺杆空压机
