Availability: | |
---|---|
Quantity: | |
Reliable and Economical Performance
Threaded pipelines increase cooling air usage efficiency.
Laminose copper evaporator ensures high efficiency with low energy consumption.
Fin copper condenser offers excellent heat exchange without freezing or blockages.
Environmentally Friendly
Aluminum alloy heat exchangers resist corrosion and prevent pollution.
Eco-friendly refrigerants align with global environmental protection standards.
Top Configuration
Equipped with first-class compressors from brands like KERRY, COPELAND, and MANEUROP.
Uses top-tier refrigeration control components from DANFOSS and ALCO.
Nanometer anti-corrosion coated air coolers ensure durability.
Total Control
Automatic controller manages dryer operations and monitors key parameters for optimal performance and efficiency.
Flexible Design
Available in air-cooled and water-cooled versions with a compact design for easy installation and maintenance-free operation.

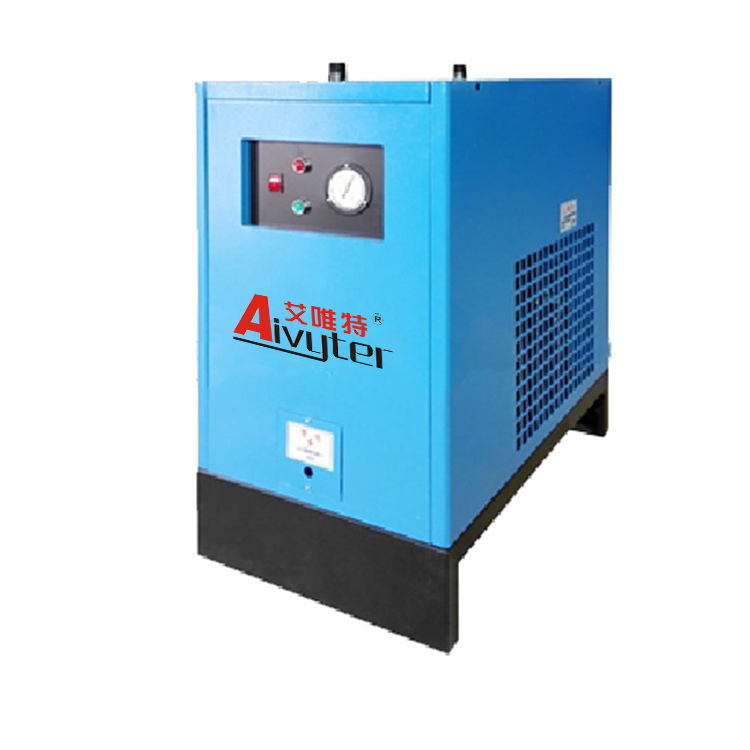

Technical Data of Refrigerated Air Dryer:
Model | Air Flow | Compressor Power (hp) | Power Supply (V/50hz) | Pipe Diameter | Dimension (mm) | Weight (KGS) | |
m3/min | cfm | ||||||
P-7.5AC | 1.0 | 35 | 0.3 | 220 | 1" | 620*410*650 | 37 |
P-10AC | 1.5 | 53 | 0.35 | 220 | 1" | 750*420*740 | 50 |
P-20AC | 2.6 | 92 | 0.5 | 220 | 1 1/2" | 800*440*810 | 63 |
P-30AC | 3.8 | 134 | 0.75 | 220 | 1 1/2" | 930*500*890 | 87 |
P-50AC | 6.7 | 237 | 1.5 | 220 | 1 1/2" | 1000*570*980 | 115 |
P-60AC | 8.1 | 286 | 1.5 | 220 | 1 1/2" | 1000*570*980 | 136 |
P-75AC | 10.7 | 378 | 2 | 220 | 2'' | 1100*600*1070 | 150 |
P-100AC | 13.8 | 487 | 2.75 | 380 | 2 1/2" | 1240*600*1070 | 160 |
P-125AC | 15.1 | 533 | 4 | 380 | 2 1/2" | 1240*600*1070 | 170 |
P-150AC | 20.0 | 706 | 4 | 380 | 3" | 1400*680*1190 | 235 |
P-200AC | 26.0 | 918 | 5 | 380 | 3" | 1400*680*1240 | 248 |
P-250AC | 30.0 | 1059 | 6 | 380 | 4" | 1600*850*1320 | 480 |
P-300AC | 40.0 | 1412 | 7.5 | 380 | 4" | 1650*900*1500 | 507 |
P-400AC | 45.0 | 1589 | 8 | 380 | 4" | 1650*950*1500 | 550 |
P-500AC | 65.0 | 2295 | 10 | 380 | 5" | 1800*1000*1550 | 600 |
P-600AC | 75.0 | 2648 | 12 | 380 | 6" | 2000*1000*1550 | 700 |
P-700AC | 80.0 | 2825 | 7.5*2 | 380 | 6" | 2500*1500*1650 | 810 |
P-800AC | 96.0 | 3390 | 8*2 | 380 | 8" | 2500*1500*1750 | 1100 |
P-1000AC | 120.0 | 4237 | 10*2 | 380 | 8" | 2800*1500*1700 | 1300 |
P-1200AC | 150.0 | 5297 | 13*2 | 380 | 8" | 2800*2000*1850 | 1500 |
