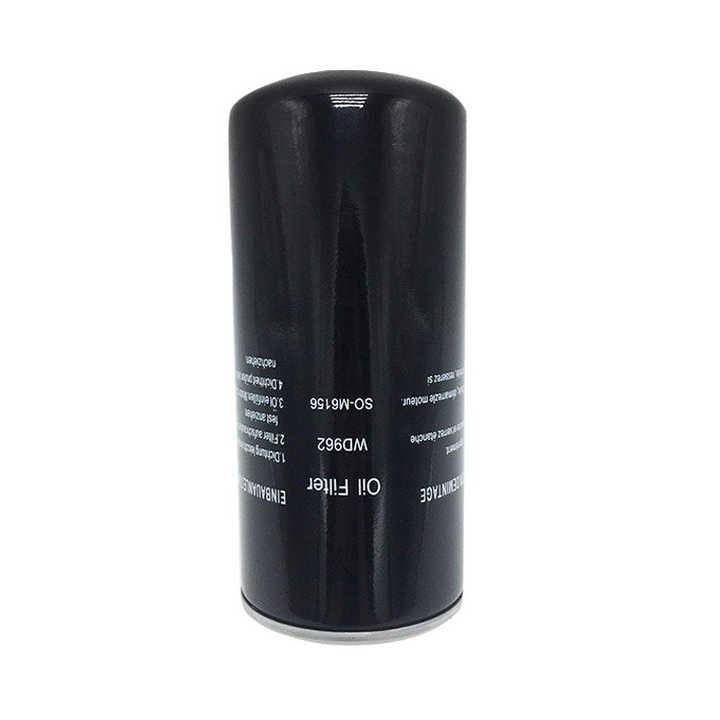

Screw Air Compressor Spare Parts Oil Filter for Air Compressor

Aivyter manufactures high-quality Screw Air Compressor Spare Parts Oil Filters. We provide reliable filters designed to enhance compressor performance and efficiency. Whether you need oil filters or other spare parts, Aivyter has you covered. Contact us today!
Availability:
Quantity:

Product Specification


Parameter Value
Material Filter paper, Polyure, rubber, metal meshes, aluminum alloy cover, etc.
Filtration Efficiency 98%
Weight 0.3 kg
Working Hours 2000 h
Precision Filtering 5 μm ~ 10 μm
Max Working Temperature 100 ℃
Application Air compressor
Residual Oil Rate 1-3 mg/m³
Initial Pressure Difference 0.17-0.2 bar
Size 93 × 93 × 213 mm
MOQ 1 pcs
Payment Methods L/C, T/T, Western Union
Delivery Time 7 ~ 25 days


The Screw Air Compressor Spare Parts Oil Filter by Aivyter.

This oil filter is for air compressors. It uses filter paper, polyurethane, rubber, metal meshes, and an aluminum alloy cover.

The filtration efficiency is 98%. It filters particles sized 5μm to 10μm.

Residual oil rate is 1-3 mg per cubic meter. Initial pressure difference ranges from 0.17 to 0.2 bar.

The filter works up to 2000 hours. Maximum working temperature is 100 °C.

Its size is 93 mm × 93 mm × 213 mm. The weight is 0.3 kg.

Minimum order quantity is 1 piece. Payment methods are L/C, T/T, and Western Union.

Delivery time is between 7 and 25 days.



Product Details


Aivyter's Air Compressor Spare Parts Oil Filter is equipped with some notable features. Being highly durable and efficient, it performs optimally by sieving out dirt, bearing high heat and high pressure. Ideal for ensuring your screw air compressor operates reliably and safely without any risk.



  • New Filter Paper: Filters 10 to 15 μm particles in screw air compressors. Avoids blockages in the oil system and overheating of the unit.

  • Large Flow and Impurity Filtration: Filters impurities while enabling high oil flow to the system.

  • High-Purity Nitrile Rubber Ring: Non-stick at a maximum temperature of 130 degrees centigrade does not age or change shape.

  • High-Strength Central Tube: Made from 0.5 mm thick steel with an extrusion strength of 1 MPa. It is unethical for the tube to change its shape.

  • Thickened Threaded Cover: Couplings of this type will withstand pressure of up to 20 MPa.

  • High-Pressure Housing: Consisting of a steel shell 0.8mm thick that can withstand 20MPa pressure ensuring its durability.



The Advantages of Our Air Compressor Spare Parts Oil Filter


Maximize performance with Aivyter's Air Compressor Spare Parts Oil Filter. Engineered for efficiency, it offers low resistance, high flow, and durable materials. Reduce oil loss, enhance air quality, and extend service life while minimizing maintenance costs. Perfect for reliable compressor operation.

  • Low Resistance and High Flow: Minimal filter resistance allows large flux and strong dirt interception, extending service life.

  • High-Cleanliness Filter Material: Uses filter elements with high cleanliness for effective filtration.

  • Reduces Lubricating Oil Loss: Decreases oil consumption and improves compressed air quality.

  • High Strength and Temperature Resistance: Withstands high temperatures without deformation.

  • Extended Service Life: Longer lifespan reduces downtime and machine costs.

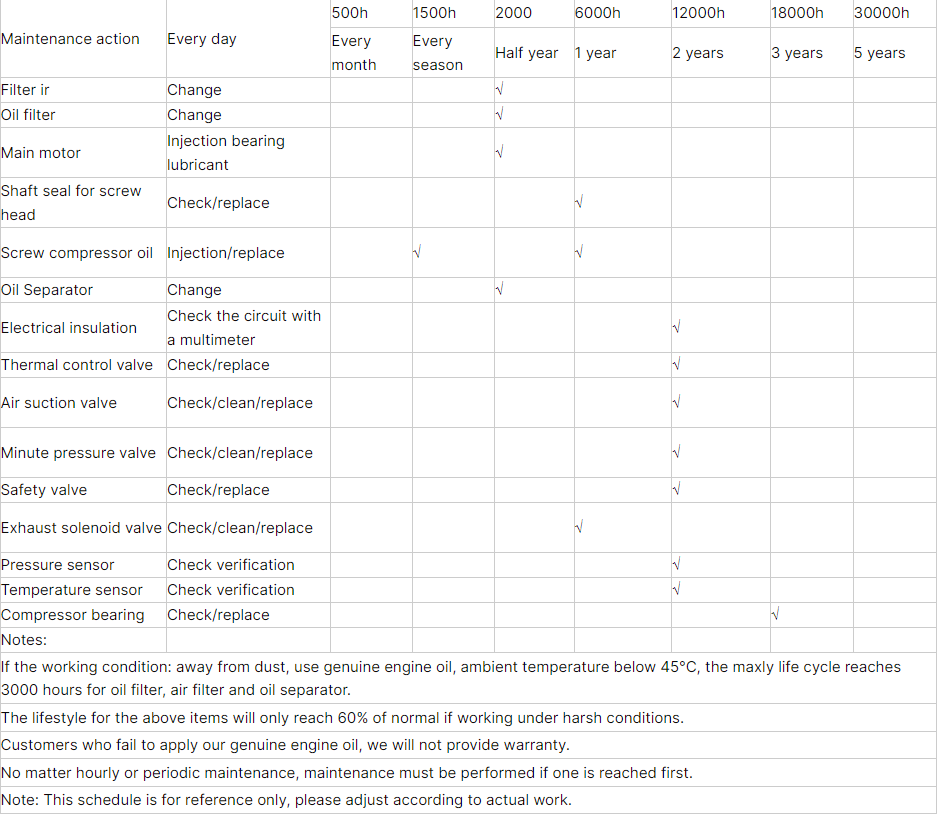

Product Technology
