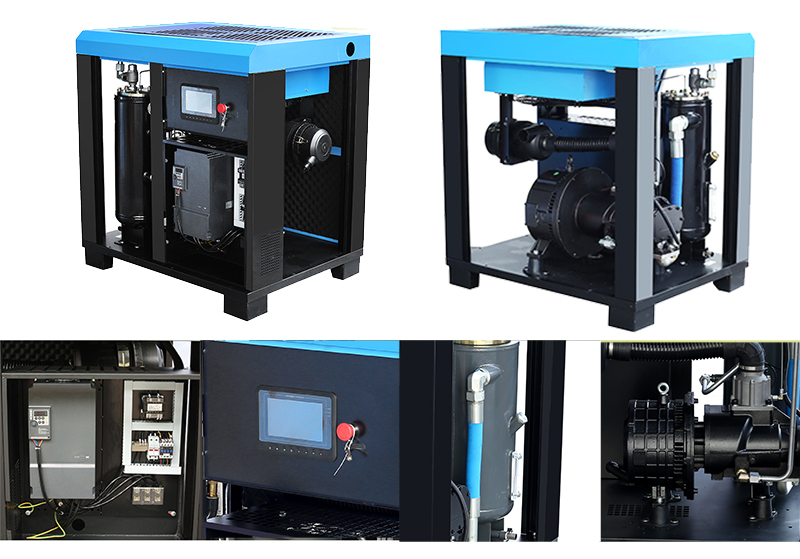

Product Name: 55kw pm vsd screw air compressor
Type: Oil-injected/lubricated
Power Range: 55kW/75Hp
Air Flow Range: 7.6m3/min - 10.0m3/min
Pressure Range: 7bar - 12bar
Cooling System: Air Cooling or Water Cooling
Power Source: AC Power 380V/3P/50HZ, can be customied.
Structure Type: Closed Type
Trademark: aivyter , OEM
Color:according to your needs
Certificate: CE, SGS...
Min. Order: 1 piece
Lead Time:7~30 Day
Warranty: One Year
Transport Package: Wooden box
Trade term: CIF, CFR, FOB..
Availability: | |
---|---|
Quantity: | |
SGPM 55
Factory Price 55KW 75HP Energy Saving Inverter Single Screw Compressor
Powerful Performance for Efficient Operations
Our 55kW 75Hp Energy Saving Inverter Single Screw Air Compressor is designed to deliver exceptional performance for various industrial applications. With its powerful motor and advanced inverter technology, this compressor ensures efficient operations and optimal energy savings. Whether you require a reliable air supply for manufacturing processes, construction sites, or other demanding environments, our compressor is built to meet your needs.
Advanced Features for Enhanced Productivity
Featuring cutting-edge technology, our air compressor offers a range of advanced features to enhance productivity. The energy-saving inverter allows for precise control of motor speed, ensuring that the compressor operates at the optimal level at all times. This results in reduced energy consumption, lower operating costs, and increased overall efficiency. Additionally, the single screw design ensures smooth and quiet operation, minimizing disruptions in your work environment.
High-quality manufactured, energy-efficient, oil-lubricated screw air compressors ensure maximum uptime and energy efficiency, helping you achieve your sustainability goals. Aivyter's air compressors are backed by industry-leading warranty coverage and a 48-hour uptime guarantee for complete peace of mind.
Product Parameter:
Model | SGPM 55 | Discharge Pressure(Mpa) | 0.7 / 0.8 /1.0 /1.2 |
Air Delivery(m³/min) | 10/9.6/8.5/7.6 | Power(kW) | 55 |
Lubricant(L) | 65 | Drive Method | Variable frequency starting |
Cooling | Air | Discharge Temperature(℃) | ≤Ambient temperature±15℃ |
Electricity(V/Hz) | 380V/50Hz(customizable) | Weight(kg) | 1230 |
Dimension(mm) | 1800*1280*1670mm | Air Outlet Pipe Diameter(inch/mm) | G2'' |
Energy saving and high work efficiency
1. The maximum output power of the permanent magnet screw air compressor at full load is the minimum free air transport energy consumption. Maximum when load is less than 20%. Automatic air compressor adjustment saves 30% energy
2. Our air compressor always maintains 95% working efficiency at different air volume adjustment speeds.
3. The air compressor adopts variable frequency design, which can effectively control the pressure limit. When the upper and lower limits differ greatly, a lot of power is wasted. In order to avoid the impact of frequent starts on the air compressor and the power grid, a smaller pressure limit range should be set, with a minimum of 1. The pressure of traditional fixed frequency air compressor is 1bar. When multiple machines are used at the same time, different pressure ranges are required, so the overall pressure range will be wider. Our variable frequency series air compressor is a variable speed air compressor. Just set a pressure point instead of a pressure limit range and you can start and stop an unlimited number of times. Every 0.14bar of pressure is equivalent to 5% to 7% of electricity.
Fewer connections and direct drives
The number of connections of the permanent magnet screw air compressor is less than that of other air compressors of the same level. It features direct drive, so working parts such as gears, wheels, belts, couplings, etc. do not wear out.
Unique structure, wide adjustment range
The permanent magnet screw air compressor has a unique permanent magnet structure, which can compress more air with less electricity and expand the air capacity range. Therefore, compared with industrial frequency air compressors, this model of our company's air compressor can save 15% to 38% of electricity; compared with ordinary variable frequency air compressors, it can save 5% to 10% of electricity. The greater the change in air volume, the lower the electricity bill.
Integrated shaft structure
Both the permanent magnet motor and the air compressor host adopt an embedded structure and are directly connected with the overall structure. Not only is the structure compact, but transmission components such as belts, gears, and couplings are eliminated, resulting in a transmission efficiency of 100% and zero transmission loss.
permanent magnet motor
1. Equipped with high-efficiency permanent magnet motor (PM motor). Compared with other ordinary motors, our permanent magnet motors have excellent energy-saving performance. At the same time, high working efficiency can be maintained even at lower speeds.
2. Permanent magnet motors have higher working efficiency and better energy-saving performance than ordinary motors, regardless of rated speed or other speeds.
3. Since our permanent magnet motor adopts an integrated structure, it is small in size, generally one-third of the traditional high-frequency motor. At the same time, it effectively saves space and provides convenience for disassembly.
aivyter is an industrial air compressor manufacturer that mainly provides screw air compressors. In addition to permanent magnet screw compressors, we also offer integrated combination air compressors and diesel mobile air compressors. We offer quality Screw Air Compressor and Compressor Parts to our clients.
Product parameters
Technical Data of Permanent Magnet Variable Frequency Screw Air Compressor
Model | Motor Power | Working Pressure | Capacity | Lubricated Oil Quantity (L) | Noise dB(A) | Dimension (mm) | Net Weight | Air Outlet | ||||
kW/hp | psi | bar | cfm | m3/min | L*W*H | KGS | ||||||
SGPM08 | 7.5/10 | 102 | 7 | 42.40 | 1.20 | 10 | 66±2 | 900*640*850 | 130 | 1/2’’ | ||
116 | 8 | 38.80 | 1.10 | |||||||||
145 | 10 | 33.50 | 0.95 | |||||||||
174 | 12 | 28.30 | 0.80 | |||||||||
SGPM11 | 11/15 | 102 | 7 | 58.30 | 1.65 | 18 | 68±2 | 1000*750*1023 | 200 | 3/4’’ | ||
116 | 8 | 53.00 | 1.50 | |||||||||
145 | 10 | 45.90 | 1.30 | |||||||||
174 | 12 | 38.80 | 1.10 | |||||||||
SGPM15 | 15/20 | 102 | 7 | 88.30 | 2.50 | 18 | 68±2 | 1000*750*1023 | 210 | 3/4’’ | ||
116 | 8 | 81.20 | 2.30 | |||||||||
145 | 10 | 74.20 | 2.10 | |||||||||
174 | 12 | 67.10 | 1.90 | |||||||||
SGPM18 | 18.5/25 | 102 | 7 | 113.00 | 3.20 | 18 | 68±2 | 1100*850*1200 | 300 | 1’’ | ||
116 | 8 | 105.90 | 3.00 | |||||||||
145 | 10 | 95.30 | 2.70 | |||||||||
174 | 12 | 84.70 | 2.40 | |||||||||
SGPM22 | 22/30 | 100 | 7 | 134.20 | 3.80 | 18 | 68±2 | 1100*850*1200 | 300 | 1’’ | ||
116 | 8 | 127.10 | 3.60 | |||||||||
145 | 10 | 113.00 | 3.20 | |||||||||
174 | 12 | 95.30 | 2.70 | |||||||||
SGPM30 | 30/40 | 102 | 7 | 187.10 | 5.30 | 18 | 68±2 | 1100*850*1200 | 340 | 1’’ | ||
116 | 8 | 176.60 | 5.00 | |||||||||
145 | 10 | 158.90 | 4.50 | |||||||||
174 | 12 | 141.20 | 4.00 | |||||||||
SGPM37 | 37/50 | 102 | 7 | 240.10 | 6.80 | 30 | 68±2 | 1250*1000*1345 | 430 | 11/2" | ||
116 | 8 | 218.90 | 6.20 | |||||||||
145 | 10 | 197.70 | 5.60 | |||||||||
174 | 12 | 176.60 | 5.00 | |||||||||
SGPM45 | 45/60 | 102 | 7 | 261.30 | 7.40 | 30 | 72±2 | 1250*1000*1345 | 430 | 11/2" | ||
116 | 8 | 247.20 | 7.00 | |||||||||
145 | 10 | 218.90 | 6.20 | |||||||||
174 | 12 | 197.70 | 5.60 | |||||||||
SGPM55 | 55/75 | 102 | 7 | 353.10 | 10.00 | 65 | 72±2 | 1700*1200*1630 | 820 | 2" | ||
116 | 8 | 339.00 | 9.60 | |||||||||
145 | 10 | 300.10 | 8.50 | |||||||||
174 | 12 | 268.40 | 7.60 | |||||||||
SGPM75 | 75/100 | 102 | 7 | 473.20 | 13.40 | 65 | 72±2 | 1700*1200*1630 | 950 | 2" | ||
116 | 8 | 444.90 | 12.60 | |||||||||
145 | 10 | 395.50 | 11.20 | |||||||||
174 | 12 | 353.10 | 10.00 | |||||||||
SGPM90 | 90/120 | 102 | 7 | 572.00 | 16.20 | 72 | 72±2 | 1700*1200*1630 | 950 | 2" | ||
116 | 8 | 529.70 | 15.00 | |||||||||
145 | 10 | 487.30 | 13.80 | |||||||||
174 | 12 | 434.30 | 12.30 | |||||||||
SGPM110 | 110/150 | 102 | 7 | 741.50 | 21.00 | 90 | 72±2 | 2300*1470*1840 | 1500 | DN85 | ||
116 | 8 | 699.10 | 19.80 | |||||||||
145 | 10 | 614.40 | 17.40 | |||||||||
174 | 12 | 522.60 | 14.80 | |||||||||
SGPM132 | 132/175 | 102 | 7 | 865.10 | 24.50 | 90 | 75±2 | 2300*1470*1840 | 2000 | DN85 | ||
116 | 8 | 819.20 | 23.20 | |||||||||
145 | 10 | 723.90 | 20.50 | |||||||||
174 | 12 | 614.40 | 17.40 | |||||||||
SGPM160 | 160/200 | 102 | 7 | 1013.40 | 28.70 | 110 | 75±2 | 2500*1470*1840 | 3200 | DN85 | ||
116 | 8 | 974.60 | 27.60 | |||||||||
145 | 10 | 868.60 | 24.60 | |||||||||
174 | 12 | 759.20 | 21.50 | |||||||||
SGPM185 | 185/250 | 102 | 7 | 1129.90 | 32.00 | 110 | 75±2 | 2500*1470*1840 | 3200 | DN85 | ||
116 | 8 | 1073.40 | 30.40 | |||||||||
145 | 10 | 967.50 | 27.40 | |||||||||
174 | 12 | 875.70 | 24.80 | |||||||||
SGPM220 | 220/300 | 102 | 7 | 1468.90 | 41.6 | 170 | 75±2 | 3250*2100*2190 | 4200 | DN100 | ||
116 | 8 | 1465.37 | 41.5 | |||||||||
145 | 10 | 1066.36 | 30.2 | |||||||||
174 | 12 | 1020.46 | 28.9 | |||||||||
SGPM250 | 250/350 | 102 | 7 | 1553.64 | 44.0 | 170 | 75±2 | 3250*2100*2190 | 4300 | DN100 | ||
116 | 8 | 1550.11 | 43.9 | |||||||||
145 | 10 | 1458.30 | 41.3 | |||||||||
174 | 12 | 1020.46 | 28.9 |
After Sales Service
Before sale
Professional online salesman can solve compressor system problems for you.
Provide free air compressor energy saving solutions to help you save operating costs.
After sale
Online professional after-sales service Online professional after-sales service until the problem is solved.
After commissioning, the warranty is 1 year or the delivery date is 16 months, which depends on the first warranty of the whole machine (except repair consumables).
The number of spare parts is sufficient to ensure good after-sales service.
FAQ:
Q1: What is the rotor speed of the main engine?
A1: 2980rmp.
Q2: What is your delivery time?
A2: Usually, 5-7 days. (OEM order: 15 days)
Q3: Can you provide water-cooled air compressors?
A3: Yes, we can (usually air-cooled).
Q4: What is the payment deadline?
A4: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or according to your requirements.
Q6: What is your air compressor warranty?
A6: One year for the whole machine (excluding consumable spare parts), technical support can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24-hour online support, 48-hour problem solving commitment.
Q9: Do you have spare parts?
A9: Yes, we have.
Q10: What is the initial lubricant you use on the air compressor?
A10: A total of 46# mineral oil.
