Top-Rated Underground Mining Drill Rigs for 2026: How to Choose the Right Model

Mining operations face intense financial and operational pressure heading into 2026. Stricter safety standards, rising labor overheads, and fluctuating ore prices force mine managers to examine every operational detail. Achieving a low cost-per-meter during blast hole drilling is no longer optional—it is critical for survival.

To remain profitable, mine managers must select equipment that optimizes cycle times, limits energy waste, and reduces unexpected downtime. Choosing the right machinery requires a solid understanding of structural engineering, rock mechanics, and technical advancements.

As a specialized mining machinery manufacturer in China since 2009, Aivyter brings over 15 years of heavy equipment expertise to the industry. Operating from a modern 10,000+ square meter manufacturing base, Aivyter assists global mine operators in selecting, customizing, and maintaining machinery built for harsh subterranean conditions.

Core Technology Trends in Underground Mining Drill Rigs for 2026

Subterranean excavation technology has evolved rapidly. Modern operations require machines that combine mechanical strength with real-time digital feedback.

Electro-Hydraulic Efficiency

Modern hard rock mining relies heavily on advanced fluid power. A high-efficiency hydraulic underground drill rig converts electric energy into impact power with minimal heat loss. Purely pneumatic setups are fading out due to high power consumption. Modern electro-hydraulic systems deliver faster penetration speeds while lowering overall power usage.

Modular and Multi-Functional Integration

Space inside mine drifts is always limited. Equipment that performs multiple tasks reduces traffic inside the tunnel. Modern rigs feature modular designs that allow operators to switch between face drilling, roof bolting, and cross-cut scaling without replacing the primary carrier.

Enhanced Operator Safety Standards

Subsurface safety standards are stricter than ever. Cabins now feature certified FOPS (Falling Object Protective Structure) and ROPS (Roll-Over Protective Structure) builds as standard requirements. Wireless remote-control features allow operators to manage dangerous drilling faces from a safe distance, away from unsupported ground.

Automated Anti-Jamming Systems

Stuck drill steel causes severe downtime and breaks expensive tools. Integrated anti-jamming electronics automatically adjust rotation torque and feed pressure when rock hardness changes unexpectedly. This feature extends the lifespan of drill bits and keeps operations moving continuously.

How to Choose the Right Underground Mining Drill Rig: Step-by-Step Guide

Selecting the right underground mining drill rig requires matching equipment specifications with your site’s geological features and mine plan. Below are the key steps to evaluate before purchasing.

1. Evaluate Geological Conditions and Rock Hardness

Rock hardness dictates the impact power your drifter needs. Use the Protodyakonov scale (F-value) or Unconfined Compressive Strength (UCS) ratings to categorize your rock mass:

• Soft to Medium Rock (F = 6 to 10): Requires moderate impact energy with higher rotation speed to clear debris fast.
• Hard to Extreme Hard Rock (F = 12 to 18+): Demands high-frequency hydraulic impactors, reinforced feed beams, and premium alloy drill bits.

Choosing an underpowered rig for hard rock causes excess vibration, component fatigue, and low penetration rates. Overseas buyers can consult with Aivyter engineers to select drifters specifically matched to their rock core test samples.

2. Match Tunnel Dimensions and Boom Reach

Your mine drift cross-section determines the size of the rig carrier and the reach of the boom.

• Narrow Veins and Small Cross-Sections (2m x 2m to 3.5m x 3.5m): Require a compact, single-boom underground drill jumbo with tight turning radiuses to navigate narrow corners.
• Medium to Large Tunnels (4m x 4m and above): Benefit from double-boom or multi-boom configurations. These cover large face areas in a single setup, drastically cutting down cycle times.

3. Choose the Right Power Source

Power selection directly impacts your underground ventilation costs and equipment mobility:

• Diesel-Powered Carriers: Excellent for tramming between different working faces and navigating steep inclines without cable lines.
• Electric Motor Operations: Once positioned at the work face, plugging into the mine’s electrical grid eliminates diesel fumes, lowers heat generation, and cuts down ventilation demands.

Hybrid configurations—diesel for tramming and electric power for drilling—are now the industry standard for modern subterranean operations.

4. Verify Air Compressor and Flushing Integration

Efficient hole flushing is essential to prevent re-drilling rock cuttings and jamming bits. An underground mining drill rig requires a steady air supply to cool drifter components and blow debris out of deep blast holes.

Pairing your rig with an inline air compressor guarantees correct air pressure and volume during continuous operations. Using integrated, heavy-duty screw compressors ensures stable pressure without surging.

5. Analyze Total Cost of Ownership (TCO) and OEM Availability

Purchase price is only a fraction of the total cost over a machine’s lifespan. Maintenance, spare parts pricing, and wear-plate replacements account for the rest. Buying OEM underground mining equipment directly from a source factory allows you to secure custom frame adjustments and guarantees long-term access to affordable spare parts.

Featured Equipment and Integrated Aivyter Solutions

Managing multiple equipment suppliers for drilling, air compression, and ground support increases operational hassle. Aivyter simplifies operations by delivering integrated machinery packages tailored to mine specifications.

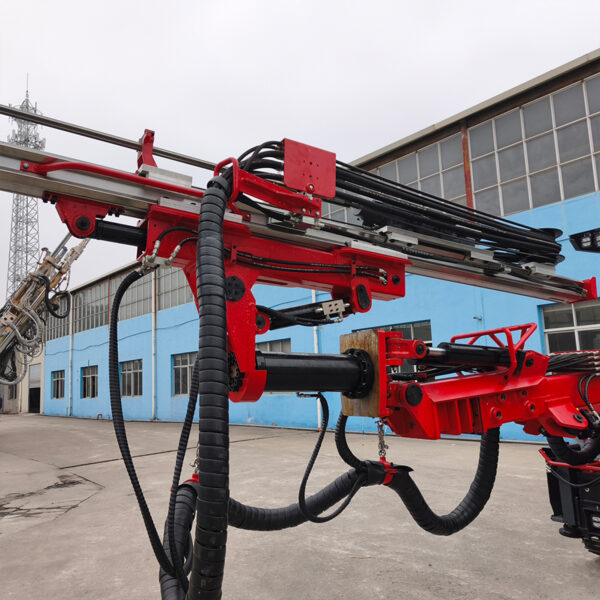

Aivyter Underground Drill Jumbo Highlights

Designed for tough underground conditions, Aivyter drill rigs deliver high durability and smooth performance:

• Compact Frame: Engineered with a tight turning radius to navigate narrow tunnels easily.
• Heavy-Duty Booms: High-strength structural steel booms provide excellent coverage with high positioning accuracy.
• Advanced Hydraulics: Optimized hydraulic circuits protect internal seals, maintain stable oil temperatures, and extend drifter lifespans.
• Operator-Focused Cabins: Ergonomic seating, intuitive joystick controls, and clear sightlines lower operator fatigue and boost safety.

Complete Underground Extraction and Support System

Aivyter provides an integrated equipment system that works seamlessly underground:

• Efficient Screw Air Compressors: Supply steady, high-pressure air for flushing holes and powering pneumatic accessories.
• Underground Mining Drill Rigs: Execute fast, accurate face drilling and bolting work.
• Wet Shotcrete Spraying Robots: Apply ground support quickly after blasting to stabilize loose rock faces.

Sourcing your complete drilling, compression, and support equipment from a single manufacturer streamlines maintenance, unifies spare parts stock, and cuts procurement costs.

Why Partner with Aivyter for Your Mining Equipment Requirements?

Selecting a machinery supplier is a long-term operational decision. Aivyter provides strong manufacturing background, practical engineering experience, and dedicated customer support.

• 15+ Years of Industry Experience: Established in 2009 in Fuzhou, China, Aivyter brings deep technical knowledge to subterranean mechanical design.
• 10,000+ Square Meter Production Facility: Advanced CNC machining centers, automated welding setups, and strict quality control protocols ensure reliable build quality.
• Full OEM / ODM Capabilities: We tailor boom lengths, chassis dimensions, drifter models, and motor voltages to match your specific site needs.
• Direct Manufacturer Pricing: Eliminating trading middleman markups allows you to direct more capital toward field operations.
• Global Logistics and Service Support: Experienced technical teams provide quick spare parts shipments, technical guidance, and reliable international support.

Frequently Asked Questions (FAQs)

Q1: What is the main difference between a general mining drill rig and an underground drill jumbo?

A1: A general mining drill rig often refers to surface production machines or down-the-hole (DTH) crawler units used in open pits. An underground drill jumbo is specifically engineered for subterranean spaces. It features a low-profile chassis, articulated steering for tight corners, multi-directional booms, and electric-hydraulic power systems designed to eliminate exhaust fumes at the face.

Q2: How do you match a screw air compressor with an underground mining drill rig?

A2: Air compressor matching depends on blast hole diameter, hole depth, and the flushing air requirements of the drifter. Deep or wide holes require higher CFM (cubic feet per minute) and working pressure to clear dense cuttings. Aivyter builds custom screw air compressors directly integrated into the rig frame or skid-mounted units to maintain correct flushing pressure under continuous duty.

Q3: Can Aivyter customize an underground mining drill rig for small-section mines?

A3: Yes. As a direct OEM underground mining equipment manufacturer, Aivyter designs compact single-boom rigs tailored for cross-sections as narrow as 2m x 2m. We adjust overall transport height, boom swing angles, and chassis width to fit your mine layout.

Q4: What makes hydraulic underground drill rig technology superior to pneumatic units?

A4: Hydraulic systems transfer power far more efficiently than compressed air lines. A hydraulic underground drill rig offers higher penetration speeds, reduces energy consumption per meter drilled, generates less operational noise, and allows precise control over impact and rotation power to match changing rock conditions.

Q5: How does Aivyter ensure long-term spare parts availability for overseas clients?

A5: Aivyter maintains a full inventory of high-wear components, drifter seal kits, feed components, and hydraulic valves at our primary factory. We supply client-specific spare parts packages alongside equipment shipments and utilize global express freight channels to dispatch emergency parts quickly, keeping downtime to a minimum.

Conclusion: Upgrade Your Underground Drilling Efficiency in 2026

Selecting the ideal underground mining drill rig requires balancing rock hardness, tunnel dimensions, power options, and long-term service support. Choosing the right machinery lowers operating expenses, protects field personnel, and keeps target schedules on track.

Aivyter delivers high-durability machinery built for demanding operations, supported by complete system packages including drill jumbos, screw air compressors, and shotcrete machinery.

Ready to upgrade your subterranean fleet or discuss OEM manufacturing options for 2026? Contact the engineering experts at Aivyter today to receive tailored technical specifications and a competitive direct-from-factory quote for your project.
